LilyGO T-SIM7600G-H R2 - ESP32-WROVER - with 18650 Battery Holder

Availability: Directly available from warehouse in Eindhoven
SKU: 005001

Based on 0 review(s) - Write a review

€64.50

Ex Tax: €53.31

10 or more €63.50

20 or more €63.00

50 or more €62.50

100 or more €62.00

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

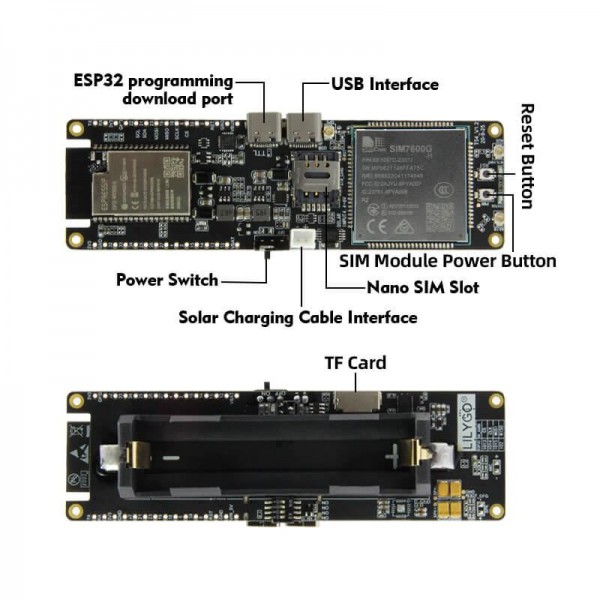

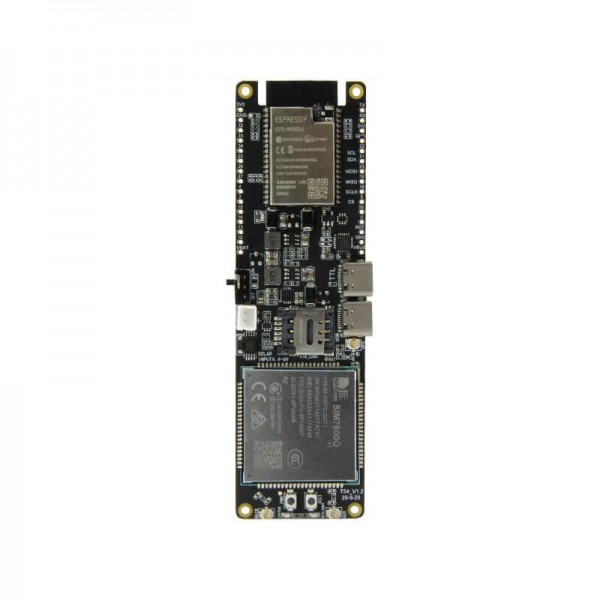

The TTGO T-SIM7600G-H R2 from LilyGO is a microcontroller based on an ESP32 with a built-in SIM7600G-H R2 Module. This means that the module has numerous wireless communication options such as GNSS (GPS), Wi-Fi, Bluetooth and LTE. The board has a USB-C connection with which it can be programmed (USB-C cable not included). The module also has an integrated 18650 battery holder (battery not included).

Note: The schematic diagram in the link below states that there is an audio CODEC (NAU8810YG) on the module. However, this is not the case.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-SIM7600G-H R2 - ESP32-WROVER - with 18650 Battery Holder

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-SIM7600G-H R2 - ESP32-WROVER - with 18650 Battery Holder , LILYGO-Q190 , With Bluetooth

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	Q190
Model revision	V1.3
Features	Battery charger Microcontroller SD-card adapter Battery holder Battery protection circuit
General physical appearance
Main color	Black
Weight [g]	34
Dimension X [mm]	111
Dimension Y [mm]	33
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	4.4 (lower possible via battery)
Maximum supply voltage [V DC]	6
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	8
Flash memory [MB]	4
EEPROM type	Emulated

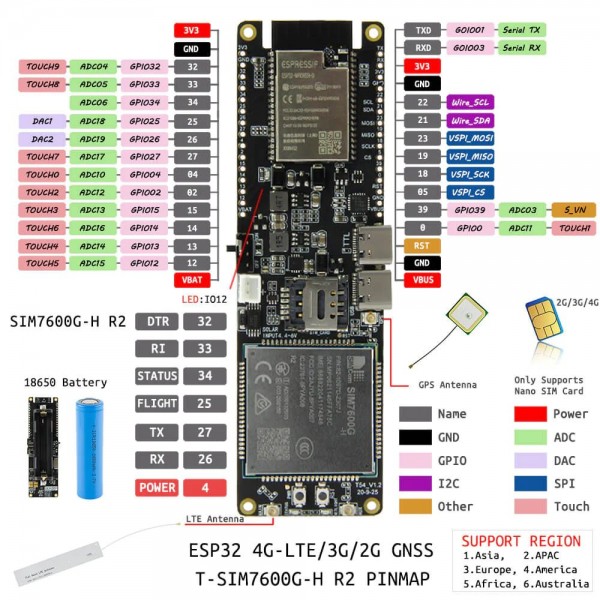

Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC
Number of IO-pins	22
Maximum available hardware PWM channels	8
Maximum available analog input pins (ADC)	14
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH9102F
Supported SD card size	Micro SD
Supported SIM card size	Nano-SIM
Wireless communication
Interface(s)	GNSS Wi-Fi Bluetooth Telecom
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
GNSS chip/SoC	SIM7600G-H
Supported GNSS systems	GPS Beidou GLONASS Galileo QZSS
Maximum GNSS position accuracy [m]	2.5
Maximum GNSS update rate [Hz]	10
Telecom chip/SoC	SIM7600G-H
Supported telecom networks	2G 3G 4G (LTE CAT 4)
Supported 2G bands	850MHz 900MHz 1800MHz 1900MHz
Supported 3G bands	B1 B2 B4 B5 B6 B8 B19
Supported 4G bands	B1 B2 B3 B4 B5 B7 B8 B12 B13 B18 B19 B20 B25 B26 B28 B34 B38 B39 B40 B41 B66
Battery circuit
Battery charger chip/SoC	CN3065
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	600
Adjustable charging current	No
Protection circuit	Yes
Safety features	Overvoltage Overcurrent Polarity Undervoltage
Undervoltage detection (UVP) [V]	2.40

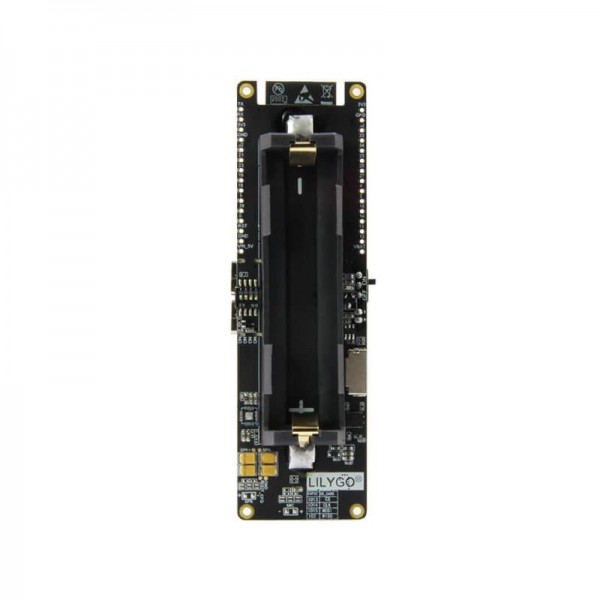

Battery holder
Suitable battery form factor	18650
Suitable anode shape	Button top Flat top
Suitable number of batteries	1
Connectors
Power supply connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Telecom antenna connector	IPEX MHF 1/uFL male
GNSS antenna connector	IPEX MHF 1/uFL male
Package contents

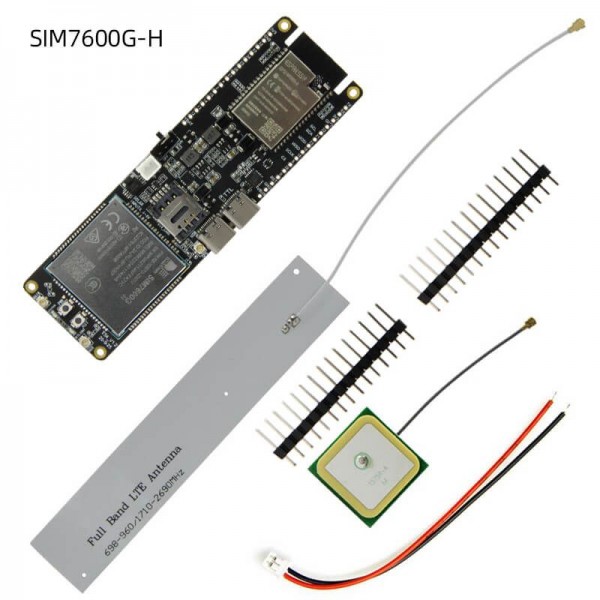

Package contents	1x T-SIM7600G-H R2 1x LTE antenna 1x GNSS antenna 1x JST-PH female cable 2x Male pin header 15p
