LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder

LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005009
Based on 0 review(s) - Write a review
€38.50
Ex Tax: €31.82
10 or more €38.25
20 or more €38.00
50 or more €37.75
100 or more €37.50
Add to Cart
Add to wishlist

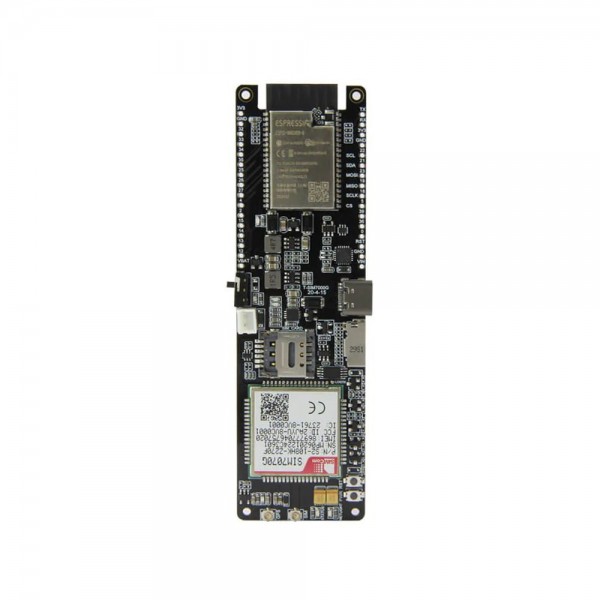

The TTGO T-SIM7070G from LilyGO is a microcontroller based on an ESP32 with a built-in SIM7070G Module. This means that the module has numerous wireless communication options such as GNSS (GPS), Wi-Fi, Bluetooth and LTE. The board has a USB-C connection with which it can be programmed (USB-C cable not included). The module also has an integrated 18650 battery holder (battery not included).

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With GPS , LilyGO TTGO T-SIM7070G - ESP32-WROVER - with 18650 Battery Holder , 005009 , LilyGO TTGO , Q323 , Battery charger , Battery holder , SD-card adapter , Microcontroller (MCU) , Battery protection circuit , I2C , I2S , PWM , ADC , DAC , SPI , GPIO , UART , USB CDC , GNSS , Wi-Fi , Telecom , Bluetooth

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU Q323
Features Battery holder
Battery charger
SD-card adapter
Microcontroller (MCU)
Battery protection circuit
General physical appearance
Main color Black
Weight [g] 30
Dimension X [mm] 111
Dimension Y [mm] 33
Mounting options Mounting hole(s)
Form factor Module (general)
T-SIM layout/shield
General electrical properties
Minimum supply voltage [V DC] 4.4
(lower possible via battery)
Maximum supply voltage [V DC] 6
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 8
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Number of IO-pins 24
Maximum available hardware PWM channels 16
Maximum available analog input pins (ADC) 16
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter CH9102F
Supported SD card size Micro SD
Supported SIM card size Nano-SIM
Wireless communication
Interface(s) GNSS
Wi-Fi
Telecom
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
GNSS chip/SoC SIM7070G
Supported GNSS systems GPS
Beidou
Galileo
GLONASS
Maximum GNSS position accuracy [m] 0.4
Maximum GNSS update rate [Hz] 1
Telecom chip/SoC SIM7070G
Supported telecom networks LTE CAT M1
NB-IoT (LTE CAT NB2)
2G
Supported 2G bands 850MHz
900MHz
1800MHz
1900MHz
Supported NB-IoT bands B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B71, B85
Supported CAT M bands B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85
Battery circuit
Battery charger chip/SoC CN3065
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 600
Adjustable charging current No
Protection circuit Yes
Safety features Polarity
Overcurrent
Overvoltage
Undervoltage
Undervoltage detection (UVP) [V] 2.40

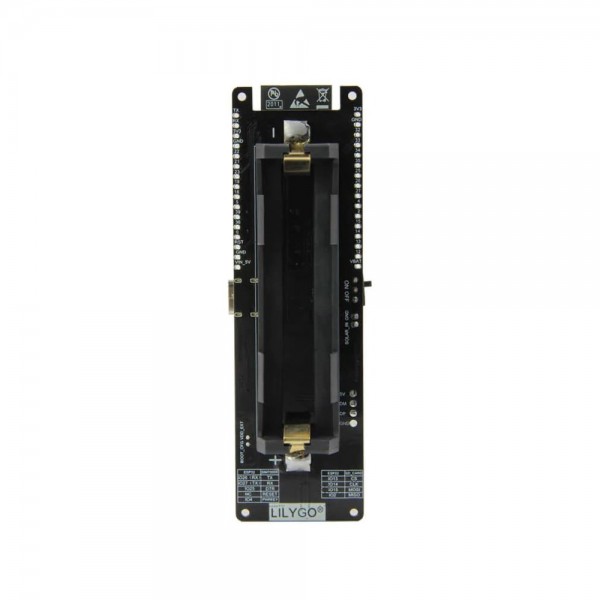

Battery holder
Suitable battery form factor 18650
Suitable anode shape Flat top
Button top
Suitable number of batteries 1
Connectors
Power supply connector(s) USB-C female
JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Telecom antenna connector IPEX MHF 1/uFL male
GNSS antenna connector IPEX MHF 1/uFL male
Package contents

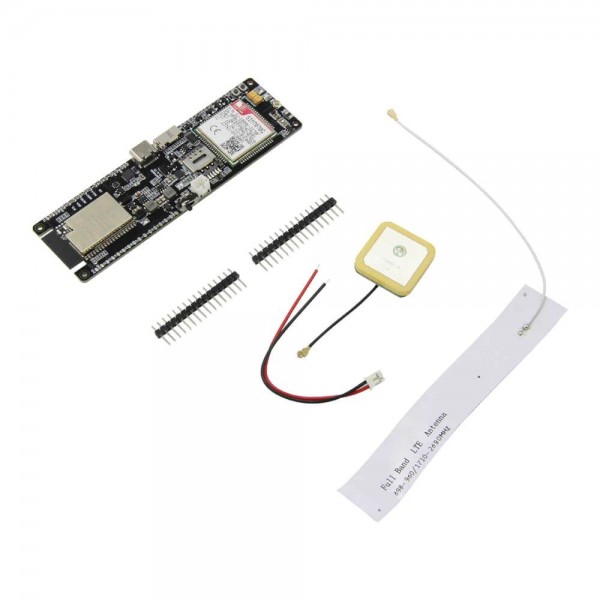

Package contents 1x T-SIM7070G
1x LTE antenna
1x GPS antenna
1x JST-PH female cable
2x Male pin header 16p
