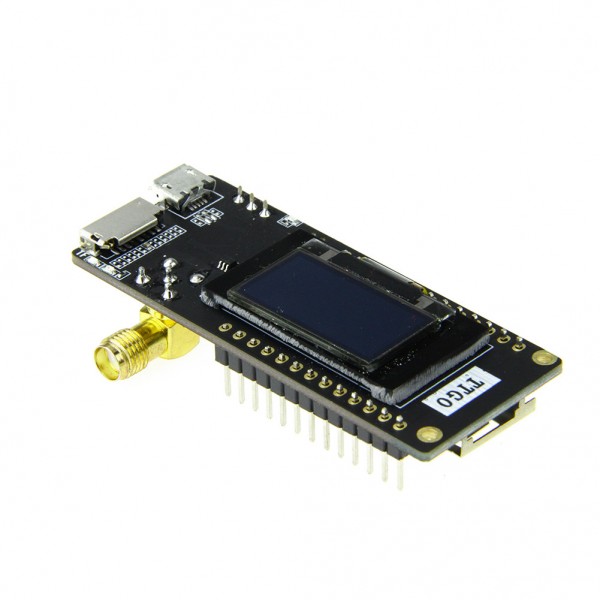

LilyGO TTGO T3 LoRa32 868MHz V1.6.1 ESP32

The TTGO T3 LoRa32 from LilyGO is a microcontroller based on an ESP32 with a built-in SX1276 LoRa chip and a 0.96 inch OLED display. The USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

Specifications:

• Supply voltage: 3.3V DC or 5V DC
• GPIO Voltage: 3.3V*
• ESP32-PICO-D4 chip (240MHz dual core processor)
• SRAM: 520KB
• Flash memory: 4MB
• Built-in Wi-Fi
• Built-in Bluetooth
• SX1276 LoRa chip
• LoRa frequency: 868MHz

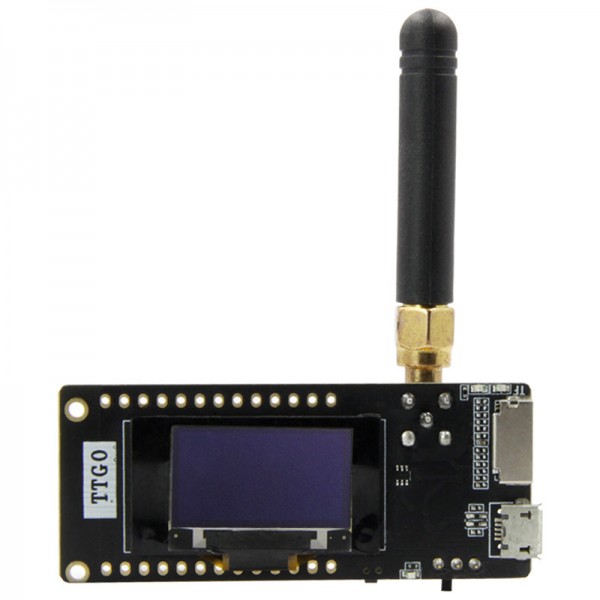

• Built-in 0.96 inch (128x64) OLED display (SSD1306)
• USB to serial converter: CP2102 or CH9102F (drivers)
• Built-in Li-ion/Li-Po battery charging circuit: TP4054 chip can charge up to 500mA
• Built-in micro SD card connection
• Built in on/off switch
• Battery connector: 2p Molex Picoblade

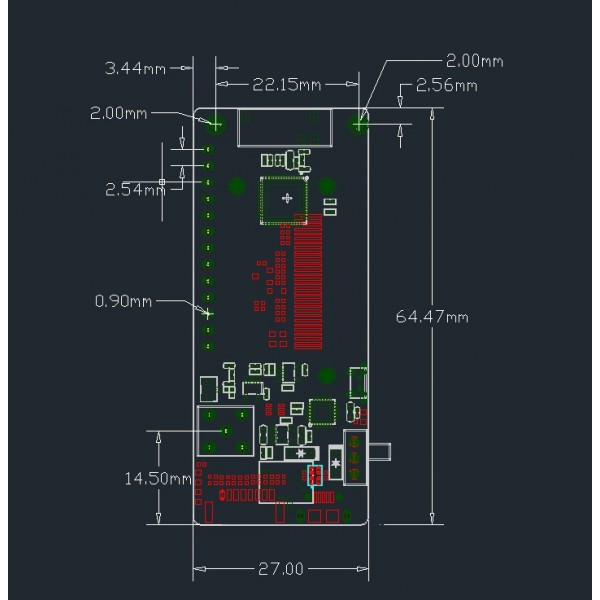

• PCB dimensions: 64.5 x 27.0 mm

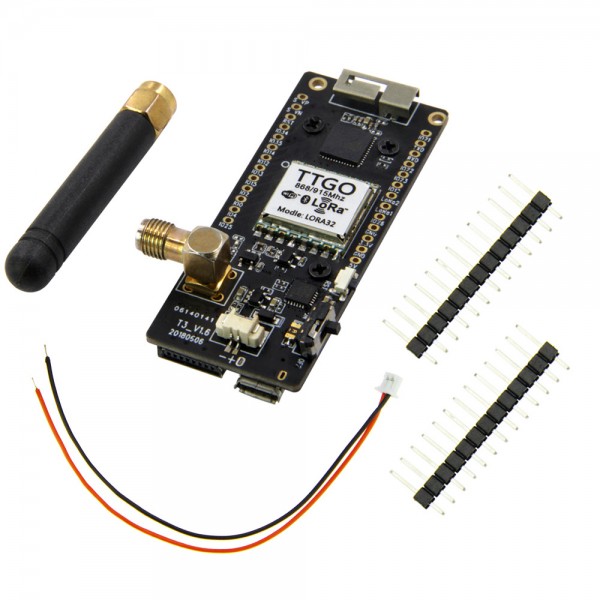

Package contents:

• 1x LilyGO TTGO T3 LoRa32 868MHz V1.6.1 board
• 1x LoRa SMA antenna 868MHz
• 1x Battery cable:  2p Molex Picoblade
• 1x Male header set

For more information and to get started with the board, see the following page: TTGO LoRa Series

To program the board with the Arduino IDE select the 'ESP32 Dev Module' in the board manager.

This module comes preprogrammed as either a transmitter or a receiver. Both versions have identical hardware and can therefore also be programmed as both transmitter and receiver.

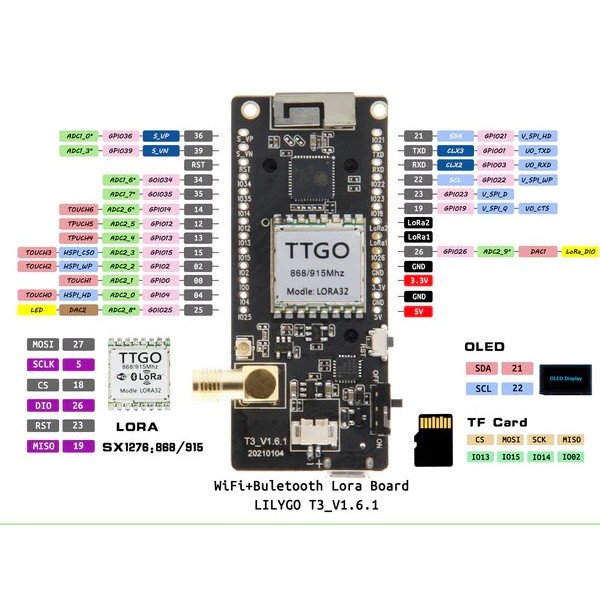

*Note: The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
