LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black

LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005882
Based on 0 review(s) - Write a review
€69.75
Ex Tax: €57.64
Add to Cart
Add to wishlist

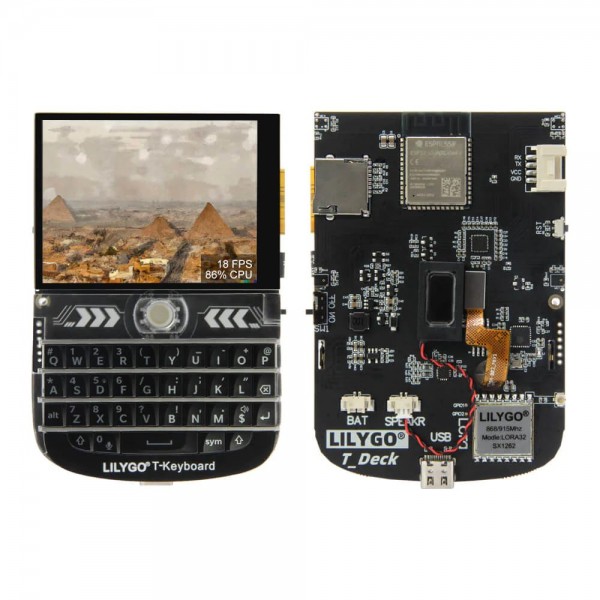

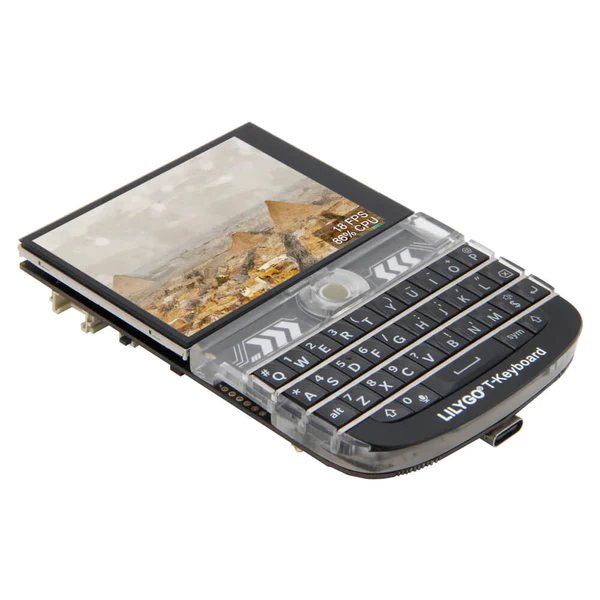

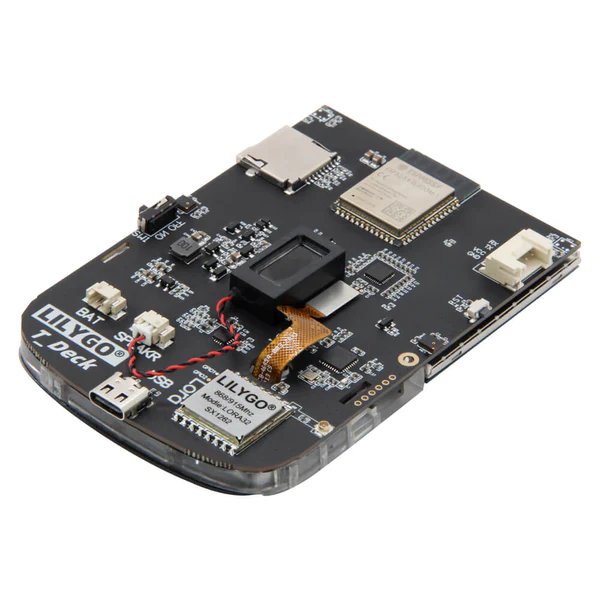

T-Deck is a development board based on an ESP32-S3 microcontroller. The keyboard and LoRaWi-Fi/Bluetooth connectivity make it very suitable for sending messages wirelessly.

Note: Unlike most Grove products, the Grove connector on the T-Deck has a voltage of 3.3V instead of 5V.

Note: The keyboard's print may differ slightly from the photos.

See the following page for more information: GitHub

Please login or register to review
Tags: Microcontroller Boards , With LoRa , LilyGO T-Deck ESP32-S3 Keyboard - with 2.8 inch IPS Display and Touchscreen - LoRa 868MHz - Black , 005882 , LilyGO TTGO , H623 , Battery charger , Display , Microcontroller (MCU) , Touchscreen , SD-card adapter , Audio amplifier , Microphone , Speaker/buzzer , Keyboad/keypad , Programmable button(s) , Track ball , I2C , I2S , Native USB , UART , PWM , GPIO , USB CDC , Wi-Fi , Bluetooth , LoRa

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU H623
Features Display
Microphone
Track ball
Touchscreen
Keyboad/keypad
Speaker/buzzer
Audio amplifier
Battery charger
SD-card adapter
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Black
Weight [g] 67
Dimension X [mm] 99
Dimension Y [mm] 68
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 8
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) I2C
I2S
PWM
GPIO
UART
USB CDC
Native USB
Number of IO-pins 2
Maximum available hardware PWM channels 2
Maximum available analog input pins (ADC) 0
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 0
USB to serial converter Integrated into microcontroller
Supported SD card size Micro SD
Wireless communication
Interface(s) LoRa
Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
LoRa chip/SoC SX1262
LoRa frequency [MHz] 868
Display
Type TFT
Driver ST7789
Screen diagonal [inch] 2.8
Number of pixels long side 320
Number of pixels short side 240
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touchscreen controller GT911
Touch type Capacitive
Sound sensor
Sensor (chip(s)) ES7210
MSM381A3729H9CP
Type Microphone
Audio amplifier
Amplifier chip MAX98357
Number of (normal) channels 1
Speaker
Speaker type Standard
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 36
Battery circuit
Battery charger chip/SoC TP4065
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 500
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
IO-connector(s) USB-C female
HY2.0 (Grove) male
Battery connector(s) Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
LoRa antenna connector IPEX MHF 1/uFL male

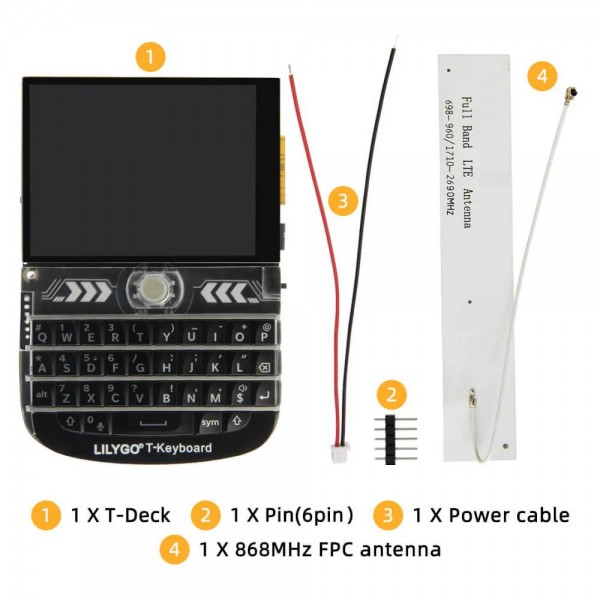

Package contents
Package contents 1x T-Deck
1x LoRa antenna
1x Battery cable
1x Male pin header 6p
