LilyGO LoRa32 868MHz V1.3 - ESP32 - SX1276 - 0.96 inch OLED Display

Availability: Directly available from warehouse in Eindhoven
SKU: 006259

Based on 0 review(s) - Write a review

€20.00

Ex Tax: €16.53

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

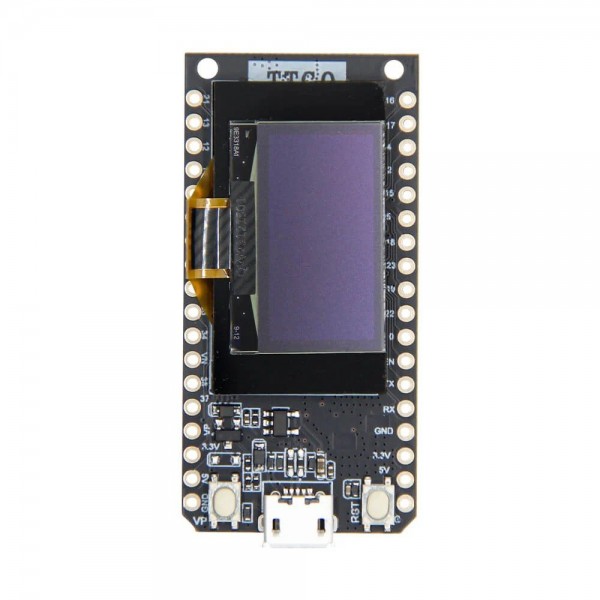

The TTGO LoRa32 from LilyGO is a microcontroller based on an ESP32 with a built-in LoRa chip and an OLED display. The USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO LoRa32 868MHz V1.3 - ESP32 - SX1276 - 0.96 inch OLED Display

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO LoRa32 868MHz V1.3 - ESP32 - SX1276 - 0.96 inch OLED Display , LILYGO-Q310 , With Wi-Fi

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	Q310
Model revision	V1.3
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Battery charger Display Microcontroller Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	7

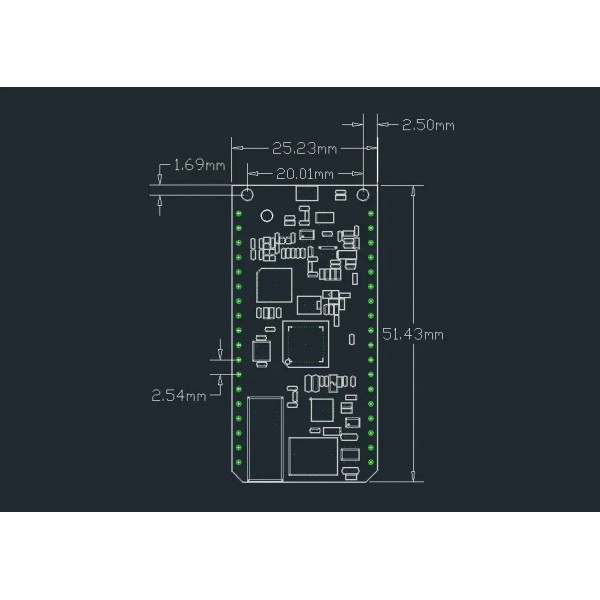

Dimension X [mm]	52
Dimension Y [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC
Number of IO-pins	28
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	17
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CH9102F
Wireless communication
Interface(s)	Wi-Fi Bluetooth LoRa
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
LoRa chip/SoC	SX1276
LoRa frequency [MHz]	868
Display
Type	OLED
Driver	SSD1306
Screen diagonal [inch]	0.96
Number of pixels long side	128
Number of pixels short side	64
Display shape	Rectangular
Pixel colors	White
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Micro USB female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Micro USB female
Battery connector(s)	Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
LoRa antenna connector	IPEX MHF 1/uFL male
Package contents

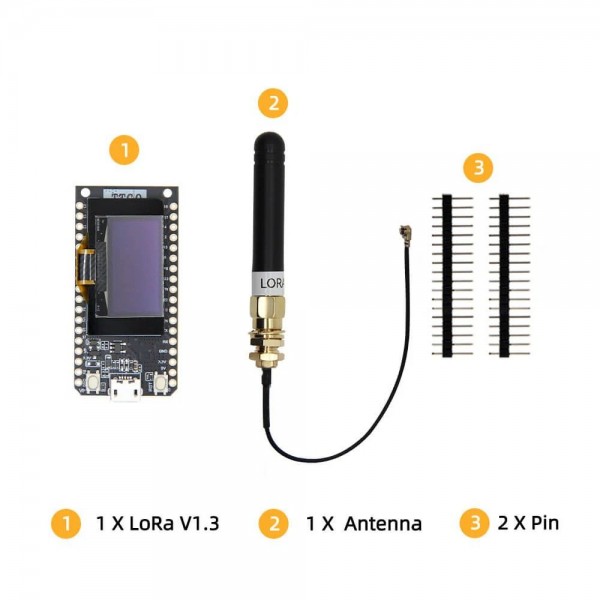

Package contents	1x LoRa32 V1.3 1x LoRa antenna - SMA 1x uFL to SMA adapter cable 1x Battery cable 2x Male pin header 18p
