Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz

Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz
Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz
Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz
Discontinued
Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz
Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz
Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz
Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz
  • Availability: Discontinued
  • SKU: 006067
Based on 0 review(s) - Write a review
€22.50
Ex Tax: €18.60
10 or more €22.25
20 or more €22.00
50 or more €21.75
100 or more €21.50
Add to Cart
Add to wishlist

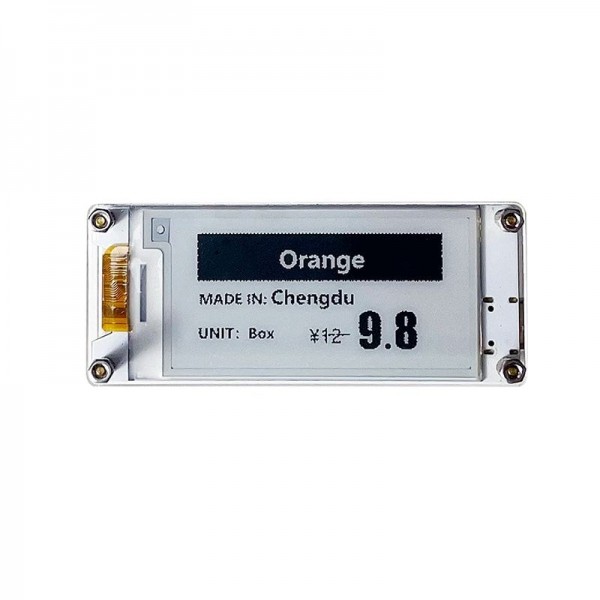

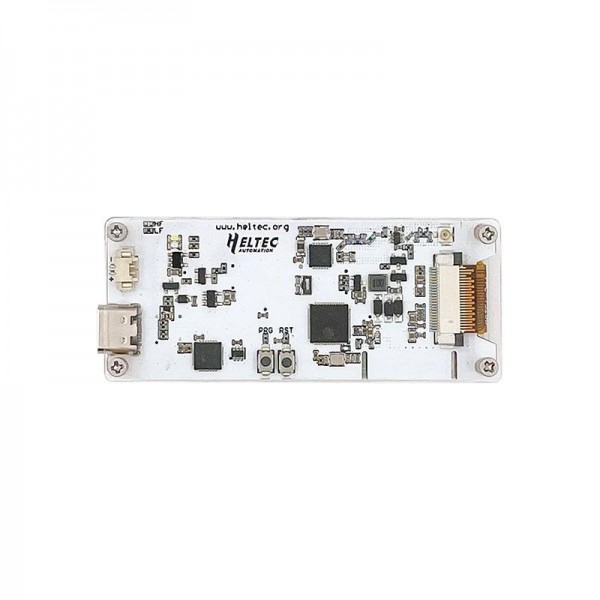

The Wireless Paper from Heltec is based on an ESP32-S3 microcontroller with an E-paper/E-ink screen. The USB to serial converter makes it easy to program, also like an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included).

See the following page for more information: Manufacturer page

Please login or register to review
Tags: Microcontroller Boards , With LoRa , Heltec Wireless Paper 2.13 inch E-ink Display V1.1 - ESP32-S3 - SX1262 LoRa 868MHz , 006067 , Heltec , Wireless Paper-HF , Battery charger , Display , Microcontroller (MCU) , Programmable button(s) , USB CDC , Wi-Fi , Bluetooth , LoRa

Specifications

General
Brand Heltec
Minimum operating humidity [%R.H.] 35
Maximum operating humidity [%R.H.] 70
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 50
Features Display
Battery charger
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color White
Weight [g] 13
Dimension X [mm] 72
Dimension Y [mm] 30
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.3
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 0
Flash memory [MB] 8
EEPROM type Emulated
Communication
Hardware interface(s) USB CDC
Number of IO-pins 0
USB to serial converter CP2102
Wireless communication
Interface(s) LoRa
Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
LoRa chip/SoC SX1262
LoRa frequency [MHz] 868
Display
Type E-paper
Driver JD79656
Screen diagonal [inch] 2.13
Number of pixels long side 250
Number of pixels short side 122
Display shape Rectangular
Pixel colors Black
White
Battery circuit
Battery charger chip/SoC TP4054
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 500
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
IO-connector(s) USB-C female
Battery connector(s) Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
LoRa antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x Wireless paper
1x Battery cable
1x LoRa antenna SMA
1x IPEX to SMA adapter cable

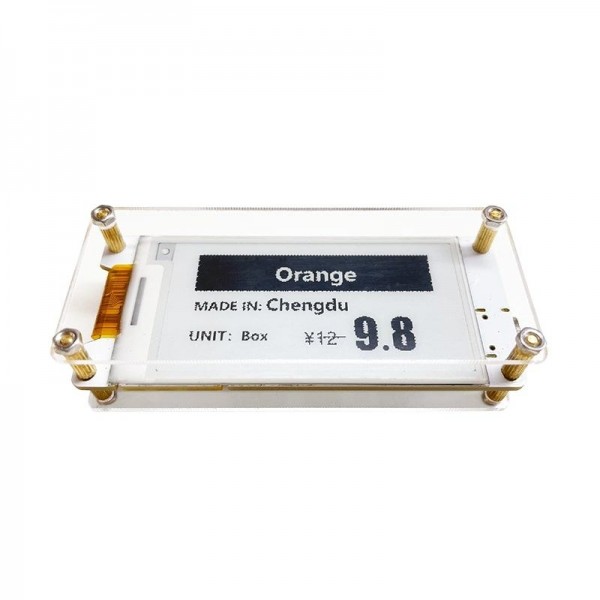

2x Acrylic protection plate
4x Spacer M2x6mm
4x Spacer M2x3mm
4x Bolt M2
4x Nut M2
