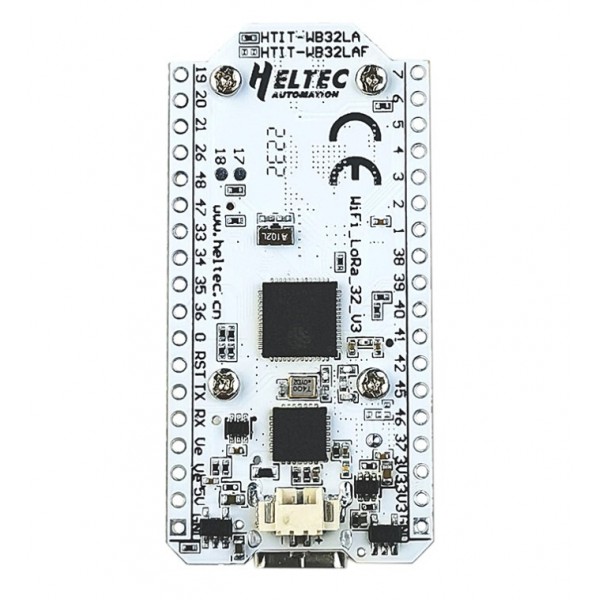

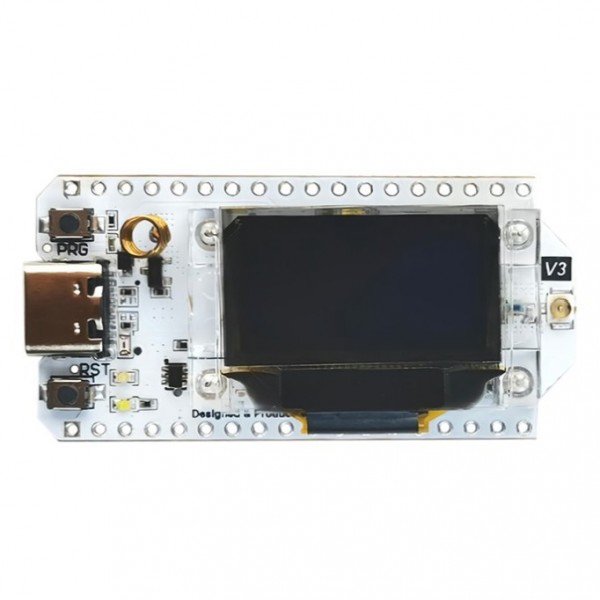

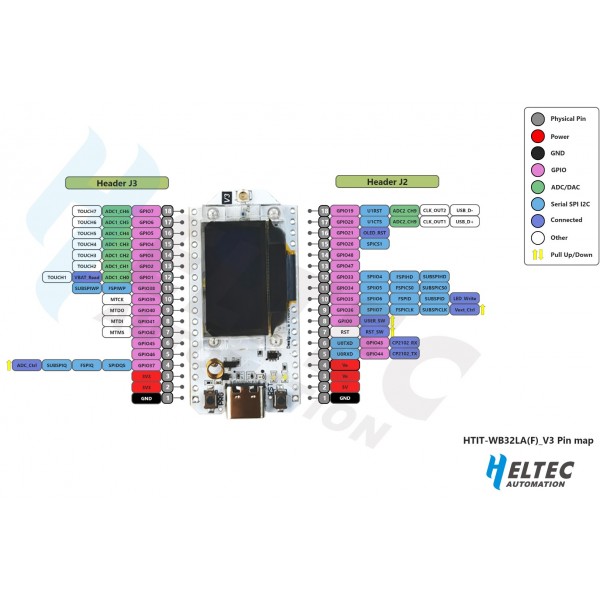

Heltec Wi-Fi LoRa 32 V3 - ESP32-S3 - SX1262 433MHz - with 0.96 inch OLED Display
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005913
€22.75
Ex Tax: €18.80
This Heltec microntroller board has an OLED screen and supports both Wi-Fi, Bluetooth and LoRa (433MHz). The board has a USB-C connection that allows it to be programmed and/or powered (USB cable not included). Also, this board supports Li-ion/Li-Po powering and charging.
See the following page for more information: Manufacturer page
Check the tab "Downloads" for more information and/or downloads.
Reviews Over Heltec Wi-Fi LoRa 32 V3 - ESP32-S3 - SX1262 433MHz - with 0.96 inch OLED Display
This product has 0 review(s) in total.
Report this review.
Datasheet: 005913_HTIT-WB32LA_V3(Rev1.1).pdf
Tags:
Microcontroller Boards
, With LoRa
, Heltec Wi-Fi LoRa 32 V3 - ESP32-S3 - SX1262 433MHz - with 0.96 inch OLED Display
, 005913
, Heltec
, HTIT-WB32LAF
, Battery charger
, Display
, Microcontroller (MCU)
, Programmable button(s)
, I2C
, I2S
, SPI
, Native USB
, UART
, PWM
, ADC
, GPIO
, USB CDC
, Wi-Fi
, Bluetooth
, LoRa
Specifications
| General | |
| Brand | Heltec |
| Manufacturer model/SKU | HTIT-WB32LAF |
| Model revision | V3.2 |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 70 |
| Features | Display Battery charger Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | White |
| Weight [g] | 9 |
| Dimension X [mm] | 52 |
| Dimension Y [mm] | 26 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 8 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 28 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 9 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | CP2102 |
| Wireless communication | |
| Interface(s) | LoRa Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| LoRa chip/SoC | SX1262 |
| LoRa frequency [MHz] | 433 |
| Display | |
| Type | OLED |
| Driver | SSD1306 |
| Screen diagonal [inch] | 0.96 |
| Number of pixels long side | 128 |
| Number of pixels short side | 64 |
| Display shape | Rectangular |
| Pixel colors | Blue |
| Battery circuit | |
| Battery charger chip/SoC | LGS4056H (V3.2) TP4054 (V3.1) |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 500 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | USB-C female Through hole solder pin(s) (2.54mm) |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| LoRa antenna connector | IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x Wi-Fi LoRa 32 board 2x Male pin header 20p 1x SMA LoRa 433MHz antenna 1x IPEX to SMA cable 1x Battery connection cable |
