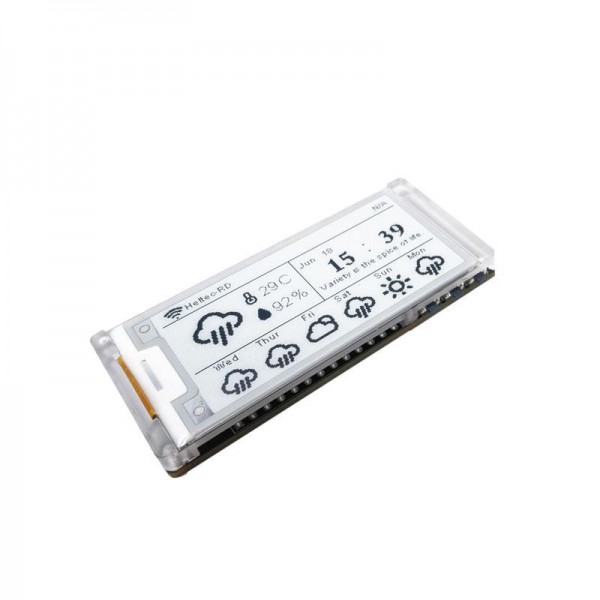

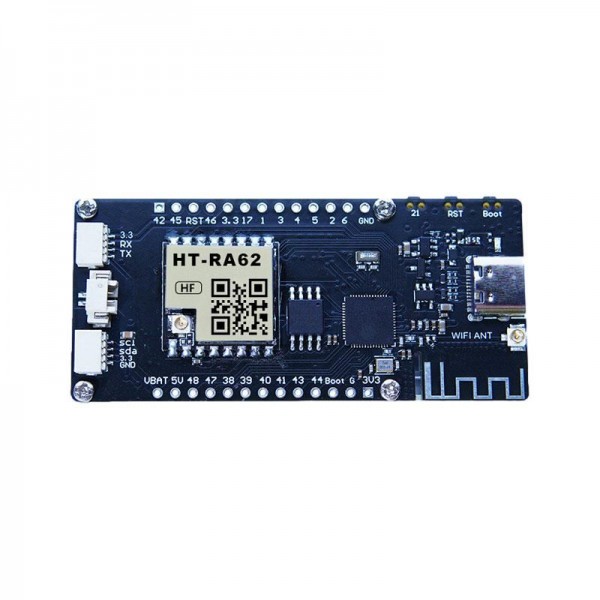

Heltec Vision Master E213 - ESP32-S3 - SX1262 LoRa 868MHz - with 2.13 inch E-Paper Display
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006366
€22.00
Ex Tax: €18.18
10 or more €21.50
20 or more €21.00
50 or more €20.50
100 or more €20.00
Heltec's Vision Master is a versatile development board based on the ESP32-S3. The microcontroller is compatible with Arduino, PlatformIO and MicroPython and supports Bluetooth, Wi-Fi and LoRa. This makes it ideal for developing electronic tags and open-source projects such as Meshtastic.
See the following page for more information: Manufacturer page
Check the tab "Downloads" for more information and/or downloads.
Reviews Over Heltec Vision Master E213 - ESP32-S3 - SX1262 LoRa 868MHz - with 2.13 inch E-Paper Display
This product has 0 review(s) in total.
Report this review.
Datasheet: 006366_HT-VME213 Datasheet.pdf
Tags:
Microcontroller Boards
, With LoRa
, Heltec Vision Master E213 - ESP32-S3 - SX1262 LoRa 868MHz - with 2.13 inch E-Paper Display
, 006366
, Heltec
, HT-VME213-HF
, Battery charger
, Display
, Microcontroller (MCU)
, Programmable button(s)
, I2C
, I2S
, SPI
, Native USB
, UART
, PWM
, ADC
, GPIO
, USB CDC
, Wi-Fi
, Bluetooth
, LoRa
Specifications
| General | |
| Brand | Heltec |
| Manufacturer model/SKU | HT-VME213-HF |
| Minimum operating humidity [%R.H.] | 0 |
| Maximum operating humidity [%R.H.] | 65 |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 70 |
| Features | Display Battery charger Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 18 |
| Dimension X [mm] | 67 |
| Dimension Y [mm] | 31 |
| Dimension Z [mm] | 10 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Indication (deep-)sleep current [μA] | 18 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 19 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 7 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | LoRa Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| LoRa chip/SoC | SX1262 |
| LoRa frequency [MHz] | 868 |
| Display | |
| Type | E-paper |
| Driver | JD79656 |
| Screen diagonal [inch] | 2.13 |
| Number of pixels long side | 250 |
| Number of pixels short side | 122 |
| Display shape | Rectangular |
| Pixel colors | Black White |
| Partial display refresh | No |
| Battery circuit | |
| Battery charger chip/SoC | LGS4056H |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 500 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | USB-C female JST-SH (compatible) male Through hole solder pin(s) (2.54mm) |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna IPEX MHF 1/uFL male (requires modification) |
| LoRa antenna connector | IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x HT-VME213-HF 1x LoRa antenna 1x Battery cable 2x JST-PH to JST-SH cable 2x Male pin header 13p |
