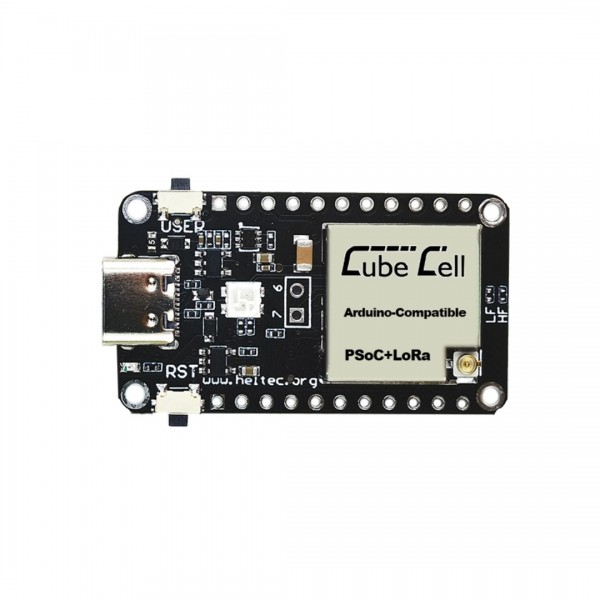

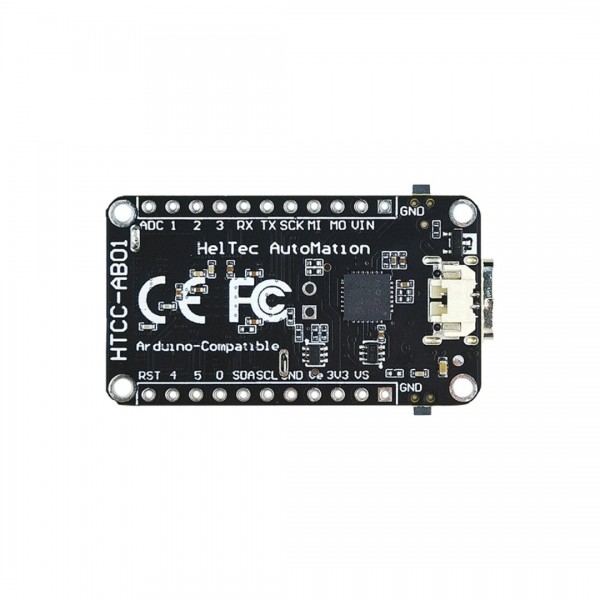

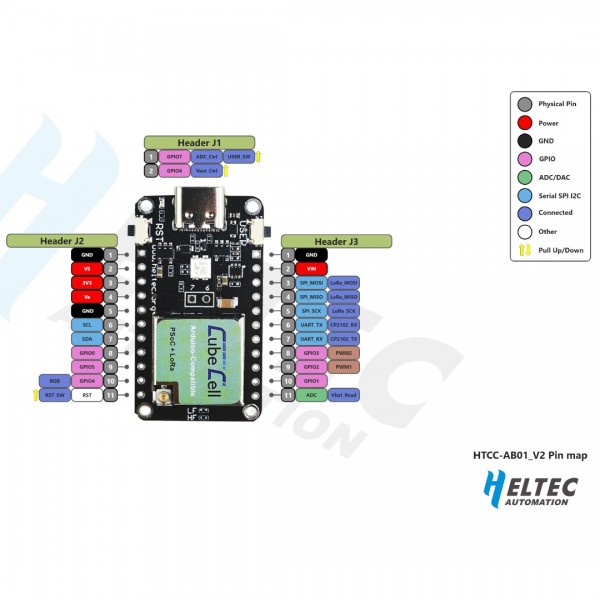

Heltec CubeCell LoRa Development Board V2 - 868MHz

Heltec CubeCell LoRa Development Board V2 - 868MHz
Heltec CubeCell LoRa Development Board V2 - 868MHz
Heltec CubeCell LoRa Development Board V2 - 868MHz
Discontinued
Heltec CubeCell LoRa Development Board V2 - 868MHz
Heltec CubeCell LoRa Development Board V2 - 868MHz
Heltec CubeCell LoRa Development Board V2 - 868MHz
Heltec CubeCell LoRa Development Board V2 - 868MHz
  • Availability: Discontinued
  • SKU: 005381
Based on 0 review(s) - Write a review
€16.75
Ex Tax: €13.84
10 or more €16.50
Add to Cart
Add to wishlist

The CubeCell is a compact, Arduino-compatible LoRaWAN development board with support for Li-ion/Li-Po powering and charging. In addition, you can directly connect a solar panel for both powering the board and charging the Li-ion/Li-Po battery.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Heltec CubeCell LoRa Development Board V2 - 868MHz

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With LoRa , Heltec CubeCell LoRa Development Board V2 - 868MHz , 005381 , Heltec , HTCC-AB01-HF_V2 , Programmable button(s) , Microcontroller (MCU) , Digital LED(s) , Battery charger , USB CDC , UART , GPIO , SPI , PWM , I2C , ADC , LoRa

Specifications

General
Brand Heltec
Manufacturer model/SKU HTCC-AB01-HF_V2
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
Features Digital LED(s)
Battery charger
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Black
Weight [g] 4
Dimension X [mm] 41
Dimension Y [mm] 23
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.8
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 4.7
(via USB-C/Vin)
5.5
(via Vs (solar panel))
Maximum supply voltage [V DC] 7
(via Vs (solar panel))
6
(via USB-C/Vin)
Indication (deep-)sleep current [μA] 3.5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
MCU
Manufacturer ASR
Chip series ASR6502
Maximum clock frequency [MHz] 48
Number of cores 1
Internal memory
SRAM [KB] 16
Flash memory [MB] 0.128
Communication
Hardware interface(s) ADC
I2C
PWM
SPI
GPIO
UART
USB CDC
Number of IO-pins 14
Maximum available hardware PWM channels 2
Maximum available analog input pins (ADC) 1
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter CP2102
Wireless communication
Interface(s) LoRa
LoRa chip/SoC ASR6502
(integrated SX1262)
LoRa frequency [MHz] 868
Light source
Type LED
LED (driver) chip SK6812
Light color RGB
Battery circuit
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 80
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Through hole solder pin(s) (2.54mm)
Battery connector(s) Molex Picoblade (compatible) male
LoRa antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x CubeCell development board
2x Male pin header 11p
1x Battery cable
1x IPEX/uFL to SMA adapter cable
1x SMA antenna
