Heltec CubeCell LoRa Development Board Plus - 868MHz - with 0.96 inch OLED Display

Heltec CubeCell LoRa Development Board Plus - 868MHz - with 0.96 inch OLED Display
Heltec CubeCell LoRa Development Board Plus - 868MHz - with 0.96 inch OLED Display
Heltec CubeCell LoRa Development Board Plus - 868MHz - with 0.96 inch OLED Display
Heltec CubeCell LoRa Development Board Plus - 868MHz - with 0.96 inch OLED Display
Heltec CubeCell LoRa Development Board Plus - 868MHz - with 0.96 inch OLED Display
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006062
Based on 0 review(s) - Write a review
€18.75
Ex Tax: €15.50
Add to Cart
Add to wishlist

The CubeCell is a compact, Arduino-compatible LoRaWAN development board with support for Li-ion/Li-Po powering and charging. In addition, you can directly connect a solar panel for both powering the board and charging the Li-ion/Li-Po battery.

See the following page for more information: Manufacturer page

Please login or register to review
Tags: Microcontroller Boards , With LoRa , Heltec CubeCell LoRa Development Board Plus - 868MHz - with 0.96 inch OLED Display , 006062 , Heltec , HTCC-AB02-F , Battery charger , Display , Microcontroller (MCU) , Digital LED(s) , I2C , SPI , UART , PWM , ADC , GPIO , USB CDC , LoRa

Specifications

General
Brand Heltec
Manufacturer model/SKU HTCC-AB02-F
Model revision V1.0
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
Features Display
Digital LED(s)
Battery charger
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 6
Dimension X [mm] 51
Dimension Y [mm] 23
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 4.7
(via USB-C/Vin)
5.5
(via Vs (solar panel))
Maximum supply voltage [V DC] 7
(via Vs (solar panel))
6
(via USB-C/Vin)
Indication (deep-)sleep current [μA] 3.5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
MCU
Manufacturer ASR
Chip series ASR6502
Maximum clock frequency [MHz] 48
Number of cores 1
Internal memory
SRAM [KB] 16
Flash memory [MB] 0.128
Communication
Hardware interface(s) ADC
I2C
PWM
SPI
GPIO
UART
USB CDC

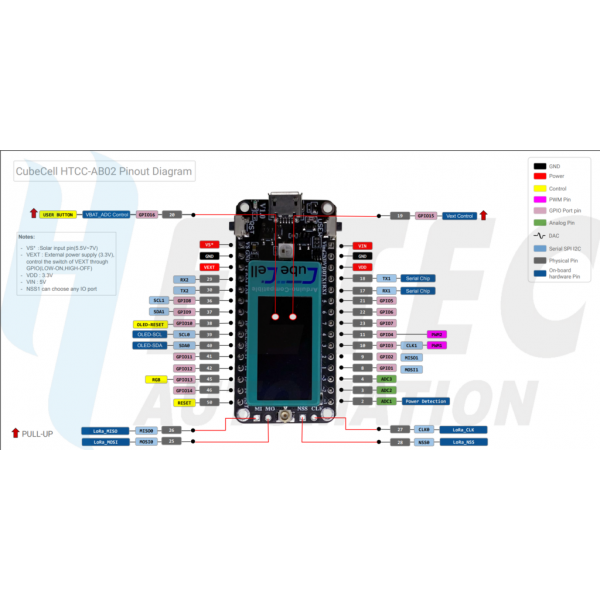

Number of IO-pins 27
(incl. pins connected to LoRa module)
Maximum available hardware PWM channels 2
Maximum available analog input pins (ADC) 3
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
(one is used by LoRa module)
USB to serial converter CP2102
Wireless communication
Interface(s) LoRa
LoRa chip/SoC ASR6502
(integrated SX1262)
LoRa frequency [MHz] 868
Display
Type OLED
Driver SSD1306
(or SH1107)
Screen diagonal [inch] 0.96
Number of pixels long side 128
Number of pixels short side 64
Display shape Rectangular
Pixel colors Blue
Light source
Type LED
LED (driver) chip SK6812
Light color RGB
Battery circuit
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 80
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) Micro USB female
Through hole solder pin(s) (2.54mm)
IO-connector(s) Micro USB female
Through hole solder pin(s) (2.54mm)
Battery connector(s) Molex Picoblade (compatible) male
LoRa antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x CubeCell development board plus
2x Male pin header 15p
1x Battery cable
1x IPEX/uFL to SMA adapter cable
1x SMA antenna
