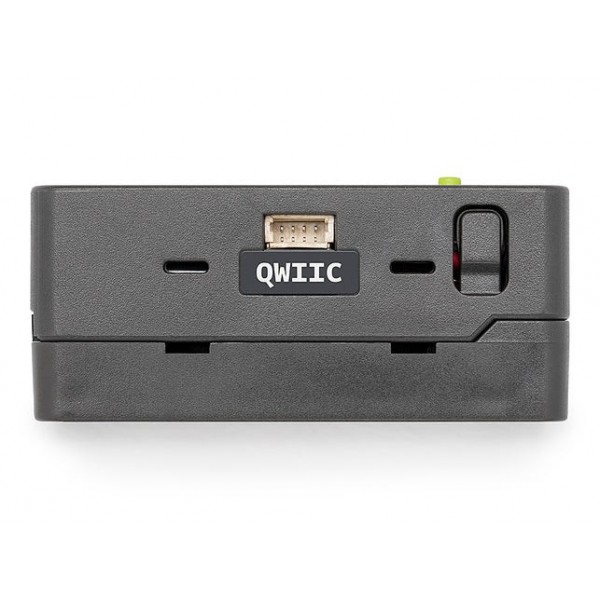

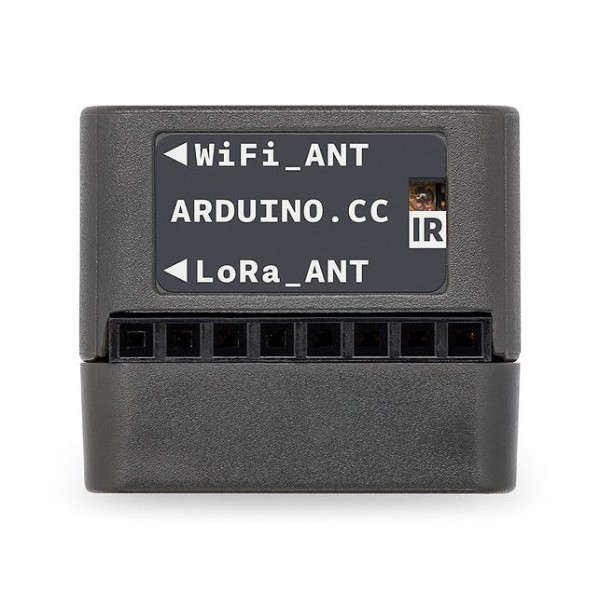

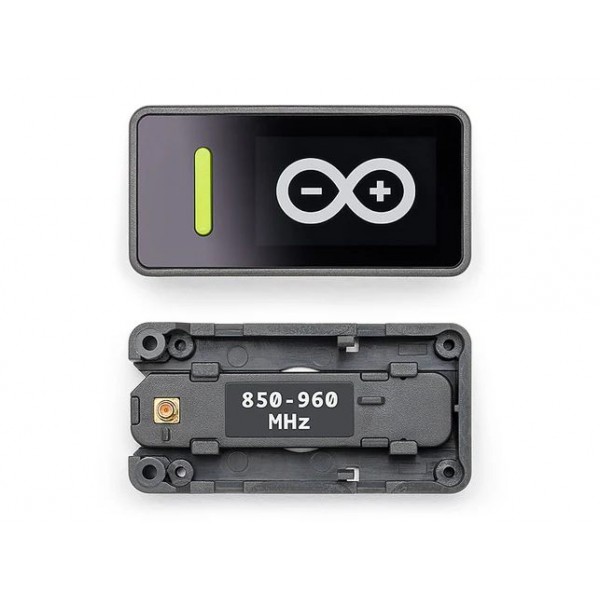

Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz

Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007526
Based on 0 review(s) - Write a review
€47.50
Ex Tax: €39.26
Add to Cart
Add to wishlist

A development board from Arduino based on a ESP32-C6 microcontroller by Espressif with multiple sensors. Thanks to the built-in USB connector, it is easy to program. Things can be shown on the built-in IPS display and with the touchscreen, an extensive user interface can be created. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth/LoRa). Finally, the board has a rechargeable Li-Po battery, which allows it to be used even when there's no power nearby.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With LoRa , Arduino Nesso N1 - ESP32-C6 - SX1262 LoRa 868MHz , 007526 , Arduino , TPX00227 , Display , Battery , Gyroscope , Touchscreen , Battery charger , Speaker/buzzer , Digital LED(s) , Acceleration sensor , Microcontroller (MCU) , Battery protection circuit , Programmable button(s) , ADC , I2C , I2S , PWM , SPI , GPIO , UART , USB CDC , IR , LoRa , Wi-Fi , Thread , Zigbee , Bluetooth

Specifications

General
Brand Arduino
Manufacturer model/SKU TPX00227
Norm conformity CE
RoHS
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Battery
Display
Gyroscope
Touchscreen
Digital LED(s)
Speaker/buzzer
Battery charger
Acceleration sensor
Microcontroller (MCU)
Programmable button(s)
Battery protection circuit
General physical appearance
Main color Gray/silver
Dimension X [mm] 48
Dimension Y [mm] 24
Dimension Z [mm] 14
(without antenna storage)
21.1
(with antenna storage)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-C6
Maximum clock frequency [MHz] 160
Number of cores 1
Internal memory
SRAM [KB] 512
PSRAM [MB] 0
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 2, 4, 5, 6, 7, 8, 10
Number of IO-pins 7
Maximum available hardware PWM channels 7
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) IR
LoRa
Wi-Fi
Thread
Zigbee
Bluetooth
Wi-Fi chip/SoC ESP32-C6
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C6
Bluetooth version 5.3
Supported Bluetooth standard(s) LE
Zigbee chip/SoC ESP32-C6
Zigbee frequency [GHz] 2.4
Thread chip/SoC ESP32-C6
LoRa chip/SoC SX1262
LoRa frequency [MHz] 868
IR receiver/transmitter Transmitter
Display
Type IPS
Driver ST7789
Screen diagonal [inch] 1.14
Number of pixels long side 240
Number of pixels short side 135
Display shape Rectangular
Pixel colors RGB
Touchscreen
Touchscreen controller FT6336U
Touch type Capacitive
Multi-touch support Yes
Acceleration sensor
Sensor chip/SoC BMI270
Degrees of freedom (DOF) 3
Maximum measuring range [±g] 16
Maximum resolution [bit] 16
Gyroscope
Sensor chip/SoC BMI270
Degrees of freedom (DOF) 3
Maximum measuring range [±°/s] 2000
Maximum resolution [bit] 16
Speaker
Speaker type Buzzer
Active/passive Passive
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 2
Battery circuit
Battery charger chip/SoC AW32001
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Adjustable charging current No
Protection circuit Yes
Safety features Overcurrent
Overvoltage
Temperature
Short circuit
Battery
Chemistry Li-Po
Rechargeable Yes
Typical capacity [mAh] 250
Nominal cell voltage [V] 3.7
Maximum cell voltage [V] 4.2
Connectors
Power supply connector(s) USB-C female
Pin header female (2.54mm)
IO-connector(s) USB-C female
HY2.0 (Grove) male
JST-SH (compatible) male
Pin header female (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Zigbee/Thread antenna connector Built-in antenna
LoRa antenna connector MMCX female

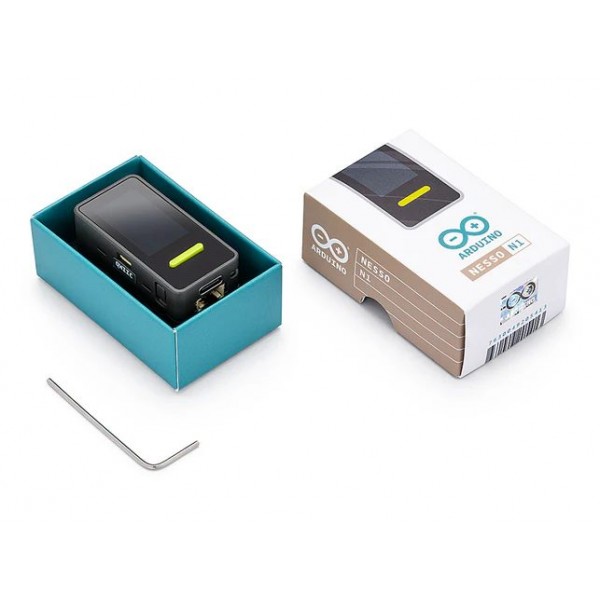

Package contents

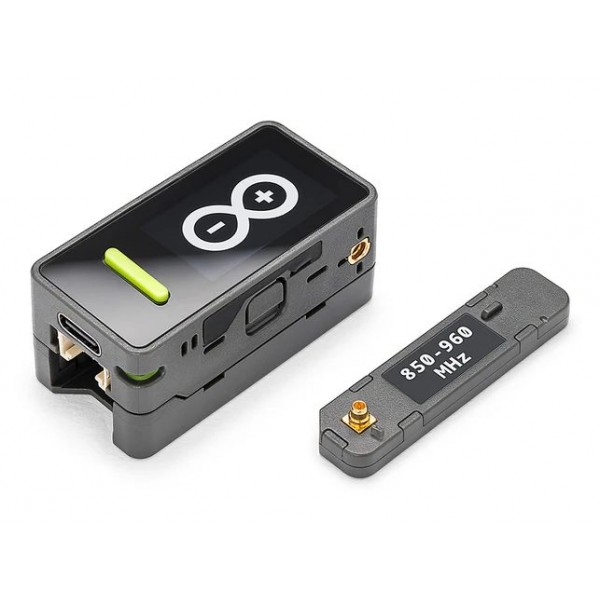

Package contents 1x Antenna
1x Arduino Nesso N1
1x Hex key
