LilyGO T-Impulse Development Wristband - S78G - LoRa 433MHz - GNSS - IMU
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005190
€39.25
Ex Tax: €32.44
A wristband based on an S78G System in Chip (SiP) that integrates a number of chips into one, including a microcontroller, LoRa chip and GNSS (GPS) chip.
Note: The same wristband is used as for the TTGO T-Wristband modules, however, this product is a bit thicker so that the strap does not fit properly and can therefore slide up and down. Aesthetically this is not entirely attractive and it also offers room for moisture and/or dirt to penetrate through the USB connector. Keep this in mind!
See the following page for more information: GitHub
Reviews Over LilyGO T-Impulse Development Wristband - S78G - LoRa 433MHz - GNSS - IMU
This product has 0 review(s) in total.
Report this review.
Tags:
Microcontroller Boards
, With LoRa
, LilyGO T-Impulse Development Wristband - S78G - LoRa 433MHz - GNSS - IMU
, 005190
, LilyGO TTGO
, K146
, Battery charger
, Display
, Microcontroller (MCU)
, Battery protection circuit
, Enclosure
, Battery
, Acceleration sensor
, Magnetometer
, Gyroscope

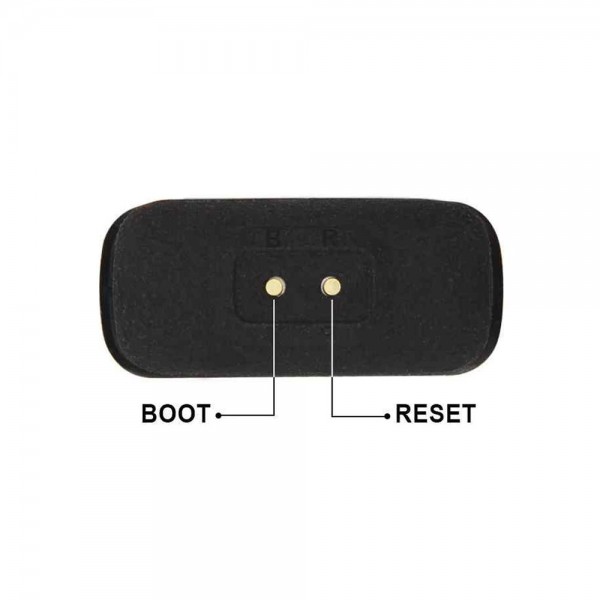

, Programmable button(s)
, Native USB
, GNSS
, LoRa
Specifications
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | K146 |
| Features | Battery Display Enclosure Gyroscope Magnetometer Battery charger Acceleration sensor Microcontroller (MCU) Programmable button(s) Battery protection circuit |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 23 |
| Form factor | Wristband |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| MCU | |
| Manufacturer | STMicroelectronics (AcSiP) |
| Chip series | STM32L0 (S78G) |
| Maximum clock frequency [MHz] | 32 |
| Number of cores | 1 |
| Internal memory | |
| SRAM [KB] | 20 |
| Flash memory [MB] | 0.1875 (192KB) |
| EEPROM [B] | 64 |
| EEPROM type | Built-in |
| Communication | |
| Hardware interface(s) | Native USB |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | GNSS LoRa |
| GNSS chip/SoC | CXD5603GF (S78G) |
| Supported GNSS systems | GPS Beidou GLONASS |
| LoRa chip/SoC | SX1278 (S78G) |
| LoRa frequency [MHz] | 433 |

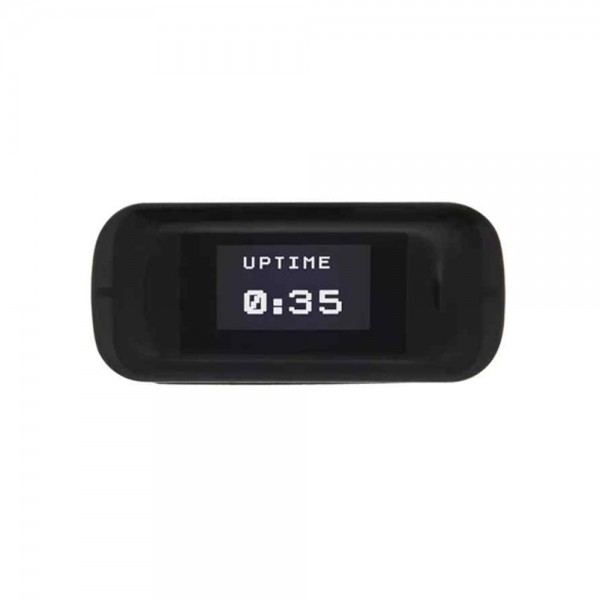

| Display | |
| Type | OLED |
| Driver | SSD1306 |
| Screen diagonal [inch] | 0.49 |
| Number of pixels long side | 64 |
| Number of pixels short side | 32 |
| Display shape | Rectangular |
| Pixel colors | White |
| Acceleration sensor | |
| Sensor chip/SoC | ICM-20948 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | ICM-20948 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| Magnetometer | |
| Sensor (chip) | ICM-20948 |
| Type | Compass |
| Degrees of freedom (DOF) | 3 |
| Minimum measuring range [mT] | -4.9 |
| Maximum measuring range [mT] | 4.9 |
| Maximum resolution [bit] | 16 |
| Switch | |
| Switching method | Physical (sensor switch) |
| Switch type | Touch |
| Number of channels/gangs | 1 |
| Battery circuit | |
| Battery charger chip/SoC | TP4054 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Adjustable charging current | No |
| Protection circuit | Yes |
| Battery | |
| Chemistry | Li-Po |
| Rechargeable | Yes |
| Typical capacity [mAh] | 200 |
| Connectors | |
| Power supply connector(s) | USB-C female |
| IO-connector(s) | USB-C female |
| LoRa antenna connector | Built-in antenna |
| GNSS antenna connector | Built-in antenna |
| Enclosure | |
| Material | Plastic (unknown material) |
| Package contents | |

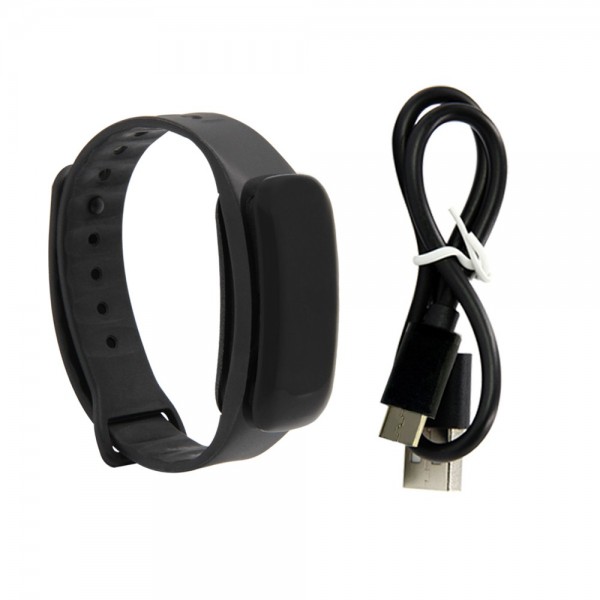

| Package contents | 1x T-impulse 1x wristband 1x USB-A to USB-C kabel |
