LilyGO T-Beam V1.2 AXP2101 - LoRa 433MHz - NEO-M8N GNSS - ESP32
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005515
€40.00
Ex Tax: €33.06

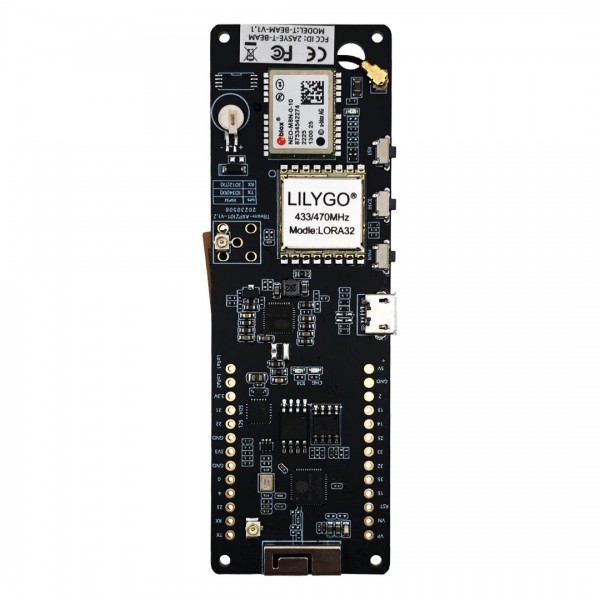

The T-Beam from LilyGO is a microcontroller based on an ESP32 including a built-in LoRa chip and a GNSS module. The USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included).
The T-Beam can also be use with the SoftRF software: SoftRF ESP32.
To program the board with the Arduino IDE select the 'ESP32 Dev Module' in the board manager.
See the following page for more information: GitHub
Reviews Over LilyGO T-Beam V1.2 AXP2101 - LoRa 433MHz - NEO-M8N GNSS - ESP32
This product has 0 review(s) in total.
Report this review.
Specifications
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | Q402 |
| Model revision | V1.2 |
| Features | Battery charger Microcontroller Battery holder Battery protection circuit RTC Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 27 |
| Dimension X [mm] | 100 |
| Dimension Y [mm] | 33 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 2 |
| Form factor | Module (general) T-Beam layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 20 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI UART PWM ADC DAC GPIO USB CDC |
| Number of IO-pins | 17 |
| Maximum available hardware PWM channels | 14 |
| Maximum available analog input pins (ADC) | 12 |
| Maximum available analog output pins (DAC) | 1 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | CH9102F |
| Wireless communication | |
| Interface(s) | GNSS Wi-Fi Bluetooth LoRa |
| Wi-Fi chip/SoC | ESP32 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |
| GNSS chip/SoC | NEO-M8N |
| Supported GNSS systems | GPS Beidou GLONASS Galileo |
| Maximum GNSS position accuracy [m] | 2.0 |
| Maximum GNSS update rate [Hz] | 10 |
| LoRa chip/SoC | SX1278 |
| LoRa frequency [MHz] | 433 |
| RTC | |
| RTC chip | NEO-M8N |
| Back-up battery/capacitor | Yes |
| Battery circuit | |
| Battery charger chip/SoC | AXP2101 |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 1000 |
| Adjustable charging current | Yes |
| Protection circuit | Yes |
| Safety features | Overcurrent Polarity Undervoltage |
| Undervoltage detection (UVP) [V] | 2.40 |
| Battery holder | |
| Suitable battery form factor | 18650 |
| Suitable anode shape | Button top Flat top |
| Suitable number of batteries | 1 |
| Connectors | |
| Power supply connector(s) | Through hole solder pin(s) (2.54mm) Micro USB female |
| IO-connector(s) | Through hole solder pin(s) (2.54mm) Micro USB female |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna IPEX MHF 1/uFL male (requires modification) |
| LoRa antenna connector | IPEX MHF 1/uFL male |
| GNSS antenna connector | IPEX MHF 1/uFL male |
| Package contents | |

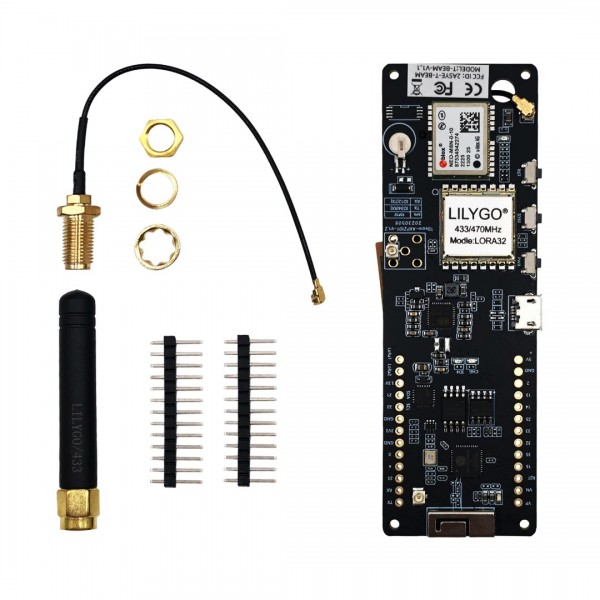

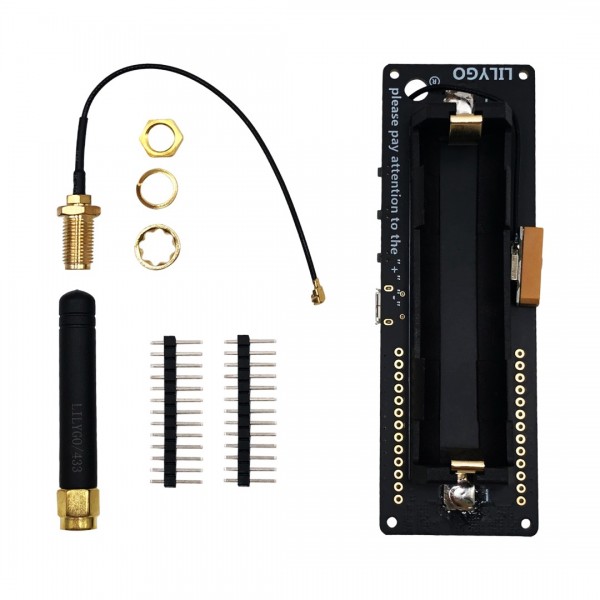

| Package contents | 1x T-Beam 1x LoRa SMA antenna 1x uFL to SMA adapter set 1x GNSS antenna (pre-assembled) 2x Male pin header 13p |
