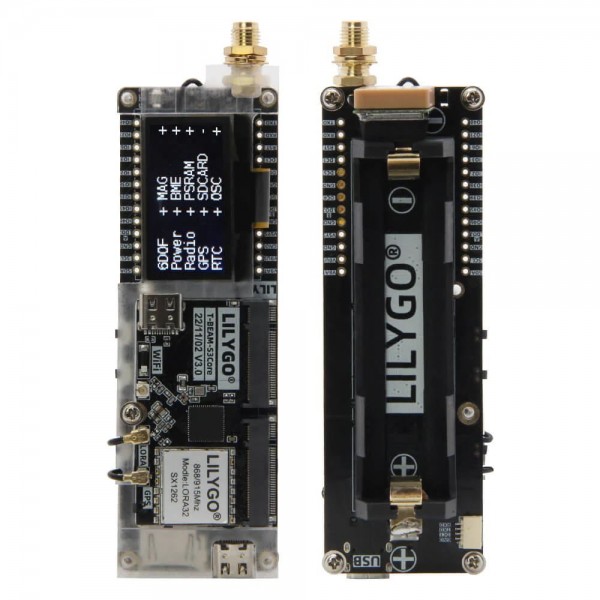

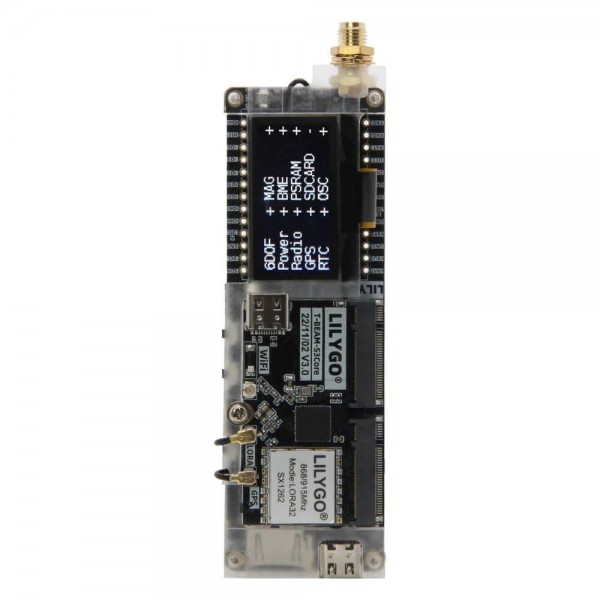

LilyGO T-Beam-S3 Supreme - LoRa 868MHz - L76K GNSS - 1.3 inch OLED Display - ESP32-S3
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005349
€53.00
Ex Tax: €43.80
Reviews Over LilyGO T-Beam-S3 Supreme - LoRa 868MHz - L76K GNSS - 1.3 inch OLED Display - ESP32-S3
This product has 0 review(s) in total.
Report this review.
Tags:
LilyGO T-Beam-S3 Supreme - LoRa 868MHz - L76K GNSS - 1.3 inch OLED Display - ESP32-S3
, LILYGO-H616
, With Bluetooth
Specifications

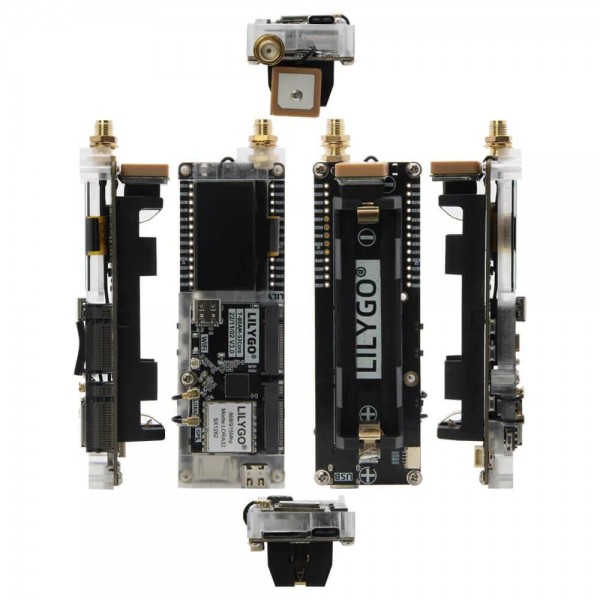

| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H616 |
| Model revision | V3.0 |
| Features | Battery charger Display Microcontroller SD-card adapter Battery holder Temperature sensor Humidity sensor Battery protection circuit RTC Pressure sensor (gas/liquid) Acceleration sensor Magnetometer Gyroscope Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 57 (incl. antennas) |

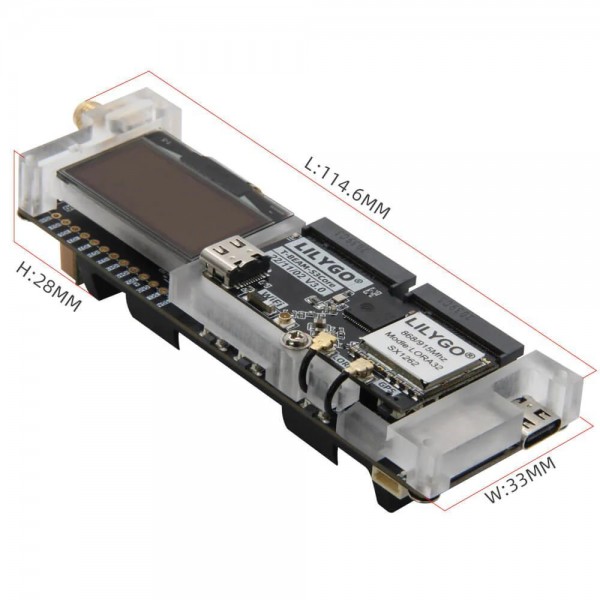

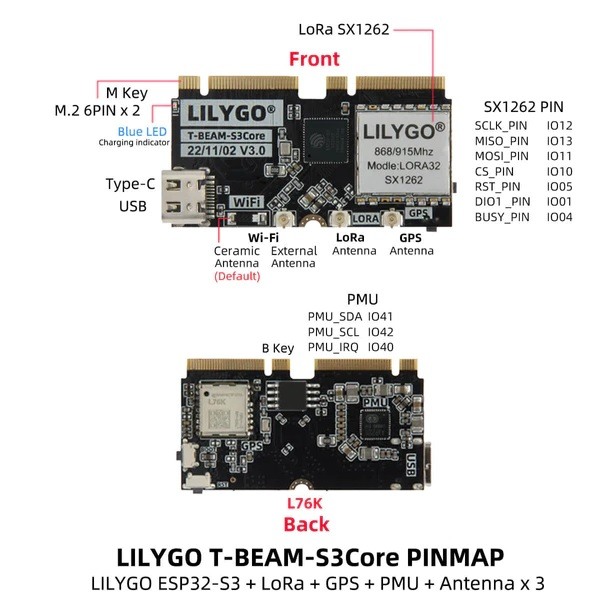

| Dimension X [mm] | 105 |
| Dimension Y [mm] | 33 |
| Dimension Z [mm] | 28 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU/SoC | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 8 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC |
| Number of IO-pins | 10 |
| Maximum available hardware PWM channels | 8 |
| Maximum available analog input pins (ADC) | 2 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | GNSS Wi-Fi Bluetooth LoRa |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| GNSS chip/SoC | L76K |
| Supported GNSS systems | GPS Beidou GLONASS QZSS |
| Maximum GNSS position accuracy [m] | 2.0 |
| Maximum GNSS update rate [Hz] | 5 |
| LoRa chip/SoC | SX1262 |
| LoRa frequency [MHz] | 868 |
| Display | |
| Type | OLED |
| Driver | SH1106 |
| Screen diagonal [inch] | 1.3 |
| Number of pixels long side | 128 |
| Number of pixels short side | 64 |
| Display shape | Rectangular |
| Pixel colors | White |
| Temperature sensor | |
| Sensor (chip) | BME280 |
| Minimum measuring range [°C] | -40 |
| Maximum measuring range [°C] | 85 |
| Smallest resolution [°C] | 0.01 |
| Accuracy [±°C] | 1.0 |
| Humidity sensor | |
| Sensor (chip) | BME280 |
| Minimum measuring range [% R.H.] | 0 |
| Maximum measuring range [% R.H.] | 100 |
| Smallest resolution [%R.H.] | 0.008 |
| Accuracy [±%] | 3.0 |
| Pressure sensor | |
| Sensor (chip) | BME280 |
| Suitable medium | Air |
| Minimum measuring range [hPa] | 300 |
| Maximum measuring range [hPa] | 1100 |
| Smallest resolution [hPa] | 0.0018 |
| Accuracy [±hPa] | 1.0 |
| Acceleration sensor | |
| Sensor chip/SoC | QMI8658C |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | QMI8658C |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2048 |
| Maximum resolution [bit] | 16 |
| Magnetometer | |
| Sensor (chip) | QMC6310 |
| Type | Compass |
| Degrees of freedom (DOF) | 3 |
| Minimum measuring range [mT] | 0.0 |
| Maximum measuring range [mT] | 3.0 |
| Maximum resolution [bit] | 16 |
| Accuracy [°] | 2 |
| RTC | |
| RTC chip | PCF8563 |
| Back-up battery/capacitor | Yes |
| Battery circuit | |
| Battery charger chip/SoC | AXP2101 |
| Supported battery chemistry | Li-ion Li-Po |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 1000 |
| Adjustable charging current | Yes |
| Protection circuit | Yes |
| Safety features | Short circuit Overvoltage Overcurrent Polarity Undervoltage |
| Undervoltage detection (UVP) [V] | 2.40 |
| Battery holder | |
| Suitable battery form factor | 18650 |
| Suitable anode shape | Button top Flat top |
| Suitable number of batteries | 1 |

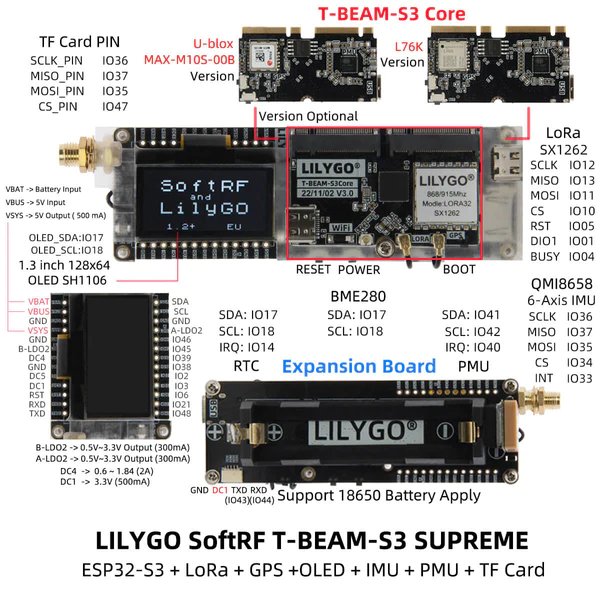

| Connectors | |
| Power supply connector(s) | Through hole solder pin(s) (2.54mm) USB-C female |
| IO-connector(s) | JST-SH (compatible) male Through hole solder pin(s) (2.54mm) USB-C female |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna IPEX MHF 1/uFL male (requires modification) |
| LoRa antenna connector | IPEX MHF 1/uFL male SMA female |
| GNSS antenna connector | Built-in antenna IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x T-Beam-S3 Supreme 1x LoRa SMA antenna 2x Male pin header 13p 1x Nut 1x Tooth lock washer 1x Spring washer |
