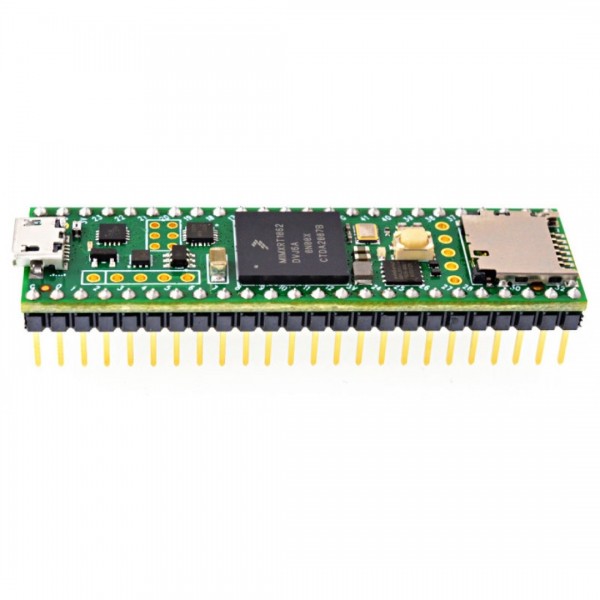

The Teensy 4.1 without ethernet is the same as the original Teensy 4.1 but without the DP83825 PHY ethernet chip. This Teensy is also suitable for use with Arduino with Teensyduino. Would you rather upload the hex file directly? Then use the Teensy Loader Application.

See following page for more information: Teensy 4.1 Development Board

Please login or register to review

Reviews Over Teensy 4.1 without Ethernet with Soldered Headers

Average Rating:

This product has 0 review(s) in total.

Tags: Teensy 4.1 without Ethernet with Soldered Headers , TEENSY4.1NE-PINS , Teensy

Specifications

General
Brand	Teensy
Features	Microcontroller SD-card adapter RTC
General physical appearance
Main color	Green
Weight [g]	9
Dimension X [mm]	61
Dimension Y [mm]	18
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.6
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	10
Maximum IO-pin sink current [mA]	10
MCU/SoC
Manufacturer	NXP
Chip series	iMXRT1062
Maximum clock frequency [MHz]	600
Number of cores	1
Internal memory
SRAM [KB]	1024
PSRAM [MB]	0
Flash memory [MB]	8
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	42 (only male pin headers)
Maximum available hardware PWM channels	27
Maximum available analog input pins (ADC)	18
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	8
Maximum available hardware I2C interfaces	3
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Supported SD card size	Micro SD
RTC
RTC chip	iMXRT1062
Back-up battery/capacitor	Optional
Connectors
Power supply connector(s)	Pin header male (2.54mm) Micro USB female
IO-connector(s)	Pin header male (2.54mm) Through hole solder pin(s) (2.54mm) Micro USB female
Package contents

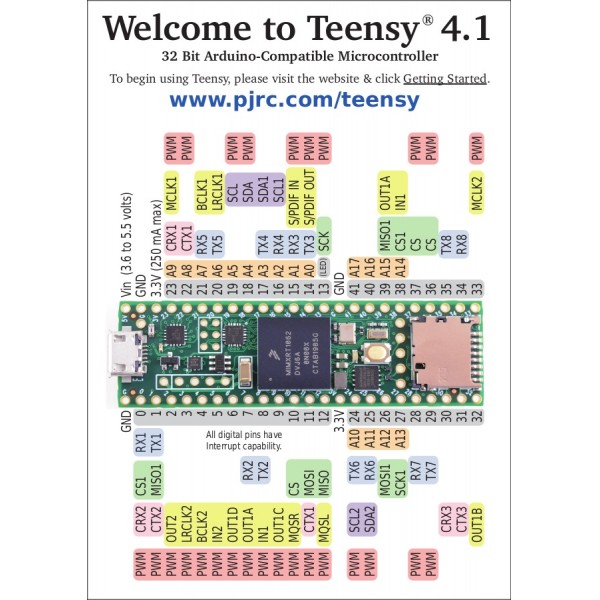

Package contents	1x Teensy 4.1 without Ethernet 1x Information card
