  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005651
Based on 0 review(s) - Write a review
€34.50
Ex Tax: €28.51
10 or more €34.25
20 or more €34.00
50 or more €33.75
100 or more €33.50

Available Options

Add to Cart
Add to wishlist

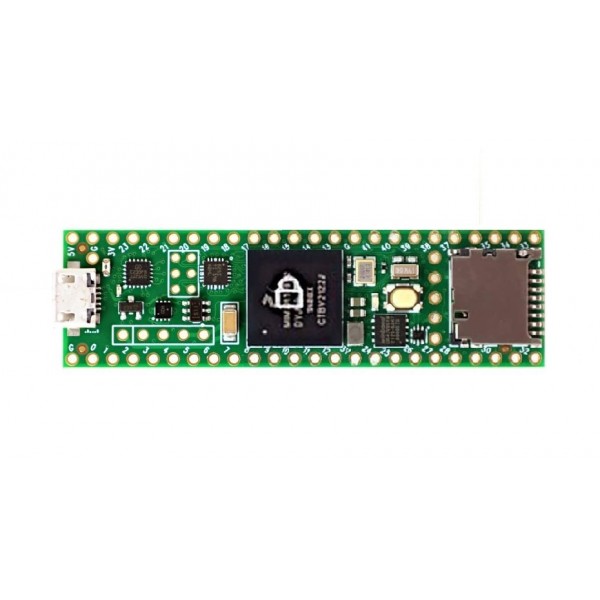

The Teensy 4.1 is a 32 bit microcontroller board with a powerfull ARM Cortex-M7 processor, suitable for programming with Arduino IDE. This version can be locked and reprogrammed with an EHEX file. This way, only users with access to the digital key can (re)program the board. This feature makes this board suitable for secure applications. The board also has an ethernet chip (see Teensy Ethernet Kit), SD card adapter and micro-USB connector.

Note: Because the code on this product can be locked, it cannot be returned once the sealed package has been opened.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Teensy 4.1 Lockable

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Teensy , Teensy 4.1 Lockable , 005651 , Teensy , TEENSY41_LOCK , Microcontroller (MCU) , SD-card adapter , RTC , I2C , I2S , SPI , Native USB , UART , PWM , ADC , GPIO , Ethernet , USB CDC

Specifications

General
Brand Teensy
Manufacturer model/SKU TEENSY41_LOCK
Features RTC
SD-card adapter
Microcontroller (MCU)
General physical appearance
Main color Green
Weight [g] 6

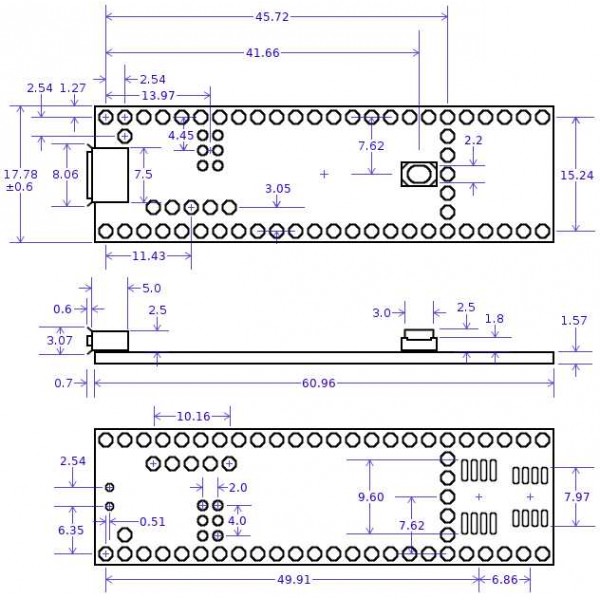

Dimension X [mm] 61
Dimension Y [mm] 18
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.6
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 10
Maximum IO-pin sink current [mA] 10
MCU
Manufacturer NXP
Chip series iMXRT1062
Maximum clock frequency [MHz] 600
Number of cores 1
Internal memory
SRAM [KB] 1024
PSRAM [MB] 0
Flash memory [MB] 8
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Ethernet
Native USB
Number of IO-pins 42
(only through hole solder pins)
Maximum available hardware PWM channels 27
Maximum available analog input pins (ADC) 18
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 8
Maximum available hardware I2C interfaces 3
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Ethernet chip/SoC DP83825
Supported SD card size Micro SD
RTC
RTC chip iMXRT1062
Back-up battery/capacitor Optional
Connectors
Power supply connector(s) Micro USB female
Through hole solder pin(s) (2.54mm)
IO-connector(s) Micro USB female
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Teensy 4.1 Lockable

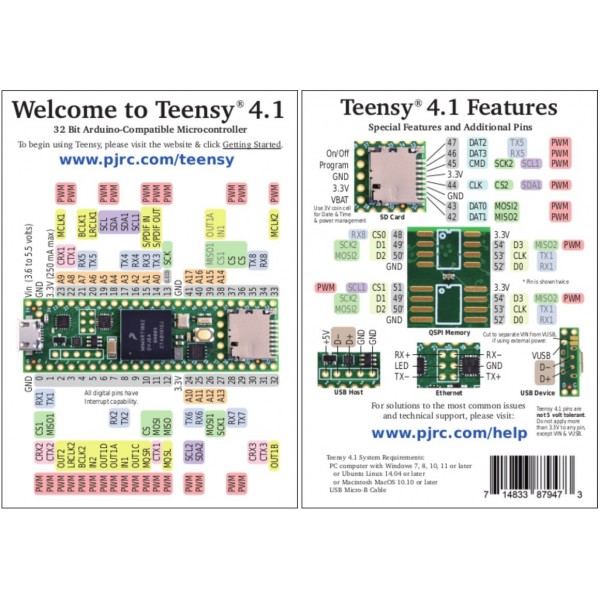

1x Information card
