Waveshare RP2350-Plus Development Board - 16MB

Availability: Directly available from warehouse in Eindhoven
SKU: 006911

Based on 0 review(s) - Write a review

€7.50

Ex Tax: €6.20

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

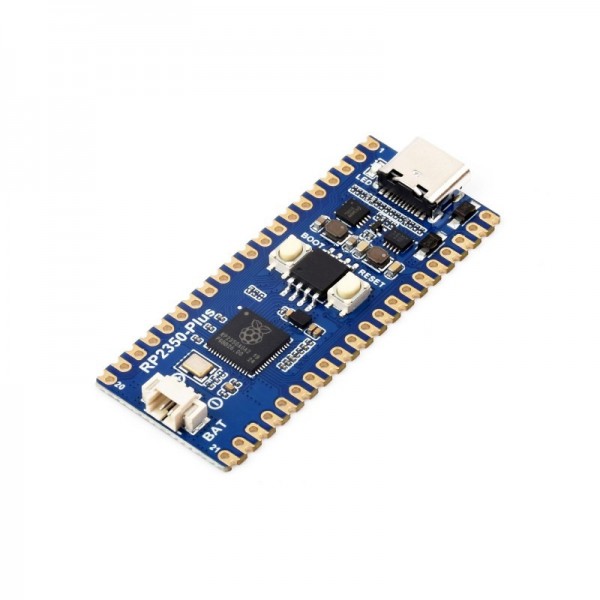

This microcontroller from Waveshare, based on the RP2350 chip, has the same form factor as the Raspberry Pi Pico. As a result, this module can be used with most accessories for it. A battery can also be connected to this microcontroller.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare RP2350-Plus Development Board - 16MB

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare RP2350-Plus Development Board - 16MB , WS-29761 , Others

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	29761
Features	Battery charger Microcontroller (MCU)
General physical appearance
Main color	Blue
Weight [g]	4

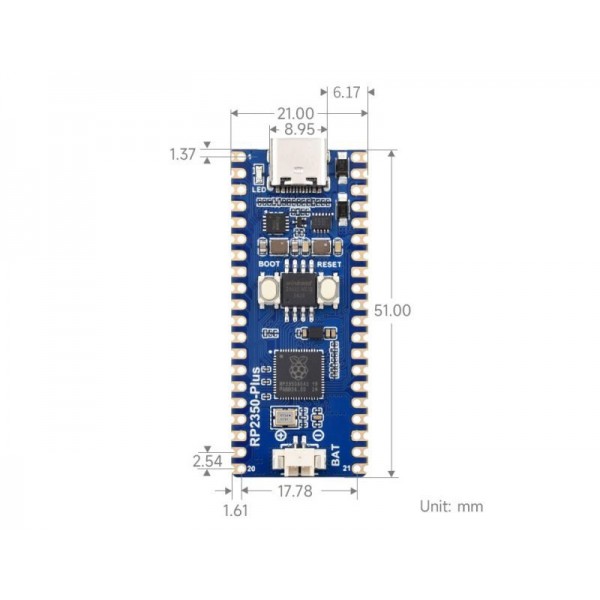

Dimension X [mm]	51
Dimension Y [mm]	21
Mounting options	SMT
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU
Manufacturer	Raspberry Pi
Chip series	RP2350
Maximum clock frequency [MHz]	150
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	0
Flash memory [MB]	16
EEPROM type	Emulated
Communication

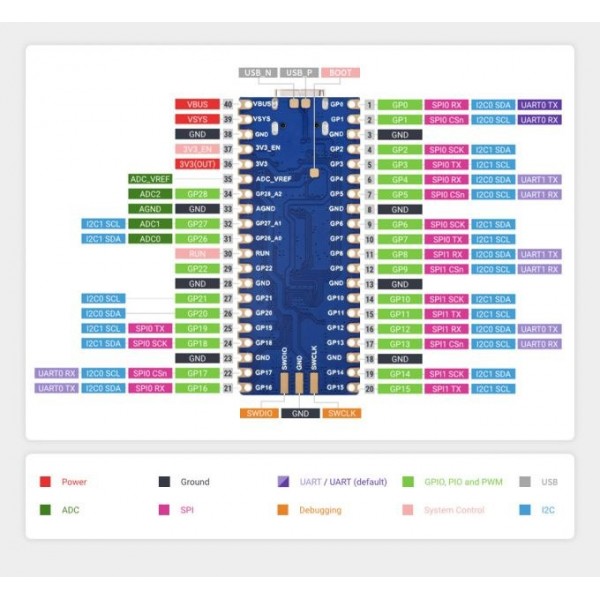

Hardware interface(s)	I2C SPI Native USB UART PWM ADC GPIO PIO USB CDC
Number of IO-pins	26
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Battery circuit
Battery charger chip/SoC	ETA6096
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	1000
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Package contents
Package contents	1x RP2350-Plus
