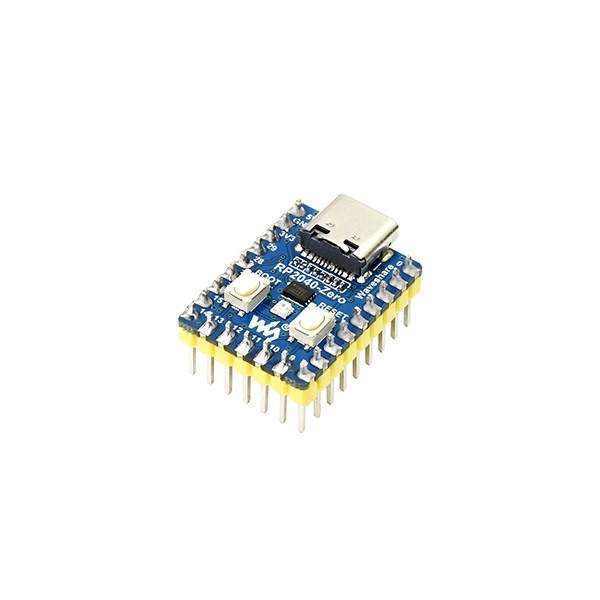

Waveshare RP2040-Zero with Soldered Headers
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004773
€5.50
Ex Tax: €4.55
Your shopping cart is empty!
A small development board from Waveshare based on the RP2040 chip from Raspberry Pi.
See the following page for more information: Wiki
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 20335 |
| Features | Microcontroller (MCU) |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 4 |
| Dimension X [mm] | 24 |
| Dimension Y [mm] | 18 |
| Mounting options | Pin headers |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 12 |
| Maximum IO-pin sink current [mA] | 12 |
| MCU | |
| Manufacturer | Raspberry Pi |
| Chip series | RP2040 |
| Maximum clock frequency [MHz] | 133 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 258 (264kB) |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 2 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C SPI Native USB UART PWM ADC GPIO PIO USB CDC |
| Number of IO-pins | 29 |
| Maximum available hardware PWM channels | 16 |
| Maximum available analog input pins (ADC) | 4 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 2 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) USB-C female |
| IO-connector(s) | Pin header male (2.54mm) Solder pad(s) USB-C female |
| Package contents | |
| Package contents | 1x Waveshare RP2040-Zero |
