Name: Waveshare RP2040-Plus - 4MB - WS-20290
Brand: Waveshare
SKU: 004729
Price: 8.5 EUR
Availability: InStock

Waveshare RP2040-Plus - 4MB

Availability: Directly available from warehouse in Eindhoven
SKU: 004729

Based on 0 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

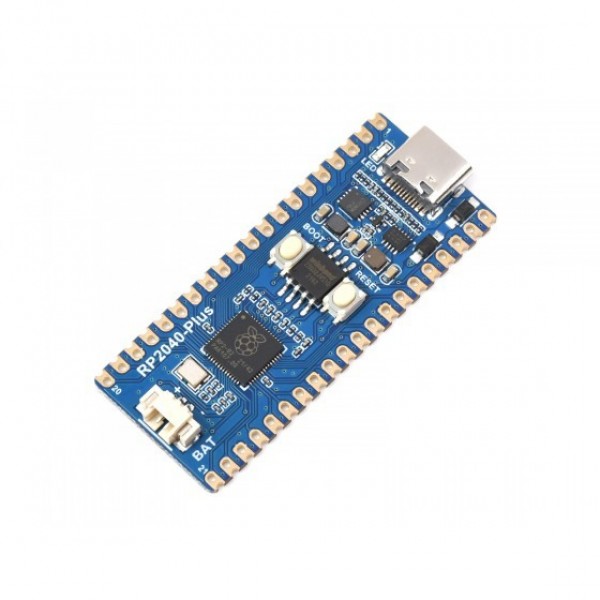

This is the Waveshare version of the Raspberry Pi Pico, which is also based on Raspberry Pi's RP2040 chip and has the same form factor. This means that this module can be used with the same accessories. In addition, this module also has a Li-ion/Li-Po charging circuit.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare RP2040-Plus - 4MB

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare RP2040-Plus - 4MB , WS-20290 , Others

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20290
Features	Battery charger Microcontroller
General physical appearance
Main color	Blue
Weight [g]	4

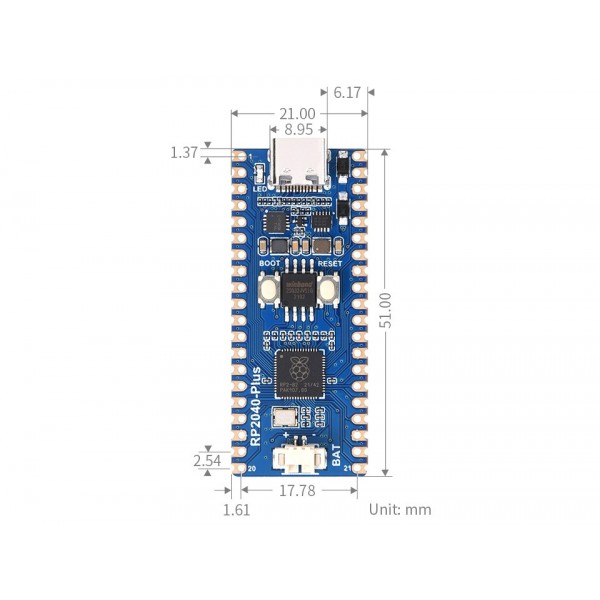

Dimension X [mm]	51
Dimension Y [mm]	21
Mounting options	SMT
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU/SoC
Manufacturer	Raspberry Pi
Chip series	RP2040
Maximum clock frequency [MHz]	133
Number of cores	2
Internal memory
SRAM [KB]	258 (264kB)
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication

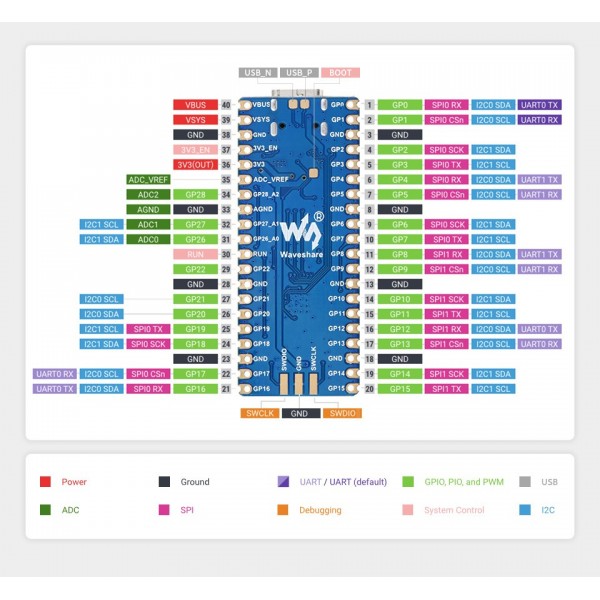

Hardware interface(s)	I2C SPI Native USB UART PWM ADC GPIO PIO USB CDC
Number of IO-pins	26
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Battery circuit
Battery charger chip/SoC	ETA6096
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	1000
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Package contents
Package contents	1x Waveshare RP2040-Plus
