Waveshare RP2040-One - 4MB Flash

Availability: Directly available from warehouse in Eindhoven
SKU: 005085

Based on 0 review(s) - Write a review

€5.75

Ex Tax: €4.75

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

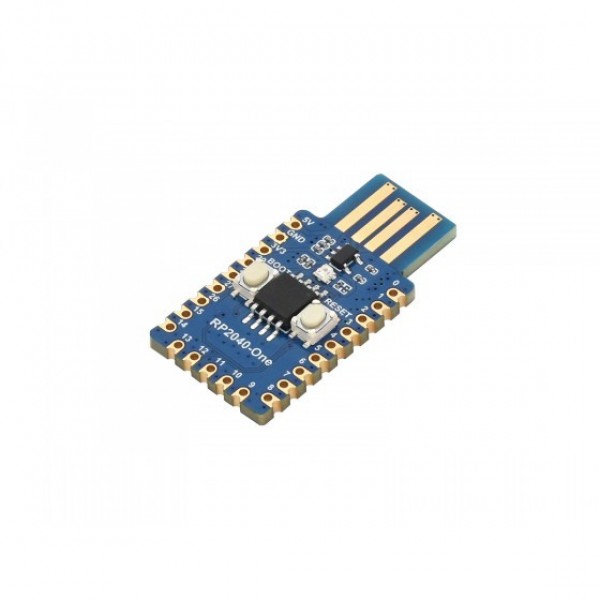

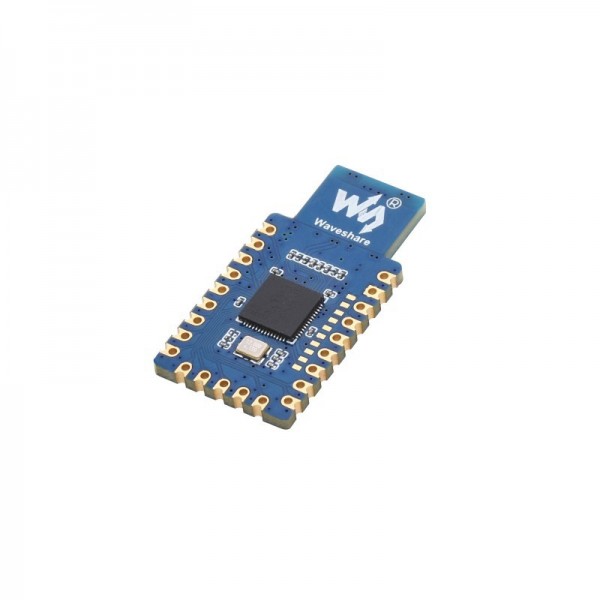

The RP2040-One from Waveshare is a small development board based on the RP2040 microcontroller. A special feature is that it has a built-in USB-A connector so that it can be plugged directly into a computer.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare RP2040-One - 4MB Flash

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare RP2040-One - 4MB Flash , WS-22809 , Others

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	22809
Features	Microcontroller (MCU) Programmable button(s)
General physical appearance
Main color	Blue
Weight [g]	3

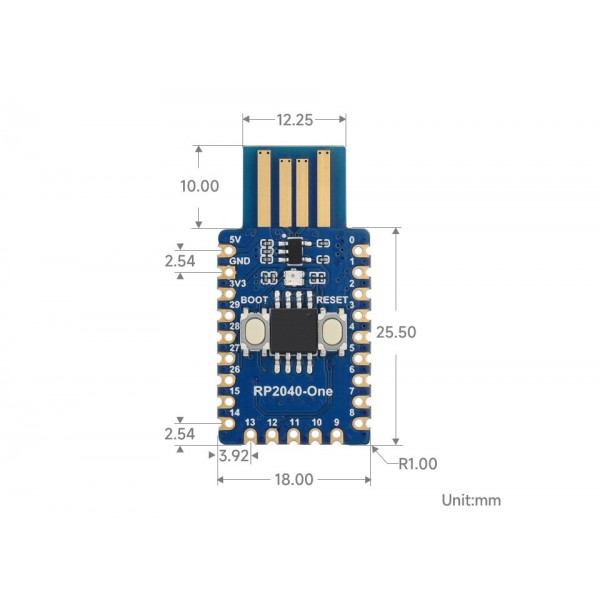

Dimension X [mm]	26
Dimension Y [mm]	18
Mounting options	SMT
Form factor	Module (general) USB stick
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU
Manufacturer	Raspberry Pi
Chip series	RP2040
Maximum clock frequency [MHz]	133
Number of cores	1
Internal memory
SRAM [KB]	258 (264kB)
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication

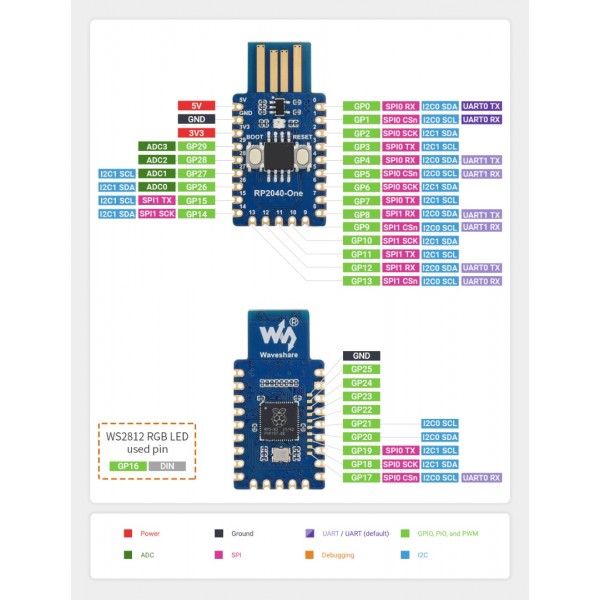

Hardware interface(s)	I2C SPI Native USB UART PWM ADC GPIO PIO USB CDC
Number of IO-pins	29
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	4
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-A male
IO-connector(s)	Solder pad(s) Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-A male
Package contents
Package contents	1x RP2040-one
