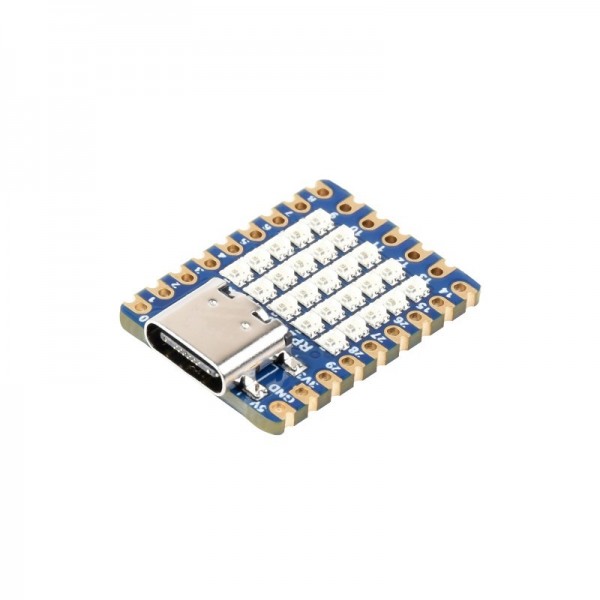

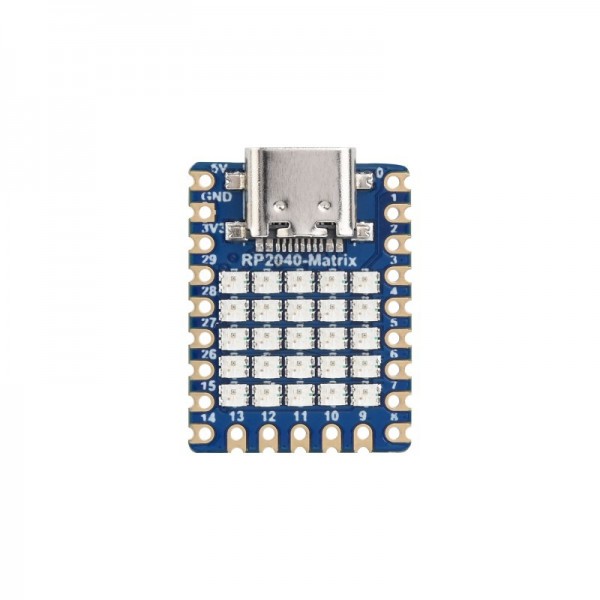

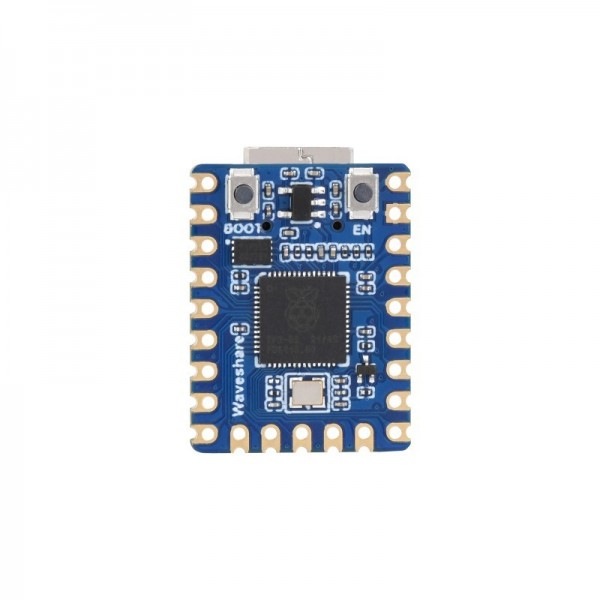

Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B

Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B
Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B
Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B
Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B
Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B
Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B
Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005982
Based on 0 review(s) - Write a review
€8.00
Ex Tax: €6.61
Add to Cart
Add to wishlist

A development board based on Raspberry Pi RP2040 with a small RGB LED matrix as special feature.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Others , Waveshare RP2040-Matrix - 5x5 RGB LED Matrix - WS2812B , 005982 , Waveshare , 24594 , Display , Microcontroller (MCU) , Digital LED(s) , I2C , SPI , Native USB , UART , PWM , ADC , GPIO , PIO , USB CDC

Specifications

General
Brand Waveshare
Manufacturer model/SKU 24594
Features Display
Digital LED(s)
Microcontroller (MCU)
General physical appearance
Main color Blue
Weight [g] 3
Dimension X [mm] 24
Dimension Y [mm] 18
Mounting options SMT
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 12
Maximum IO-pin sink current [mA] 12
MCU
Manufacturer Raspberry Pi
Chip series RP2040
Maximum clock frequency [MHz] 133
Number of cores 2
Internal memory
SRAM [KB] 258
PSRAM [MB] 0
Flash memory [MB] 2
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
PIO
PWM
SPI
GPIO
UART
USB CDC
Native USB
Number of IO-pins 20
Maximum available hardware PWM channels 16
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Display
Type LED Matrix
Number of pixels long side 5
Number of pixels short side 5
Display shape Rectangular
Pixel colors RGB
Light source
Type LED
LED (driver) chip WS2812B
Light color RGB
Number of LEDs 25
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x RP2040-Matrix
