This microcontroller from Waveshare, based on the RP2040 chip from Raspberry Pi, has the same form factor as the original Raspberry Pi Pico. This makes it possible to use this module with most accessories made for the original Pico. In addition, this module also has a built-in 0.96inch TFT display and a Li-ion/Li-Po charging circuit.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare RP2040-LCD-0.96 Pico - with 0.96 Inch IPS Display and Soldered Headers

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare RP2040-LCD-0.96 Pico - with 0.96 Inch IPS Display and Soldered Headers , WS-20891 , Others

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20891
Model revision	Rev 2.0
Features	Display Microcontroller Battery holder
General physical appearance
Main color	Blue
Weight [g]	8
Dimension X [mm]	51
Dimension Y [mm]	21
Mounting options	Pin headers
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	1.8
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU/SoC
Manufacturer	Raspberry Pi
Chip series	RP2040
Maximum clock frequency [MHz]	133
Number of cores	2
Internal memory
SRAM [KB]	258 (264kB)
PSRAM [MB]	0
Flash memory [MB]	2
EEPROM type	Emulated
Communication

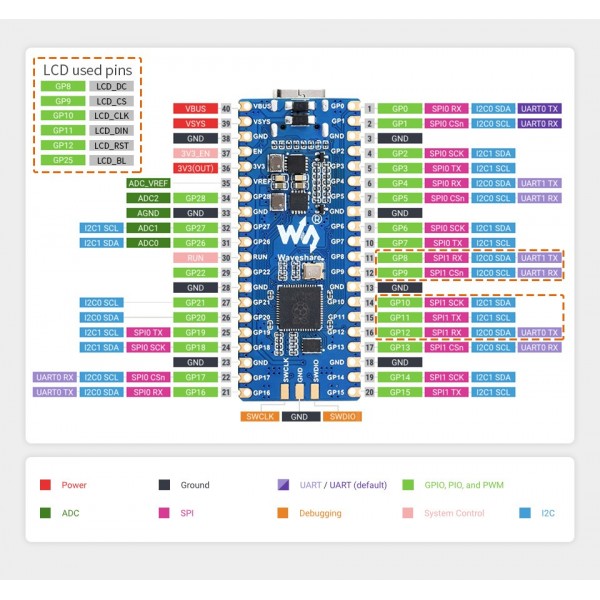

Hardware interface(s)	I2C SPI Native USB UART PWM ADC GPIO PIO USB CDC
Number of IO-pins	26
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Display
Type	IPS
Driver	ST7735S
Screen diagonal [inch]	0.96
Number of pixels long side	160
Number of pixels short side	80
Pixel colors	RGB
Battery circuit
Battery charger chip/SoC	ETA6096
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	1000
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Pin header male (2.54mm) USB-C female
IO-connector(s)	Pin header male (2.54mm) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Pin distance [mm]	2.54
Package contents
Package contents	1x RP2040-LCD-0.96 with soldered headers
