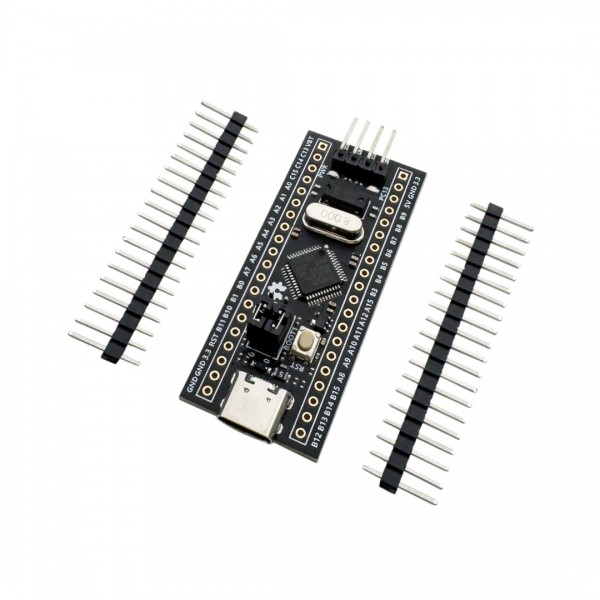

STM32F103C8T6 Development Board - Blue Pill

New

STM32F103C8T6 Development Board - Blue Pill

Availability: Directly available from warehouse in Eindhoven
SKU: 007227

Based on 0 review(s) - Write a review

€5.25

Ex Tax: €4.34

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A development board from Nologo based on a STM32F103 microcontroller by STMicroelectronics.

To program the board you need a USB to serial converter, or an ST-Link. See the following video for a tutorial with both options, and how to upload a bootloader so you can program the board via USB: Youtube

See the following page for more information: Wiki

Please login or register to review

Reviews Over STM32F103C8T6 Development Board - Blue Pill

Average Rating:

This product has 0 review(s) in total.

Tags: STM32F103C8T6 Development Board - Blue Pill , STM32F103C8T6 , Others

Specifications

General
Brand	Nologo
Features	Microcontroller (MCU)
General physical appearance
Main color	Black
Weight [g]	6
Dimension X [mm]	54
Dimension Y [mm]	23
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	8
Maximum IO-pin sink current [mA]	8
MCU
Manufacturer	STMicroelectronics
Chip series	STM32F103
Maximum clock frequency [MHz]	72
Number of cores	1
Internal memory
SRAM [KB]	20
PSRAM [MB]	0
Flash memory [MB]	0.063
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC I2C PWM SPI GPIO UART USB CDC Native USB
Available GPIO pins	A0, A1, A2, A3, A4, A5, A6, A7, A8, A9, B0, B1, B3, B4, B5, B6, B7, B8, B9, A10, A11, A12, A13, A14, A15, B10, B11, B12, B13, B14, B15, C13, C14, C15
Number of IO-pins	34
Maximum available hardware PWM channels	15
Maximum available analog input pins (ADC)	10
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller (custom bootloader required)
Connectors
Power supply connector(s)	USB-C female Through hole solder pin(s) (2.54mm)
IO-connector(s)	USB-C female Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x Development board 2x Male pin header 20p
