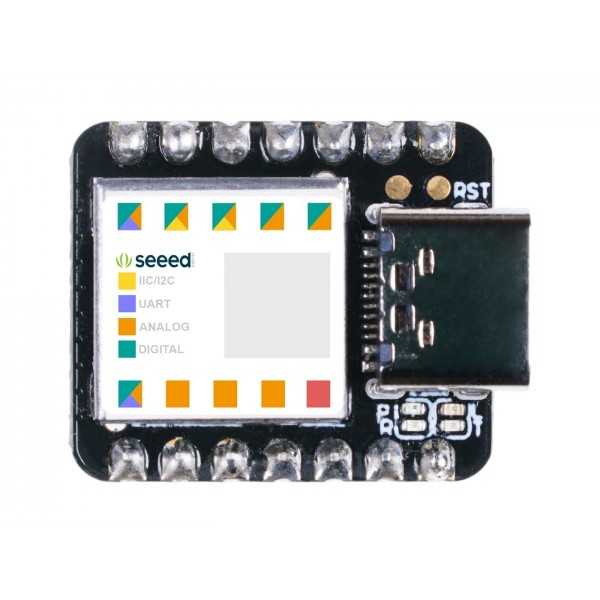

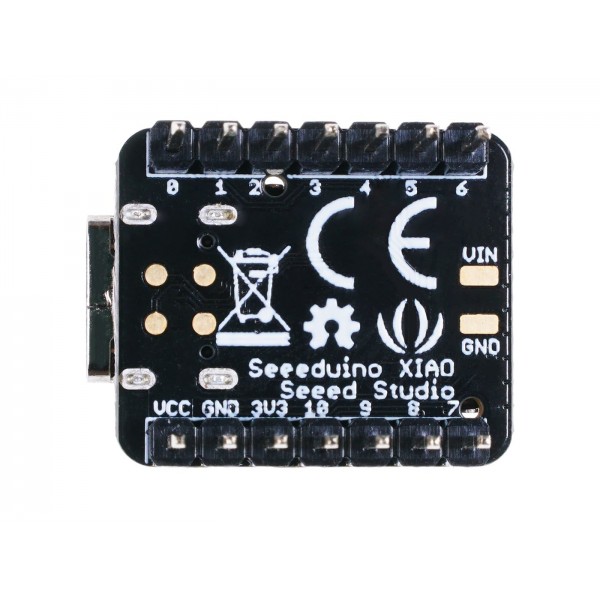

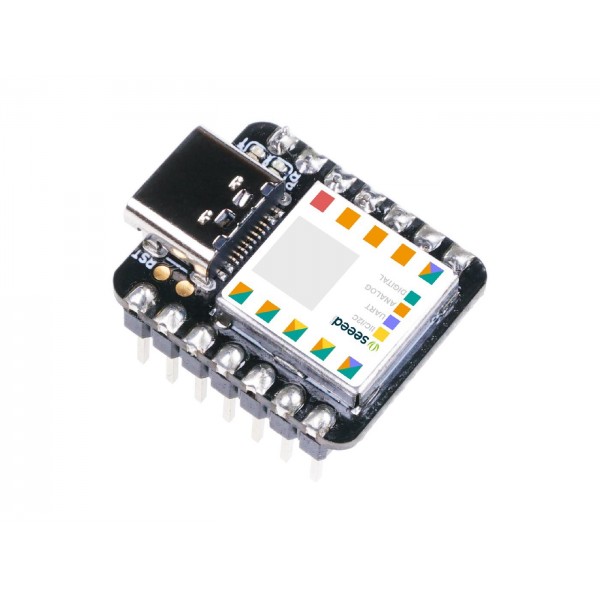

Seeed Studio Seeeduino XIAO - Cortex-M0+ - SAMD21

The Seeeduino XIAO from Seeed Studio is a small but powerful microcontroller with an ARM Cortex-M0+ microchip. The XIAO has many I/O ports for its size, moreover it has 3 different interfaces including I2C and UART. Thanks to the USB-C port, this board is easy to program using the well-known Arduino IDE.

Seeed Studio is known for the easy connection of sensors and modules using the Grove connectors and cables. However, this XIAO does not have Grove connectors, but Seeed has a solution for this, namely the Grove Shield for Seeeduino XIAO.

Specifications:

• Supply voltage: 3.3V DC (via 3V3 pin) or 5V DC (via USB-C or 5V/VIN pin)
• GPIO voltage: 3.3V*
• Microcontroller:
  • Chip: ARM Cortex-M0+ 32 bit (SAMD21G18)
  • Clock frequency: 48MHz
  • Flash memory: 256KB
  • SRAM: 32KB
• GPIO pins:
  • 11 Analog Pins
  • 11 Digital Pins
  • 1 DAC pin
• Interfaces:
  • 1x I2C
  • 1x UART
  • 1x SPI
• USB-C port available for powering and programming the board
• Programmable with the Arduino IDE

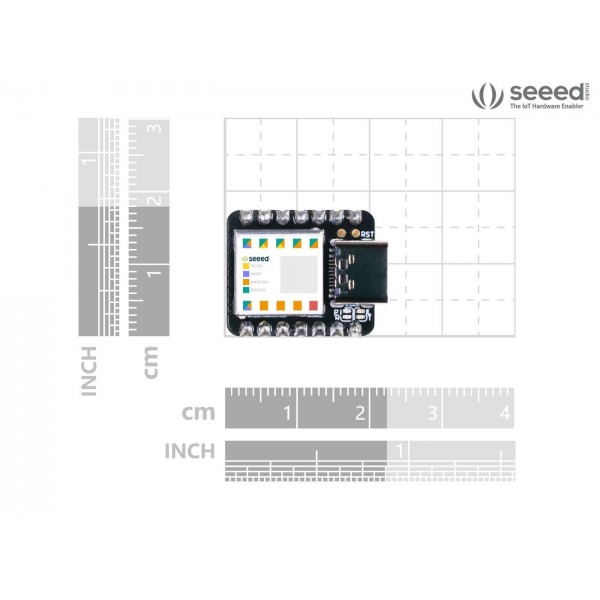

• Dimensions: See images

Package contents:

• 1x Seeeduino XIAO
• 4x Sticker with pinout

See the following page for more information: Seeeduino XIAO.

*Note: The pins on the board are directly connected to the SAMD21 chip and are only suitable for 3.3V signals.
