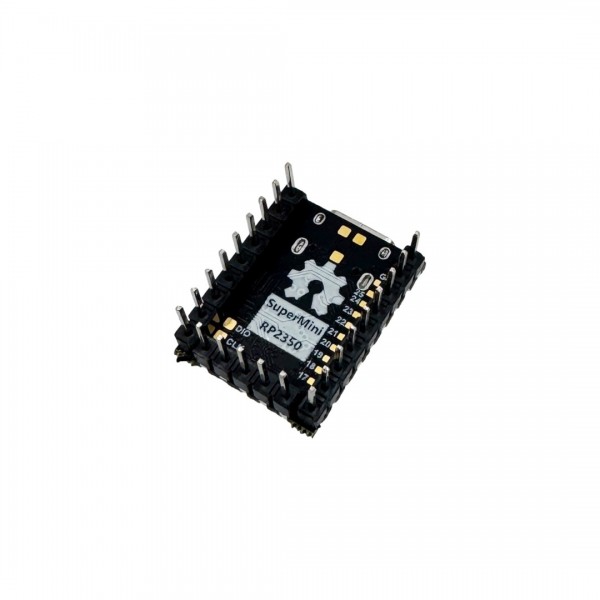

RP2350 SuperMini Development Board - Soldered Headers

RP2350 SuperMini Development Board - Soldered Headers
RP2350 SuperMini Development Board - Soldered Headers
RP2350 SuperMini Development Board - Soldered Headers
RP2350 SuperMini Development Board - Soldered Headers
RP2350 SuperMini Development Board - Soldered Headers
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007212
Based on 0 review(s) - Write a review
€6.75
Ex Tax: €5.58
Add to Cart
Add to wishlist

A development board from Nologo based on a RP2350 microcontroller by Raspberry Pi. Thanks to the built-in USB connector, it is easy to program.

Please login or register to review

Reviews Over RP2350 SuperMini Development Board - Soldered Headers

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Others , RP2350 SuperMini Development Board - Soldered Headers , 007212 , Nologo , Microcontroller (MCU) , Digital LED(s) , I2C , SPI , Native USB , UART , PWM , ADC , GPIO , PIO , USB CDC

Specifications

General
Brand Nologo
Features Digital LED(s)
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 3
Dimension X [mm] 24
Dimension Y [mm] 18
Mounting options Pin headers
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
(via 3V3 pin)
5
(via USB/5V pin)
Maximum supply voltage [V DC] 5
(via USB/5V pin)
3.3
(via 3V3 pin)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 12
Maximum IO-pin sink current [mA] 12
MCU
Manufacturer Raspberry Pi
Chip series RP2350
Maximum clock frequency [MHz] 150
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 0
Flash memory [MB] 4
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
PIO
PWM
SPI
GPIO
UART
USB CDC
Native USB
Available GPIO pins 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 26, 27, 28, 29
Number of IO-pins 20
Maximum available hardware PWM channels 16
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Light source
Type LED
LED (driver) chip WS2812B
Light color RGB
Connectors
Power supply connector(s) USB-C female
Pin header male (2.54mm)
IO-connector(s) USB-C female
Pin header male (2.54mm)
Package contents
Package contents 1x Development board
