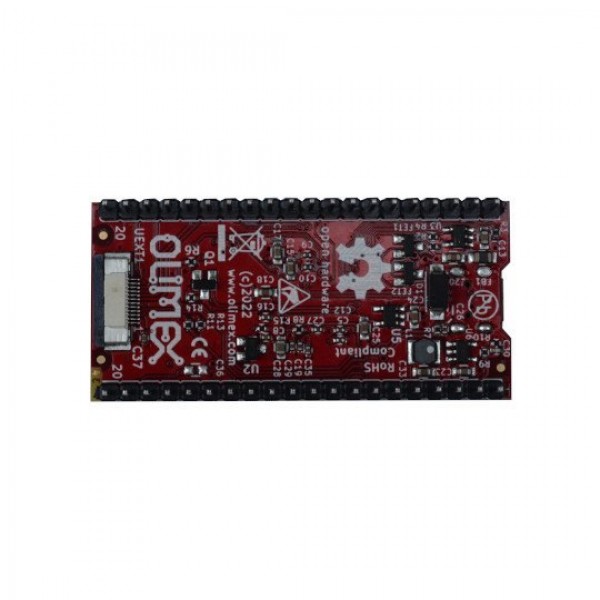

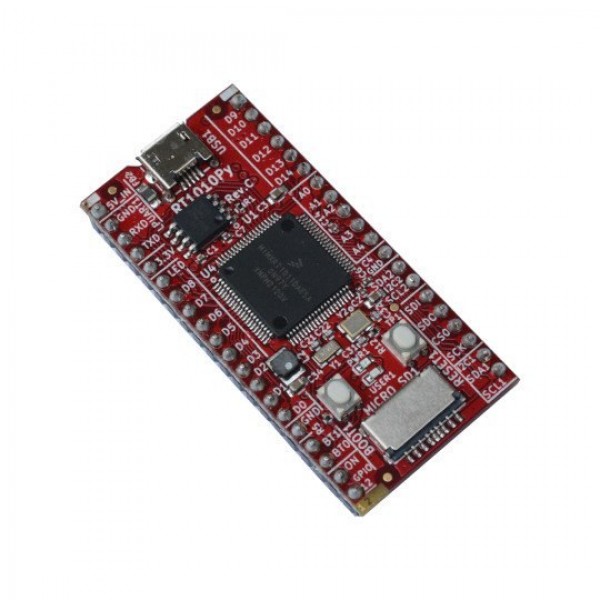

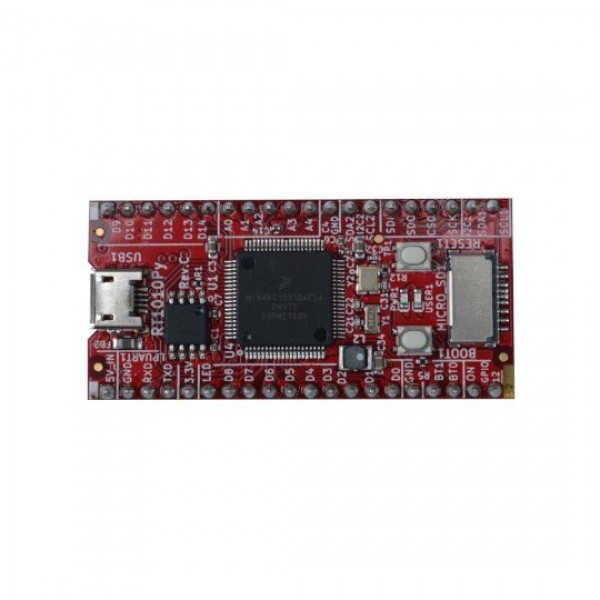

Olimex RT1010-Py Development Board

Availability: Directly available from warehouse in Eindhoven
SKU: 005791

Based on 0 review(s) - Write a review

€18.50

Ex Tax: €15.29

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A development board from Olimex that can be programmed with MicroPython. The board has a micro-USB connection that allows it to be programmed and/or powered (USB cable not included)

See the following page for more information: GitHub

Please login or register to review

Reviews Over Olimex RT1010-Py Development Board

Average Rating:

This product has 0 review(s) in total.

Tags: Olimex RT1010-Py Development Board , OL-RT1010-Py , Others

Specifications

General
Brand	Olimex
Manufacturer model/SKU	RT1010-Py
Model revision	C
Norm conformity	RoHS
Features	Microcontroller (MCU) SD-card adapter
General physical appearance
Main color	Red
Weight [g]	10
Dimension X [mm]	53
Dimension Y [mm]	26
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
MCU
Manufacturer	NXP
Chip series	iMXRT1010 (MIMXRT1011DAE5A)
Maximum clock frequency [MHz]	500
Number of cores	1
Internal memory
SRAM [KB]	128
Flash memory [MB]	2
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO USB CDC
Number of IO-pins	32
Maximum available hardware PWM channels	4
Maximum available analog input pins (ADC)	5
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Supported SD card size	Micro SD
Connectors
Power supply connector(s)	Pin header male (2.54mm) Micro USB female
IO-connector(s)	Pin header male (2.54mm) Micro USB female
Package contents
Package contents	1x RT1010-Py
