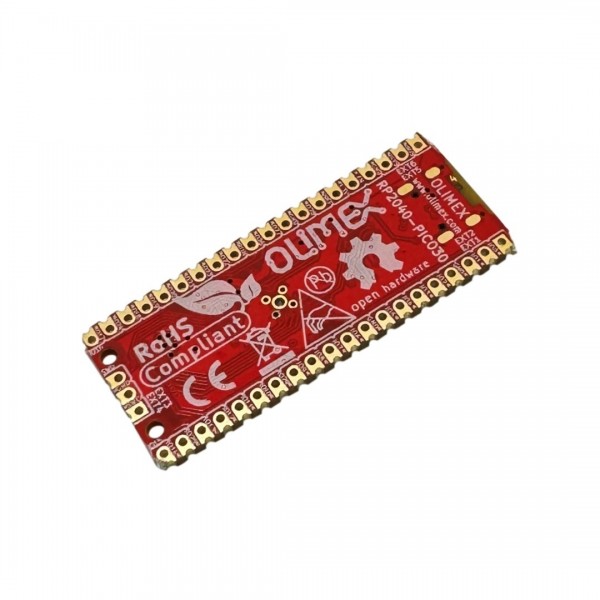

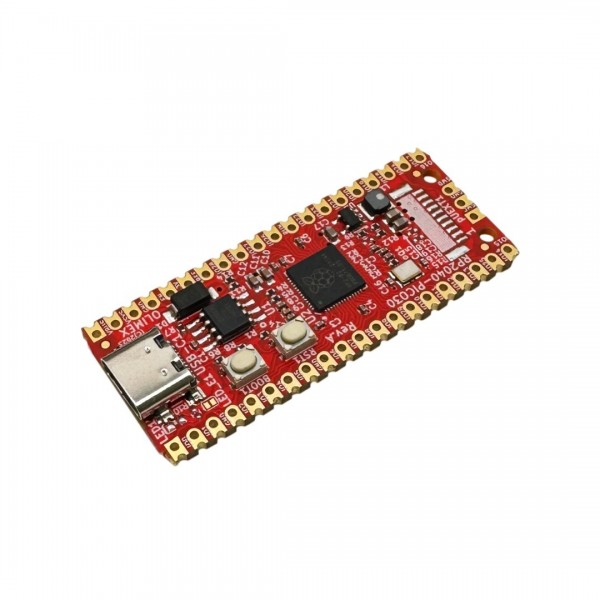

Olimex RP2040-PICO30-16 Development Board

Availability: Directly available from warehouse in Eindhoven
SKU: 005953

Based on 0 review(s) - Write a review

€8.75

Ex Tax: €7.23

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

A development by Olimex based on the Rasbperry Pi Pico. However, this module replaces 4 GND pins for 4 extra GPIO pins.

Note: If the board is used in combination with: a shield/HAT for the Raspberry Pi Pico, then initialize the following pins as "INPUT" (these pins are GND pins on the original Raspberry Pi Pico):

GPIO23
GPIO24
GPIO25
GPIO29

See the following page for more information: GitHub

Please login or register to review

Reviews Over Olimex RP2040-PICO30-16 Development Board

Average Rating:

This product has 0 review(s) in total.

Tags: Olimex RP2040-PICO30-16 Development Board , OL-RP2040-PICO30-16 , Others

Specifications

General
Brand	Olimex
Manufacturer model/SKU	RP2040-PICO30-16
Model revision	A
Features	Microcontroller (MCU)
General physical appearance
Main color	Red
Weight [g]	5
Dimension X [mm]	51
Dimension Y [mm]	21
Mounting options	SMT Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	2.7
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU
Manufacturer	Raspberry Pi
Chip series	RP2040
Maximum clock frequency [MHz]	133
Number of cores	2
Internal memory
SRAM [KB]	258 (264kB)
PSRAM [MB]	0
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C SPI Native USB UART PWM ADC GPIO PIO USB CDC
Number of IO-pins	30
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	4
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
Package contents
Package contents	1x RP2040-PICO30-16
