Olimex OLIMEXINO-STM32

Availability: Directly available from warehouse in Eindhoven
SKU: 005294

Based on 0 review(s) - Write a review

€26.00

Ex Tax: €21.49

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

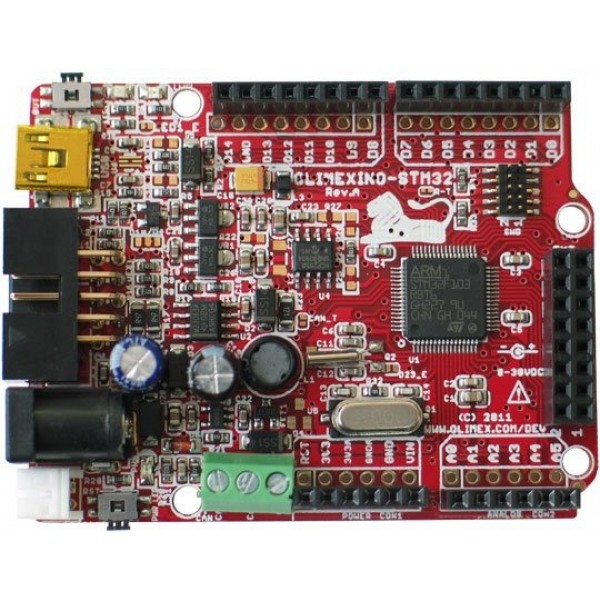

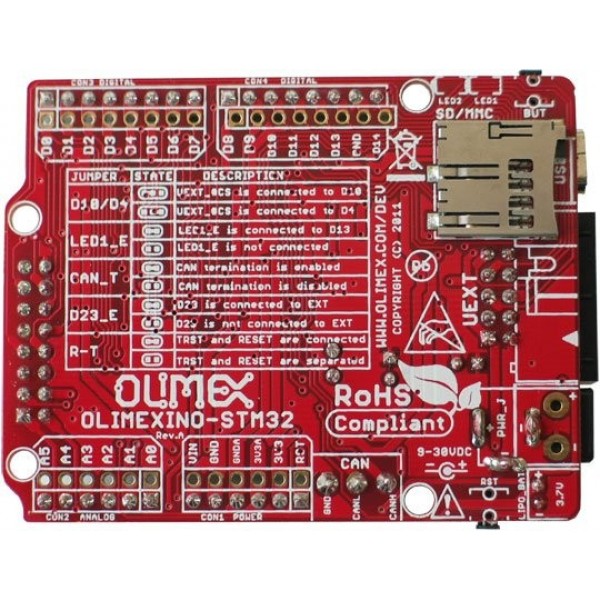

A development board from Olimex based on an STM32F103 microcontroller with the form factor of an Arduino Uno.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Olimex OLIMEXINO-STM32

Average Rating:

This product has 0 review(s) in total.

Tags: Olimex OLIMEXINO-STM32 , OL-OLIMEXINO-STM32 , Others

Specifications

General
Brand	Olimex
Manufacturer model/SKU	OLIMEXINO-STM32
Model revision	G
Norm conformity	RoHS
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	85
Features	Battery charger Microcontroller (MCU) SD-card adapter Programmable button(s)
General physical appearance
Main color	Red
Weight [g]	28
Dimension X [mm]	69
Dimension Y [mm]	54
Mounting options	Mounting hole(s)
Form factor	Module (general) Uno layout/shield
General electrical properties
Minimum supply voltage [V DC]	5 (via USB/5V pin) 9 (via DC Jack/Vin pin)
Maximum supply voltage [V DC]	30 (via DC Jack/Vin pin) 5 (via USB/5V pin)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	8
Maximum IO-pin sink current [mA]	20
MCU
Manufacturer	STMicroelectronics
Chip series	STM32F103
Maximum clock frequency [MHz]	72
Number of cores	1
Internal memory
SRAM [KB]	20
Flash memory [MB]	0.128
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C SPI UART PWM ADC GPIO USB CDC CAN
Number of IO-pins	36
Maximum available hardware PWM channels	60
Maximum available analog input pins (ADC)	14
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
CAN bus controller	STM32F103
CAN bus tranceiver	MCP2551
Number of CAN bus channels	1
Supported SD card size	Micro SD
Battery circuit
Battery charger chip/SoC	MCP73812T
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	70
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Pin header female (2.54mm) Through hole solder pin(s) (2.54mm) Mini USB female DC-jack 5.5/2.1mm female
IO-connector(s)	Screw terminal Pin header male (2.54mm) Pin header female (2.54mm) Through hole solder pin(s) (2.54mm) Mini USB female
Battery connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x OLIMEXINO-STM32
