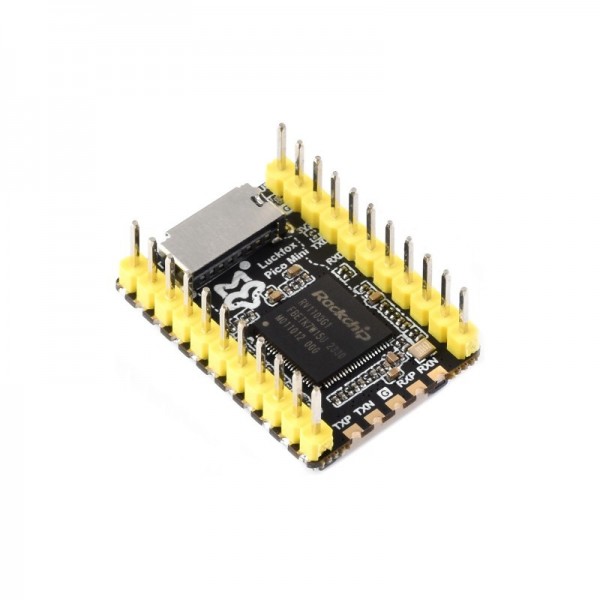

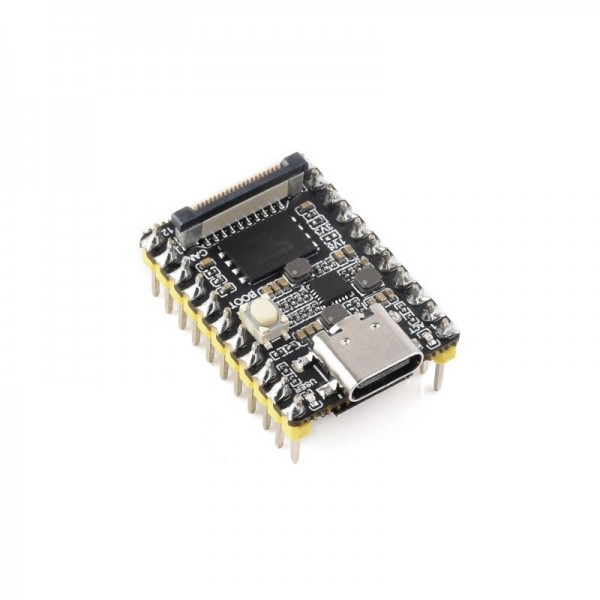

Luckfox Pico Mini B M - Linux Development Board - RV1103 - 128MB Flash - Soldered Headers

Availability: Directly available from warehouse in Eindhoven
SKU: 006069

Based on 0 review(s) - Write a review

€12.50

Ex Tax: €10.33

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A very small development board that runs on a Linux distribution. The internal image signal processor (ISP) and CSI camera interface make this board suitable for use in computer vision projects, for example.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Luckfox Pico Mini B M - Linux Development Board - RV1103 - 128MB Flash - Soldered Headers

Average Rating:

This product has 0 review(s) in total.

Tags: Luckfox Pico Mini B M - Linux Development Board - RV1103 - 128MB Flash - Soldered Headers , WS-25868 , Others

Specifications

General
Brand	Luckfox
Manufacturer model/SKU	25868
Features	Microcontroller SD-card adapter
General physical appearance
Main color	Black
Weight [g]	5
Dimension X [mm]	28
Dimension Y [mm]	21
Mounting options	SMT
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3 (GPIO) 1.8 (ADC)
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	6
Maximum IO-pin sink current [mA]	6
MCU/SoC
Manufacturer	Rockchip
Chip series	RV1103
Maximum clock frequency [MHz]	1200
Number of cores	1
Internal memory
SDRAM [MB]	64
Flash memory [MB]	128
Communication

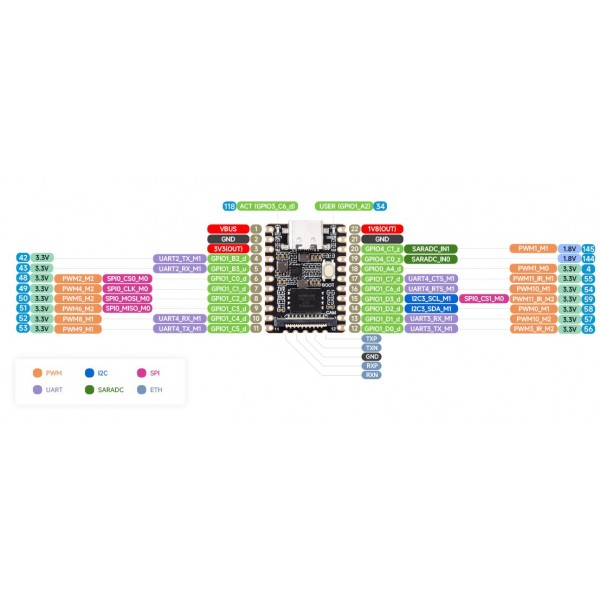

Hardware interface(s)	CSI I2C SPI Native USB UART PWM ADC GPIO
Number of IO-pins	17
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	2
Maximum ADC measuring voltage [V]	1.8
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
Supported SD card size	Micro SD
Connectors
Power supply connector(s)	Pin header male (2.54mm) USB-C female
IO-connector(s)	Pin header male (2.54mm) USB-C female FFC female 20p 0.50mm
Package contents
Package contents	1x Luckfox Pico Mini B M
