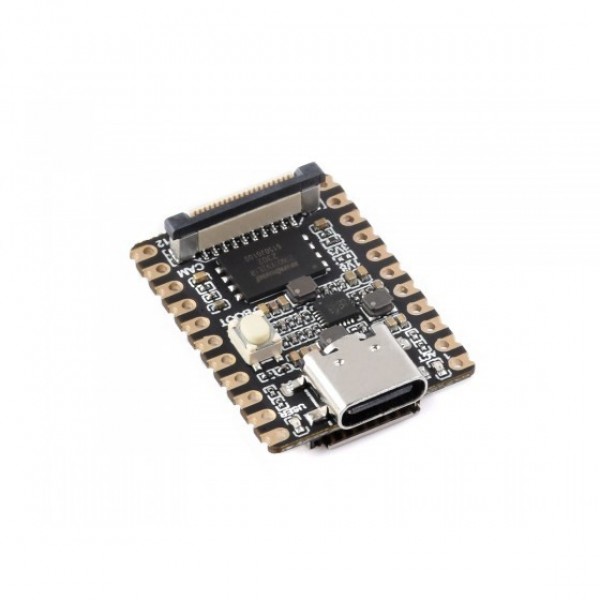

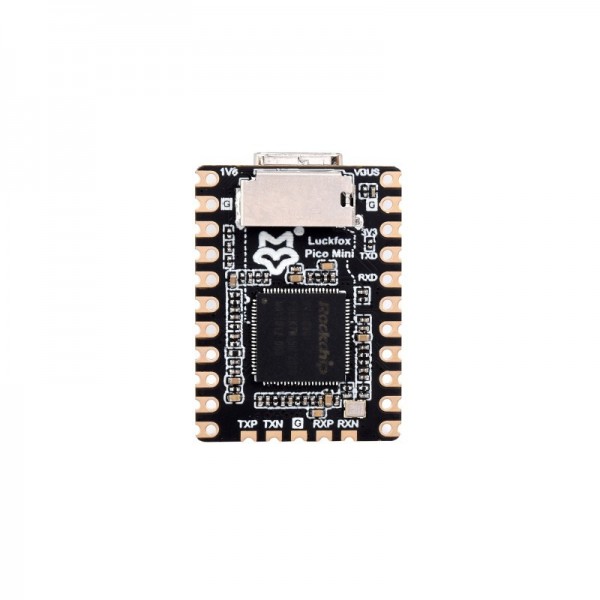

Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash

Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005981
Based on 0 review(s) - Write a review
€18.50
Ex Tax: €15.29
Add to Cart
Add to wishlist

A very small development board that runs on a Linux distribution. The internal image signal processor (ISP) and CSI camera interface make this board suitable for use in computer vision projects, for example.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Others , Luckfox Pico Mini B - Linux Development Board - RV1103 - 128MB Flash , 005981 , Luckfox , 25722 , Microprocessor (MPU) , SD-card adapter , Native USB , UART , GPIO , SPI , PWM , I2C , MIPI (CSI) , ADC

Specifications

General
Brand Luckfox
Manufacturer model/SKU 25722
Features SD-card adapter
Microprocessor (MPU)
General physical appearance
Main color Black
Weight [g] 3
Dimension X [mm] 28
Dimension Y [mm] 21
Mounting options SMT
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
(GPIO)
1.8
(ADC)
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 6
Maximum IO-pin sink current [mA] 6
MPU
Manufacturer Rockchip
Chip series RV1103
Maximum clock frequency [GHz] 1.2
Number of cores 1
Internal memory
SDRAM [MB] 64
Flash memory [MB] 128
Communication
Hardware interface(s) ADC
I2C
PWM
SPI
GPIO
UART
MIPI (CSI)
Native USB

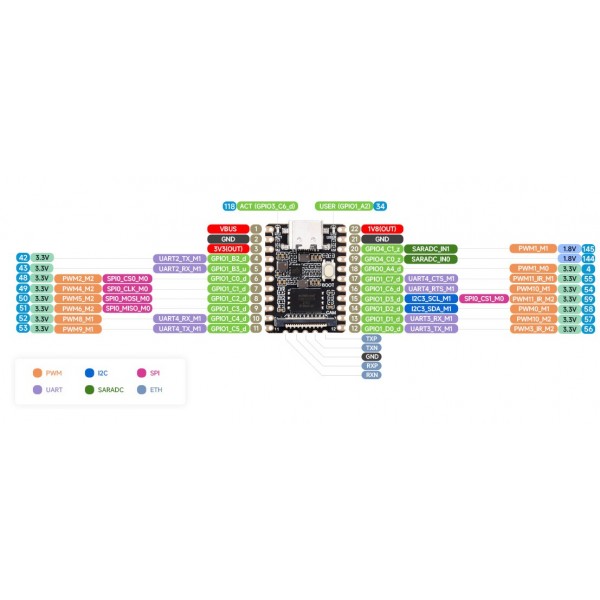

Number of IO-pins 17
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 2
Maximum ADC measuring voltage [V] 1.8
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
Supported SD card size Micro SD
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
Solder pin(s) (SMT)
FFC female 20p 0.50mm
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Luckfox Pico Mini B
