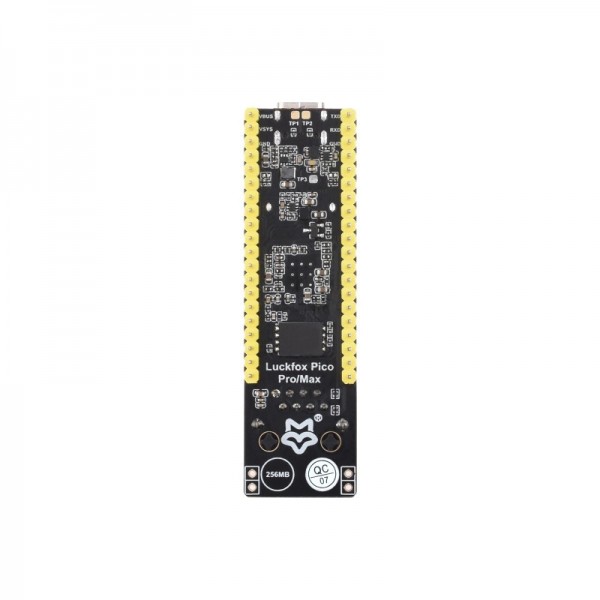

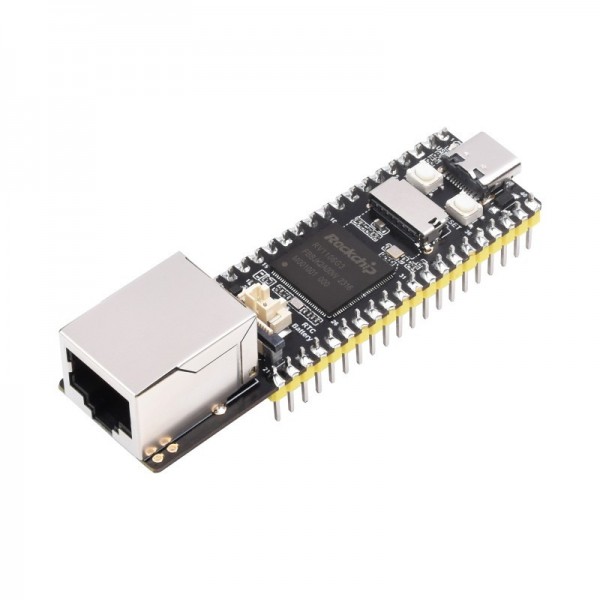

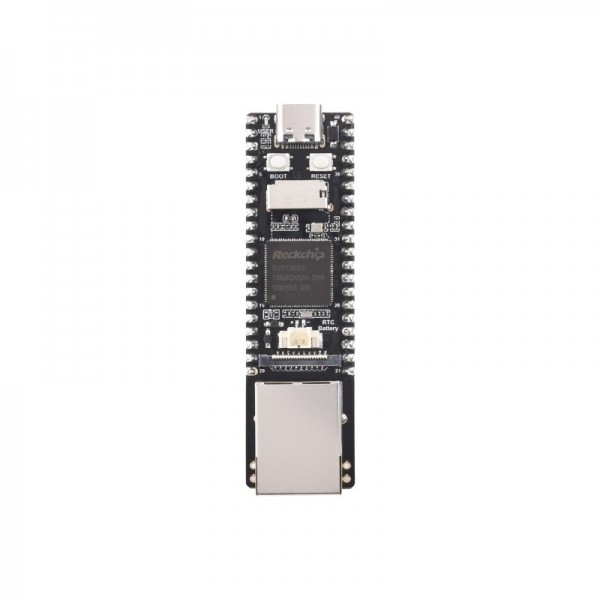

Luckfox Pico Max M - Linux Development Board - RV1106 - 256MB RAM - Soldered Headers

Availability: Directly available from warehouse in Eindhoven
SKU: 006272

Based on 0 review(s) - Write a review

€17.25

Ex Tax: €14.26

Qty

Add to Cart

Add to wishlist

Only 8 pieces in stock

Description
Reviews

A development board that runs on a Linux distribution. The internal image signal processor (ISP) and CSI camera interface make this board suitable for use in computer vision projects, for example.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Luckfox Pico Max M - Linux Development Board - RV1106 - 256MB RAM - Soldered Headers

Average Rating:

This product has 0 review(s) in total.

Tags: Luckfox Pico Max M - Linux Development Board - RV1106 - 256MB RAM - Soldered Headers , WS-25720 , Others

Specifications

General
Brand	Luckfox
Manufacturer model/SKU	25720
Features	Microcontroller SD-card adapter RTC
General physical appearance
Main color	Black
Weight [g]	15

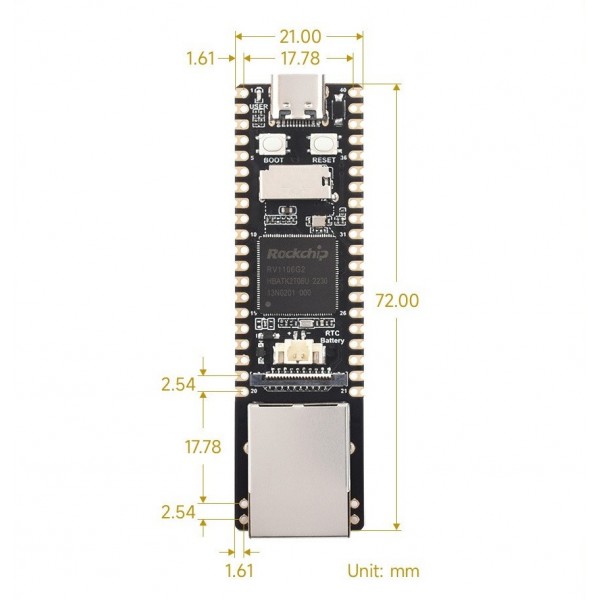

Dimension X [mm]	72
Dimension Y [mm]	21
Mounting options	SMT
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	6
Maximum IO-pin sink current [mA]	6
MCU/SoC
Manufacturer	Rockchip
Chip series	RV1106
Maximum clock frequency [MHz]	1200
Number of cores	1
Internal memory
SDRAM [MB]	256
Flash memory [MB]	256
Communication

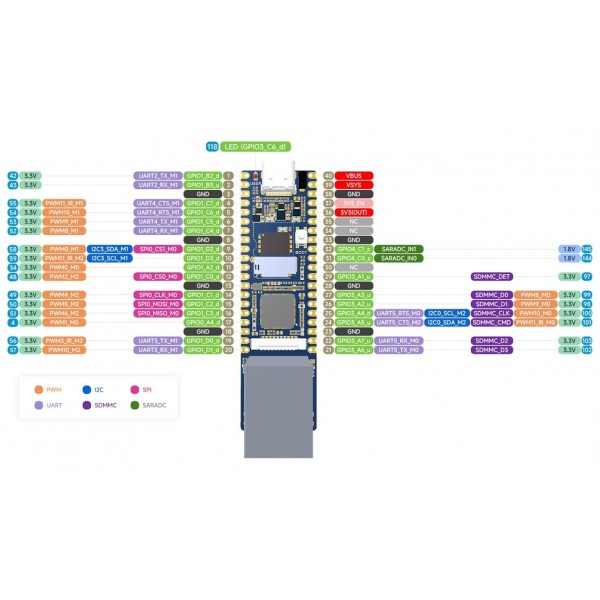

Hardware interface(s)	CSI I2C I2S SPI Native USB UART PWM ADC GPIO Ethernet
Number of IO-pins	26
Maximum available hardware PWM channels	14
Maximum available analog input pins (ADC)	2
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	4
Maximum available hardware I2C interfaces	3
Maximum available hardware SPI interfaces	1
Ethernet chip/SoC	RV1106
Supported SD card size	Micro SD
RTC
Back-up battery/capacitor	Optional
Connectors
Power supply connector(s)	Pin header male (2.54mm) USB-C female
IO-connector(s)	Pin header male (2.54mm) USB-C female RJ45 female
Battery connector(s)	Molex Picoblade (compatible) male (for RTC)
Package contents
Package contents	1x Luckfox Pico Max
