  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006093
Based on 0 review(s) - Write a review
€10.25
Ex Tax: €8.47
Add to Cart
Add to wishlist

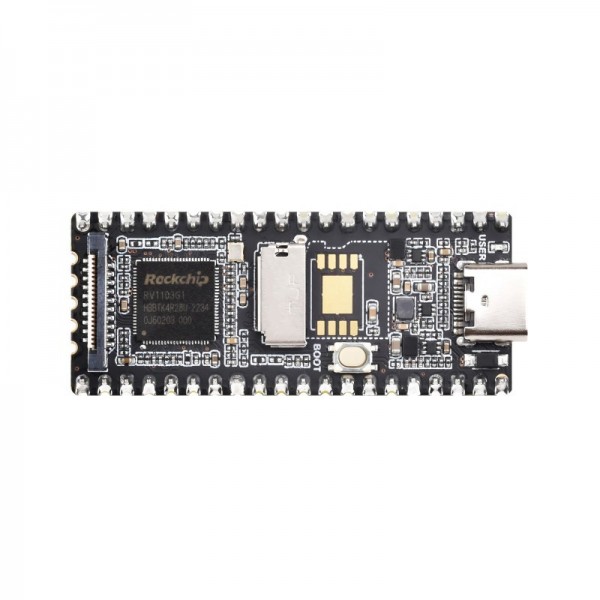

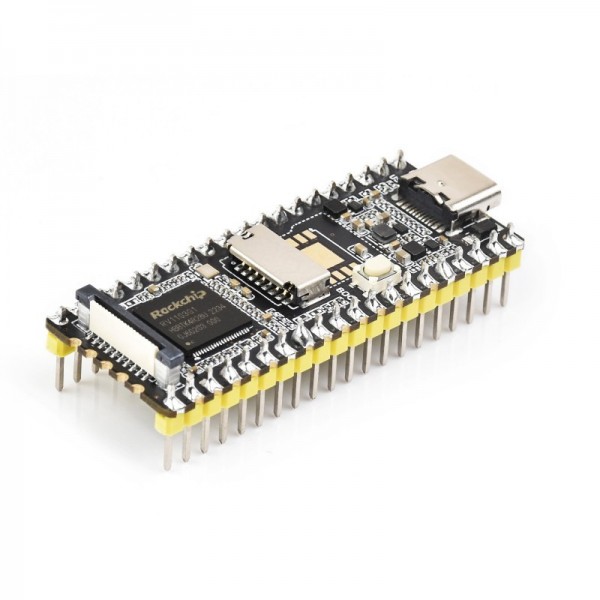

A development board that runs on a Linux distribution. The internal image signal processor (ISP) and CSI camera interface make this board suitable for use in computer vision projects, for example.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Luckfox Pico M - Linux Development Board - RV1103 - Soldered Headers

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Others , Luckfox Pico M - Linux Development Board - RV1103 - Soldered Headers , 006093 , Luckfox , 25412 , SD-card adapter , Microprocessor (MPU) , Native USB , PWM , SPI , UART , ADC , MIPI (CSI) , GPIO , I2C

Specifications

General
Brand Luckfox
Manufacturer model/SKU 25412
Features SD-card adapter
Microprocessor (MPU)
General physical appearance
Main color Black
Weight [g] 7
Dimension X [mm] 51
Dimension Y [mm] 21
Mounting options SMT
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
(GPIO)
1.8
(ADC)
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 6
Maximum IO-pin sink current [mA] 6
MPU
Manufacturer Rockchip
Chip series RV1103
Maximum clock frequency [GHz] 1.2
Number of cores 1
Internal memory
SDRAM [MB] 64
Flash memory [MB] 0
Communication

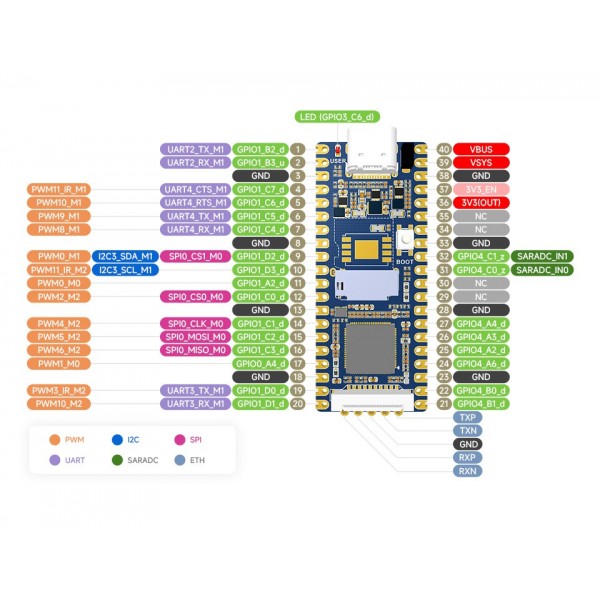

Hardware interface(s) ADC
I2C
PWM
SPI
GPIO
UART
MIPI (CSI)
Native USB
Number of IO-pins 24
Maximum available hardware PWM channels 14
Maximum available analog input pins (ADC) 2
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
Supported SD card size Micro SD
Connectors
Power supply connector(s) USB-C female
Pin header male (2.54mm)
IO-connector(s) USB-C female
FFC female 20p 0.50mm
Pin header male (2.54mm)
Package contents
Package contents 1x Luckfox Pico
