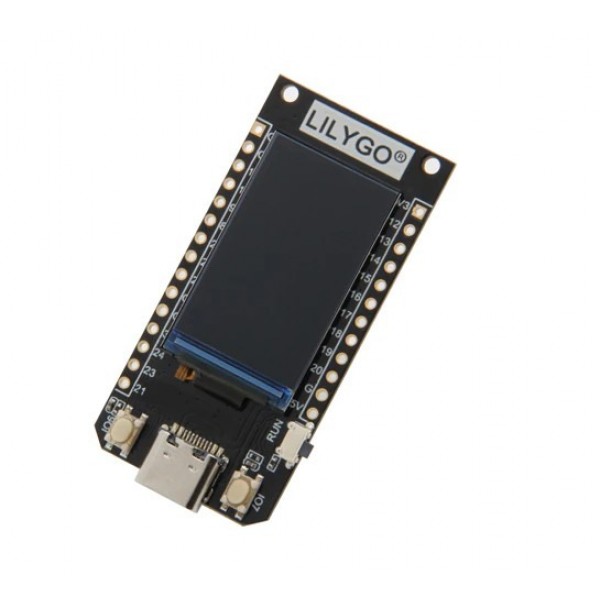

The T-Display RP2040 from LilyGO is a microcontroller based on an RP2040 from Raspberry Pi with a built-in 1.14 inch LCD display.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-Display RP2040 - with 1.14 inch TFT Display

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGO T-Display RP2040 - with 1.14 inch TFT Display , LILYGO-H520 , Others

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H520
Model revision	V1.2
Features	Battery charger Display Microcontroller Programmable button(s)
General physical appearance
Main color	Black
Weight [g]	7
Dimension X [mm]	52
Dimension Y [mm]	25
Mounting options	Mounting hole(s)
Form factor	Module (general) T-Display layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU/SoC
Manufacturer	Raspberry Pi
Chip series	RP2040
Maximum clock frequency [MHz]	133
Number of cores	2
Internal memory
SRAM [KB]	258 (264kB)
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication

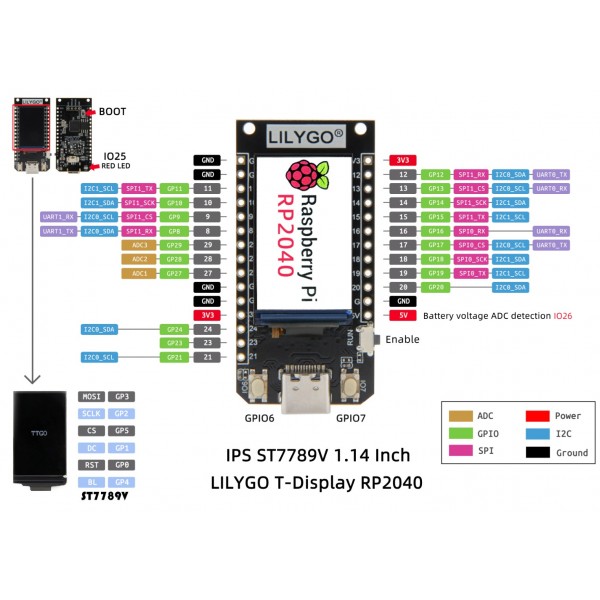

Hardware interface(s)	I2C SPI Native USB UART PWM ADC GPIO PIO USB CDC
Number of IO-pins	19
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	3
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Display
Type	TFT
Driver	ST7789
Screen diagonal [inch]	1.14
Number of pixels long side	240
Number of pixels short side	135
Pixel colors	RGB
Battery circuit
Battery charger chip/SoC	TP4054
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	No
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) USB-C female
Battery connector(s)	Molex Picoblade (compatible) male
Pin distance [mm]	2.54
Package contents

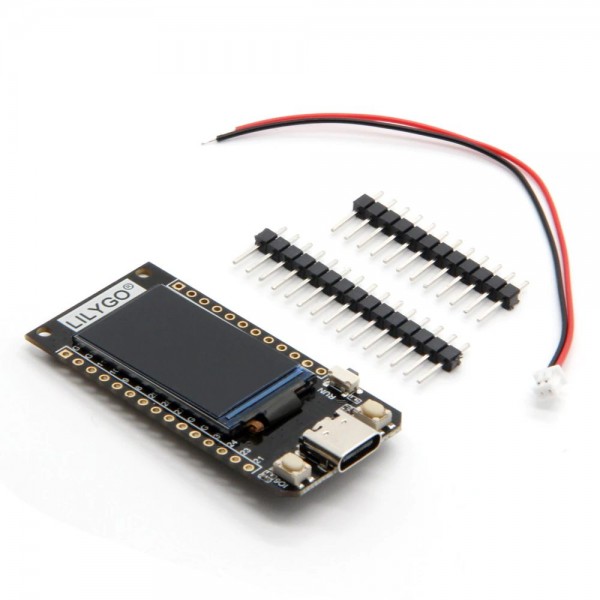

Package contents	1x T-Display RP2040 1x Male pinheader set 1x Battery cable
