CH552T SuperMini Development Board

CH552T SuperMini Development Board
CH552T SuperMini Development Board
2-4 Weeks
CH552T SuperMini Development Board
CH552T SuperMini Development Board
CH552T SuperMini Development Board
  • Availability: 2-4 Weeks
  • SKU: 007220
Based on 0 review(s) - Write a review
€3.50
Ex Tax: €2.89
Add to Cart
Add to wishlist

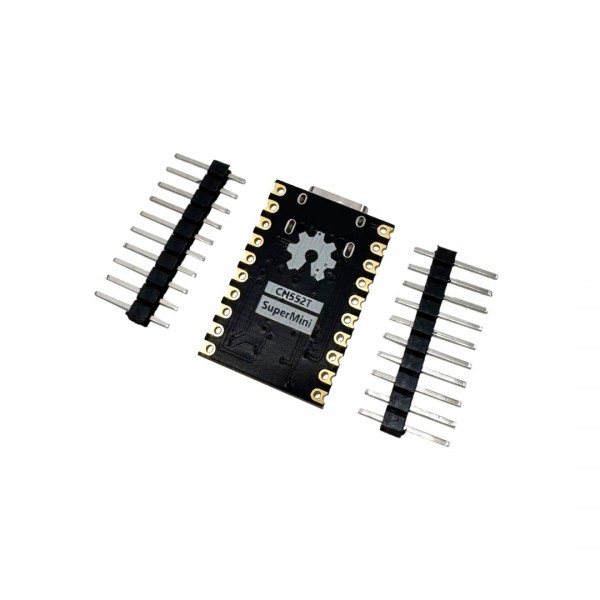

A development board from Nologo based on a CH552 microcontroller by WCH. Thanks to the built-in USB connector, it is easy to program.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over CH552T SuperMini Development Board

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Others , CH552T SuperMini Development Board , 007220 , Nologo , Microcontroller (MCU) , Native USB , GPIO , UART , USB CDC , ADC , PWM , SPI

Specifications

General
Brand Nologo
Features Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 26
Dimension Y [mm] 18
Mounting options SMT
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 1.2
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] 5
Maximum IO-pin source current [mA] 8
Maximum IO-pin sink current [mA] 12
MCU
Manufacturer WCH
Chip series CH552
Maximum clock frequency [MHz] 24
Number of cores 1
Internal memory
SRAM [KB] 1.25
Flash memory [MB] 0.016
EEPROM type Emulated
Communication
Hardware interface(s) ADC
PWM
SPI
GPIO
UART
USB CDC
Native USB
Number of IO-pins 16
Maximum available hardware PWM channels 2
Maximum available analog input pins (ADC) 4
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 2
Maximum available hardware I2C interfaces 0
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
Connectors
Power supply connector(s) USB-C female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-A female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Development board
2x Male pin header 10p
