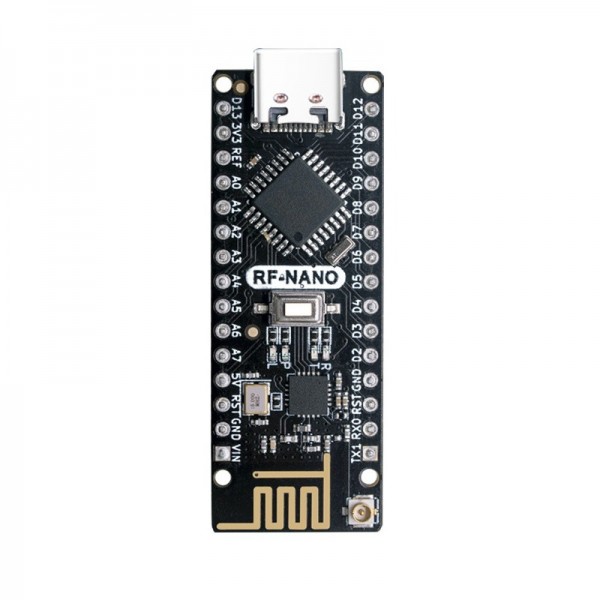

RF-Nano V3.0 - with Built-in NRF24L01

An Arduino Nano compatible board with a built-in NRF24L01 RF module.

Specifications:

• Supply voltage:
  • USB-C: 5V DC
  • VIN pin: 7-12V DC
• GPIO voltage: 5V
• Maximum GPIO current: 40mA
• Processor: ATmega328
  • Clock Frequency: 16MHz
  • Flash: 32KB
  • SRAM: 2KB
  • EEPROM: 1KB
• RF chip: NRF24L01 (see following page for more information about this module: NRF24L01)
• USB to serial converter: CH340
• Number of GPIO pins: 22
• Number of PWM pins: 6
• Number of analog input pins (ADC): 8
• Number of analog output pins (DAC): 0 (PWM only)
• Dimensions PCB: 48 x 19mm

CH340 drivers:

• Windows
• Mac OSX
• Linux
• Android

Package contents:

• 1x RF Nano V3.0

See the following video for a tutorial with this module: Getting Started with the RF Nano.
