Keyestudio PLUS Development Board - Uno R3 Compatible - ATMega328P

Availability: Directly available from warehouse in Eindhoven
SKU: 006347

Based on 0 review(s) - Write a review

€12.50

Ex Tax: €10.33

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

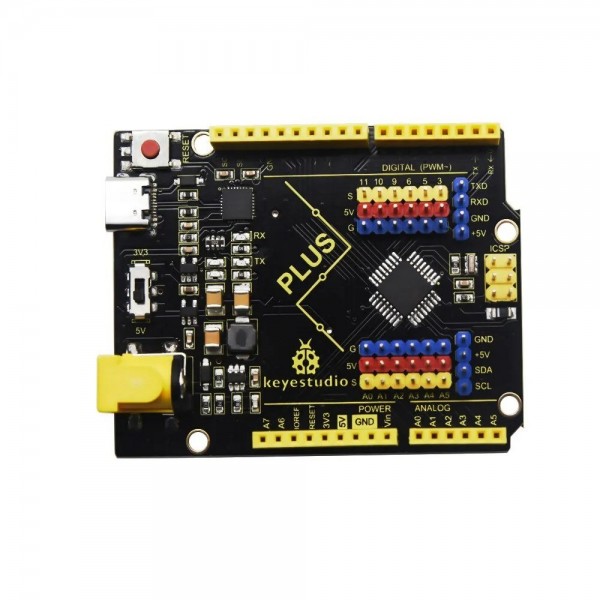

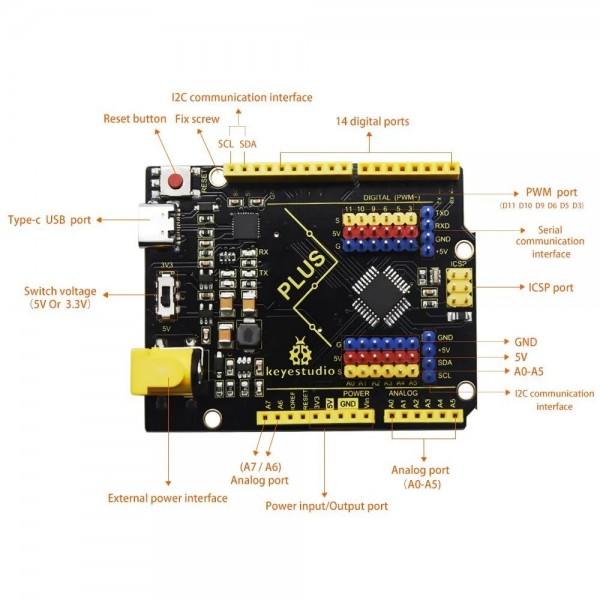

A development board from Keyestudio based on the ATMEGA328P chip with the form factor of an Arduino Uno. Unique to this board is that the IO voltage can be set to either 5V or 3.3V with the on-board switch.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Keyestudio PLUS Development Board - Uno R3 Compatible - ATMega328P

Average Rating:

This product has 0 review(s) in total.

Tags: Keyestudio PLUS Development Board - Uno R3 Compatible - ATMega328P , KS0486 , Arduino Compatible

Specifications

General
Brand	Keyestudio
Manufacturer model/SKU	KS0486
Features	Microcontroller (MCU)
General physical appearance
Main color	Black
Weight [g]	23
Dimension X [mm]	69
Dimension Y [mm]	53
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general) Uno layout/shield
General electrical properties
Minimum supply voltage [V DC]	5 (via USB-C) 6 (via DC jack)
Maximum supply voltage [V DC]	15 (via DC jack) 5 (via USB-C)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Adjustable 3.3V or 5V
Maximum IO-pin source current [mA]	20 (@5V) 10 (@3.3V)
Maximum IO-pin sink current [mA]	20 (@5V) 10 (@3.3V)
MCU
Manufacturer	Microchip/Atmel
Chip series	ATmega328P
Maximum clock frequency [MHz]	16
Number of cores	1
Internal memory
SRAM [KB]	2
PSRAM [MB]	0
Flash memory [MB]	0.031
EEPROM [B]	1024
EEPROM type	Built-in
Communication
Hardware interface(s)	ADC I2C SPI GPIO UART USB CDC
Number of IO-pins	22
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	8
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	1
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
USB to serial converter	CP2102
Connectors
Power supply connector(s)	USB-C female DC-jack 5.5/2.1mm female
IO-connector(s)	USB-C female Pin header male (2.54mm) Pin header female (2.54mm)
Package contents
Package contents	1x PLUS development board
