Arduino Uno R3 SMD

Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
Arduino Uno R3 SMD
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002535
Based on 0 review(s) - Write a review
€25.00
Ex Tax: €20.66
Add to Cart
Add to wishlist

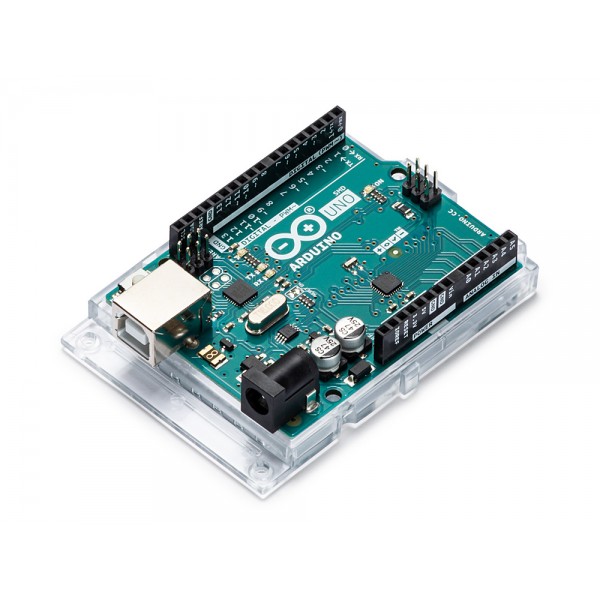

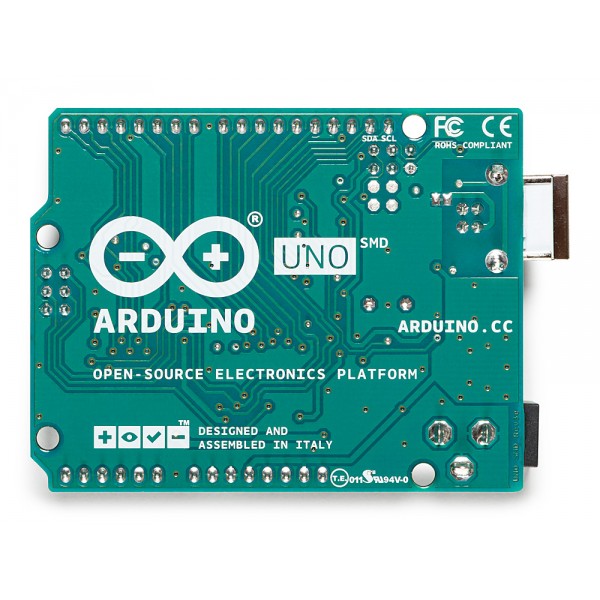

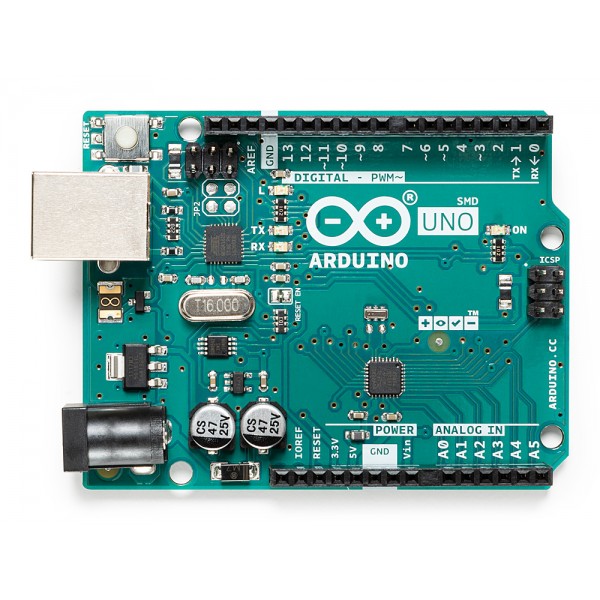

The Arduino Uno R3 is the standard microcontroller board from Arduino. This version of the board has an SMD ATmega328.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino Uno R3 SMD

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Arduino Compatible , Arduino Uno R3 SMD , 002535 , Arduino , A000073 , Microcontroller (MCU) , USB CDC , UART , GPIO , SPI , PWM , I2C , ADC

Specifications

General
Brand Arduino
Manufacturer model/SKU A000073
Norm conformity CE
FCC
RoHS
Features Microcontroller (MCU)
General physical appearance
Main color Green
Weight [g] 25
Dimension X [mm] 69
Dimension Y [mm] 53
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
Uno layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
(via USB)
6
(via VIN or DC-jack)
Maximum supply voltage [V DC] 20
(via VIN or DC-jack)
5
(via USB)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] 5
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 20
MCU
Manufacturer Microchip/Atmel
Chip series ATmega328P
Maximum clock frequency [MHz] 16
Number of cores 1
Internal memory
SRAM [KB] 2
Flash memory [MB] 0.031
EEPROM [B] 1024
EEPROM type Built-in
Communication
Hardware interface(s) ADC
I2C
PWM
SPI
GPIO
UART
USB CDC
Available GPIO pins 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
Number of IO-pins 20
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 6
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
ATmega16U2
Connectors
Power supply connector(s) USB-B female
DC-jack 5.5/2.1mm female
Pin header female (2.54mm)
IO-connector(s) USB-B female
Pin header male (2.54mm)
Pin header female (2.54mm)

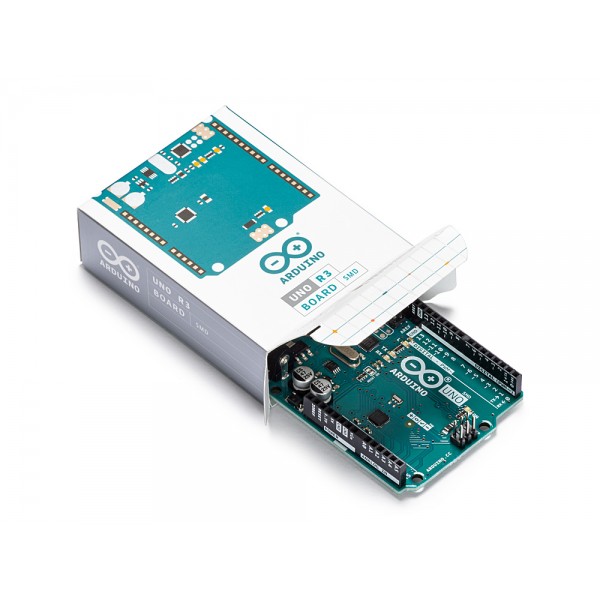

Package contents
Package contents 1x Development board
1x Mounting plate
