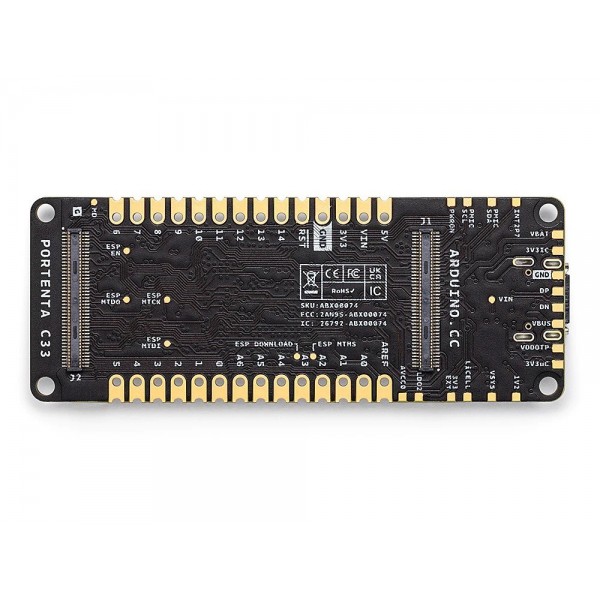

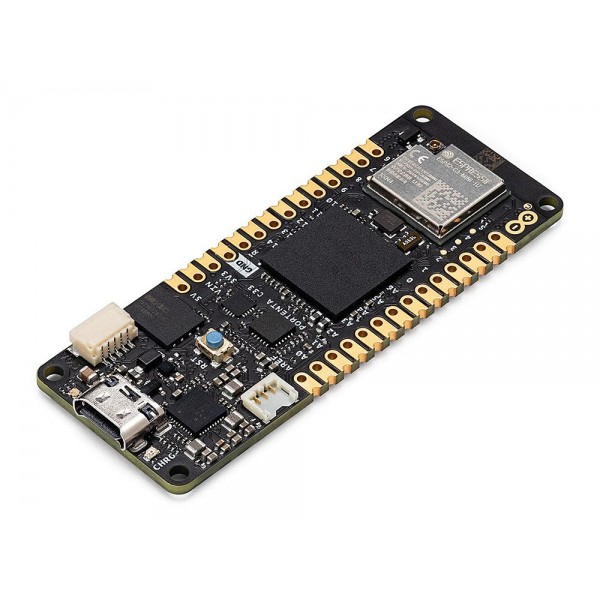

Arduino Portenta C33

Arduino Portenta C33
Arduino Portenta C33
Arduino Portenta C33
Arduino Portenta C33
Arduino Portenta C33
Arduino Portenta C33
Arduino Portenta C33
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006018
€67.00
Ex Tax: €55.37

The Arduino Portenta C33 is a powerful module designed for IoT applications. This microcontroller has the same form factor as the Portenta H7 and is also backward compatible, therefore shields from the Arduino Portenta line also fit on this module.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino Portenta C33

This product has 0 review(s) in total.

Specifications

General
Brand Arduino
Manufacturer model/SKU ABX00074
Norm conformity CE
FCC
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Battery charger
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 8
Dimension X [mm] 66
Dimension Y [mm] 25
Mounting options SMT
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 16
Maximum IO-pin sink current [mA] 16
MCU
Manufacturer Renesas Electronics
Chip series RA6M5
Maximum clock frequency [MHz] 200
Number of cores 1
Internal memory
SRAM [KB] 512
Flash memory [MB] 18
(2 internal +16 external)
EEPROM type Emulated
Communication
Hardware interface(s) ADC
CAN
I2C
I2S
SPI
GPIO
USB CDC
Ethernet
Native USB
USB to serial converter Integrated into microcontroller
Ethernet chip/SoC LAN8742A
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-C3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-C3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Battery circuit
Battery charger chip/SoC PF1550
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 1000
(lower setting recommended)
Adjustable charging current Yes
Protection circuit No
Connectors
Power supply connector(s) USB-C female
HRS DF40 80p female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) USB-C female
HRS DF40 80p female
Solder pin(s) (SMT)
JST-SH (compatible) male
Through hole solder pin(s) (2.54mm)
Battery connector(s) JST-ACH (compatible) male
Wi-Fi/Bluetooth antenna connector IPEX MHF 4 male

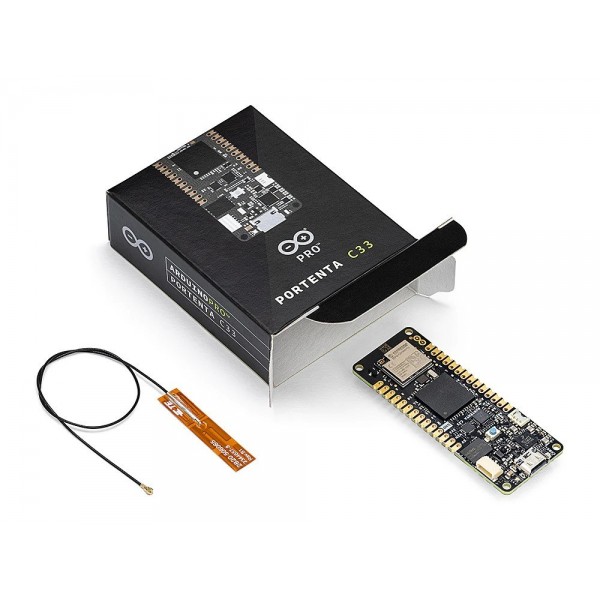

Package contents
Package contents 1x Arduino Portenta C33
1x Antenne
