Arduino Nano RP2040 Connect - Separate Headers

Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
Arduino Nano RP2040 Connect - Separate Headers
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003408
Based on 1 review(s) - Write a review
€29.50
Ex Tax: €24.38
Add to Cart
Add to wishlist

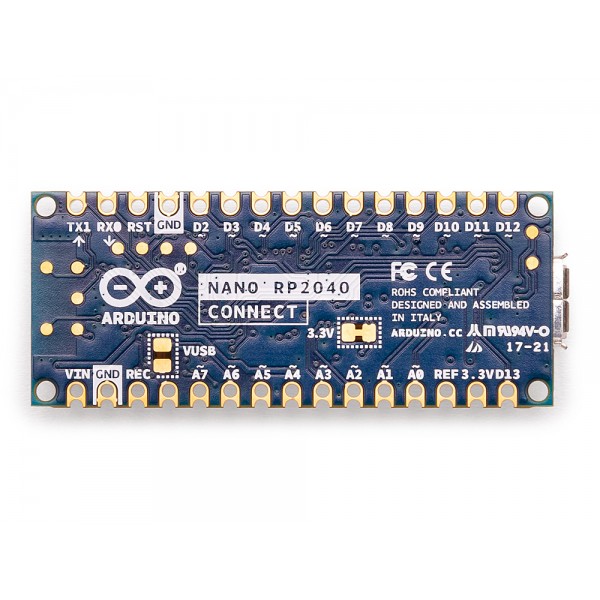

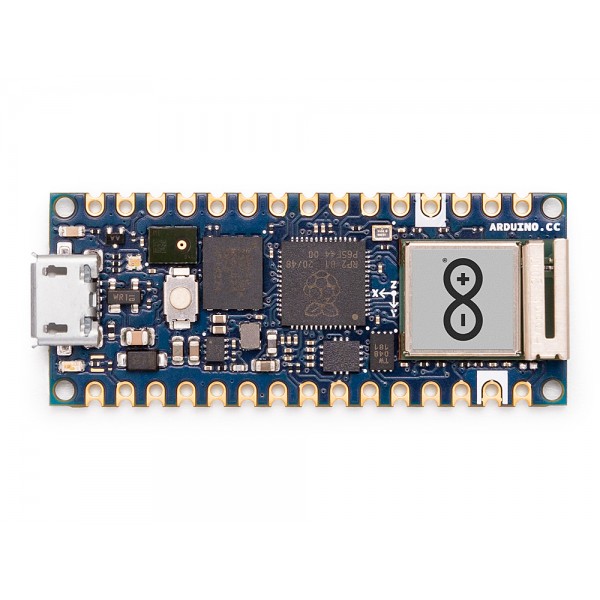

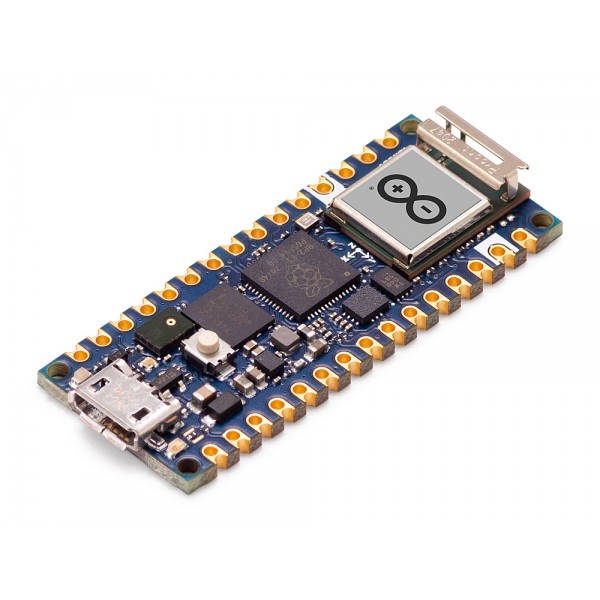

The Nano RP2040 Connect is a module with the shape of the well-known Arduino Nano, but with the RP2040 microcontroller from Raspberry Pi. In addition, this module also has a u-blox NINA-W102 on board for Wi-Fi and Bluetooth, which makes this one of the few "connected" RP2040 boards.

Note: This version of the Arduino Nano RP2040 Connect comes with separate headers.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino Nano RP2040 Connect - Separate Headers

This product has 1 review(s) in total.

Tags: Microcontroller Boards , Arduino Compatible , Arduino Nano RP2040 Connect - Separate Headers , 003408 , Arduino , ABX00052 , Microcontroller (MCU) , Acceleration sensor , Microphone , Gyroscope , ADC , I2C , PIO , PWM , SPI , GPIO , UART , USB CDC , Native USB , Wi-Fi , Bluetooth

Specifications

General
Brand Arduino
Manufacturer model/SKU ABX00052
Norm conformity CE
FCC
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Gyroscope
Microphone
Acceleration sensor
Microcontroller (MCU)
General physical appearance
Main color Blue
Weight [g] 5
Dimension X [mm] 43
Dimension Y [mm] 18
Mounting options SMT
Mounting hole(s)
Diameter mounting hole(s) [mm] 1.65
Form factor Module (general)
Nano layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 20
(via VIN)
5
(via USB)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 12
Maximum IO-pin sink current [mA] 12
MCU
Manufacturer Raspberry Pi
Chip series RP2040
Maximum clock frequency [MHz] 133
Number of cores 2
Internal memory
SRAM [KB] 264
PSRAM [MB] 0
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
PIO
PWM
SPI
GPIO
UART
USB CDC
Native USB
Available GPIO pins 0, A6, A7, 1, 4, 5, 6, 7, 12, 13, 15, 16, 17, 18, 19, 20, 21, 25, 26, 27, 28, 29
Number of IO-pins 22
Maximum available hardware PWM channels 16
Maximum available analog input pins (ADC) 8
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
(u-blox NINA-W102)
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
(u-blox NINA-W102)
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Acceleration sensor
Sensor chip/SoC LSM6DSOX
Degrees of freedom (DOF) 3
Maximum measuring range [±g] 16
Gyroscope
Sensor chip/SoC LSM6DSOX
Degrees of freedom (DOF) 3
Maximum measuring range [±°/s] 2000
Sound sensor
Sensor (chip(s)) MP34DT06JTR
Type Microphone
Sensor technology MEMS
Connectors
Power supply connector(s) Micro USB female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) Micro USB female
Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x Development board
2x Male pin header 15p
