Name: Arduino Nano R4 - ABX00143
SKU: 007135
Price: 15.25 EUR
Availability: InStock

Arduino Nano R4

New

Arduino Nano R4

Availability: Directly available from warehouse in Eindhoven
SKU: 007135

Based on 0 review(s) - Write a review

€15.25

Ex Tax: €12.60

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

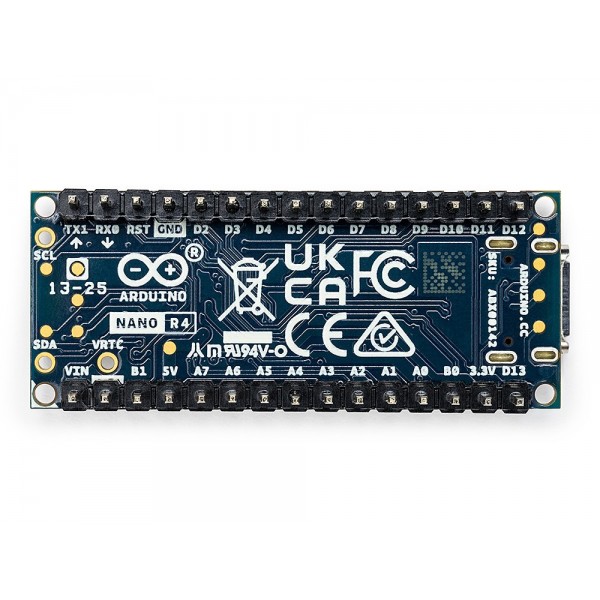

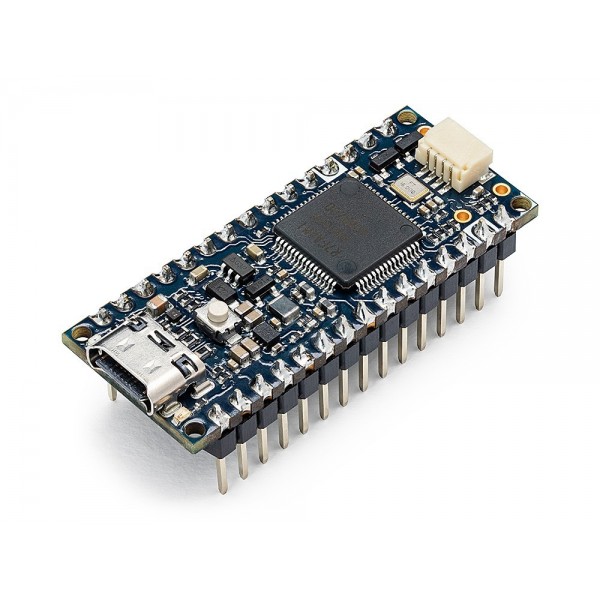

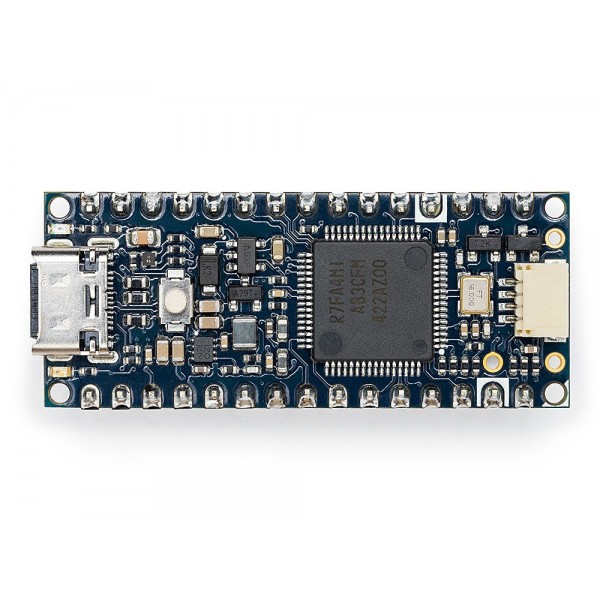

The Arduino Nano R4 board uses the RA4M1 microcontroller in the familiar Nano format. The board is virtually identical to the Uno R4 Minima, but in the Nano form factor. This makes it ideal for embedded development, industrial automation and custom hardware designs compact and ready for production.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Arduino Nano R4

Average Rating:

This product has 0 review(s) in total.

Datasheet: 007135_ABX00142-datasheet.pdf

Tags: Arduino Nano R4 , ABX00143 , Arduino Compatible

Specifications

General
Brand	Arduino
Manufacturer model/SKU	ABX00143
Norm conformity	RoHS CE FCC
Features	Microcontroller RTC
General physical appearance
Main color	Blue
Weight [g]	6
Dimension X [mm]	43
Dimension Y [mm]	18
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) Nano layout/shield
General electrical properties
Minimum supply voltage [V DC]	5 (via USB-C) 6 (via VIN)
Maximum supply voltage [V DC]	21 (via VIN) 5 (via USB-C)
Minimum IO-pin input voltage [V]	4
Maximum IO-pin input voltage [V]	5.8
IO-pin output voltage [V]	5
Maximum IO-pin source current [mA]	8
Maximum IO-pin sink current [mA]	8
MCU/SoC
Manufacturer	Renesas Electronics
Chip series	RA4M1
Maximum clock frequency [MHz]	48
Number of cores	1
Internal memory
SRAM [KB]	32
PSRAM [MB]	0
Flash memory [MB]	0.256
EEPROM [B]	8192
EEPROM type	Built-in
Communication
Hardware interface(s)	I2C SPI Native USB UART PWM ADC DAC GPIO USB CDC Opamp
Number of IO-pins	22
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	8
Maximum available analog output pins (DAC)	1
Maximum available hardware UART interfaces	1
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
RTC
Back-up battery/capacitor	None
Connectors
Power supply connector(s)	Pin header male (2.54mm) USB-C female
IO-connector(s)	JST-SH (compatible) male Pin header male (2.54mm) USB-C female

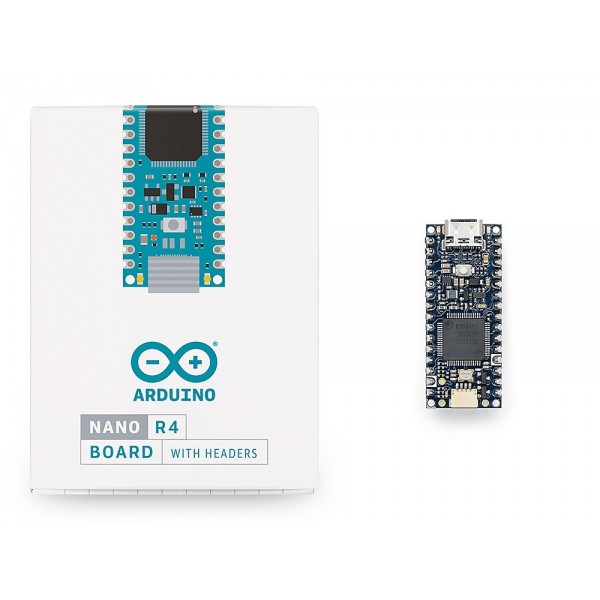

Package contents
Package contents	1x Nano R4
