Arduino Nano Every

Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
Arduino Nano Every
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002541
€15.00
Ex Tax: €12.40

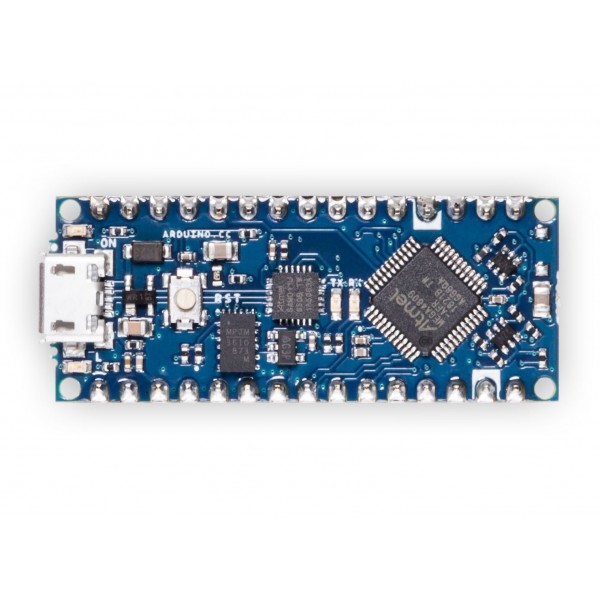

The Arduino Nano Every is a compact microcontroller board with an ATmega4809 processor. Compared to the Nano, the Nano Every has more storage space and more RAM, which means it can run larger programs with more variables.

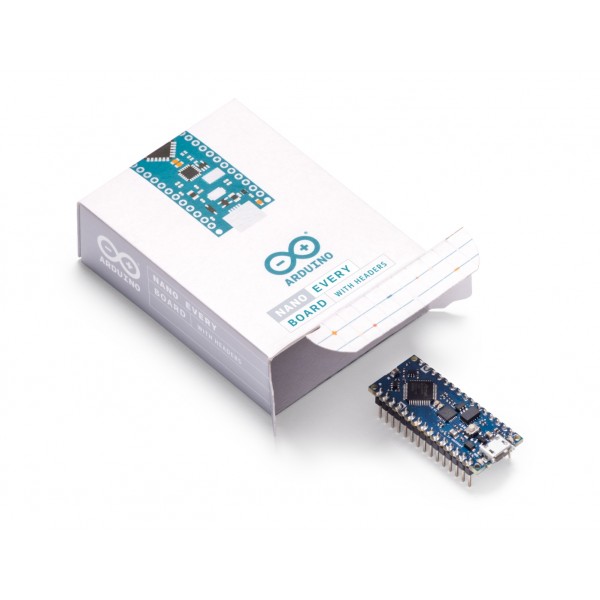

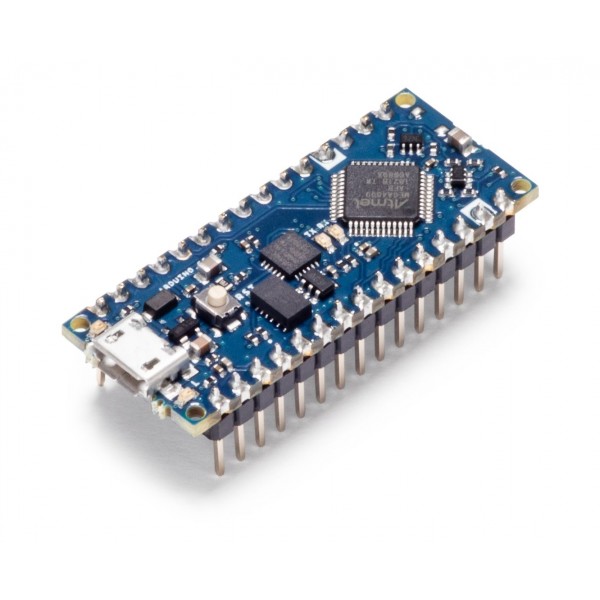

This version of the Nano Every comes with pre-soldered headers.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino Nano Every

This product has 0 review(s) in total.

Specifications

General
Brand Arduino
Manufacturer model/SKU ABX00033
Norm conformity CE
FCC
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Microcontroller (MCU)
General physical appearance
Main color Blue
Weight [g] 5
Dimension X [mm] 43
Dimension Y [mm] 18
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 1.6
Form factor Module (general)
Nano layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
(via USB)
7
(via VIN)
Maximum supply voltage [V DC] 21
(via VIN)
5
(via USB)
Minimum IO-pin input voltage [V] 5
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] 5
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 20
MCU
Manufacturer Microchip/Atmel
Chip series ATmega4809
Maximum clock frequency [MHz] 20
Number of cores 1
Internal memory
SRAM [KB] 6
Flash memory [MB] 0.047
EEPROM [B] 256
EEPROM type Built-in
Communication
Hardware interface(s) ADC
I2C
PWM
SPI
GPIO
UART
USB CDC
Comparator
Available GPIO pins 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21
Number of IO-pins 22
Maximum available hardware PWM channels 5
Maximum available analog input pins (ADC) 8
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter ATSAMD11D14
Connectors
Power supply connector(s) Micro USB female
Pin header male (2.54mm)
IO-connector(s) Micro USB female
Pin header male (2.54mm)
Package contents
Package contents 1x Development board
