Arduino Nano ESP32 - ESP32-S3

Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
Arduino Nano ESP32 - ESP32-S3
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005183
Based on 0 review(s) - Write a review
€21.00
Ex Tax: €17.36
10 or more €20.75
20 or more €20.50
Add to Cart
Add to wishlist

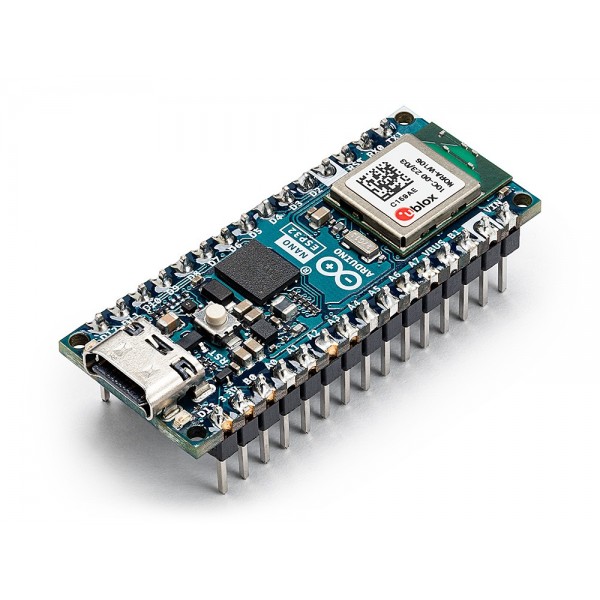

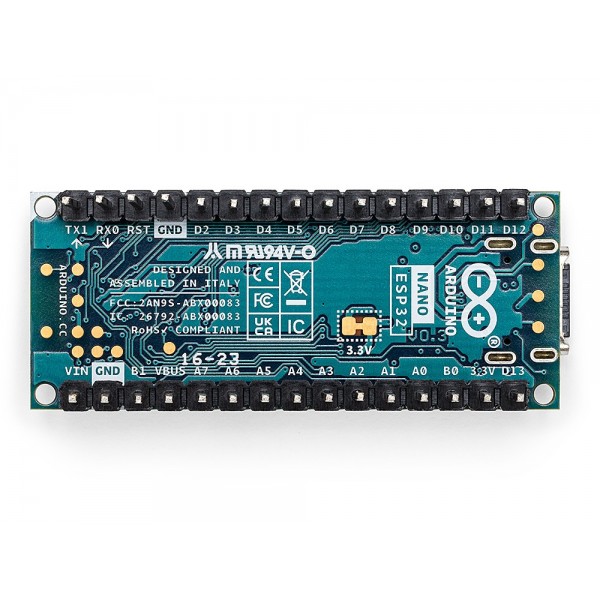

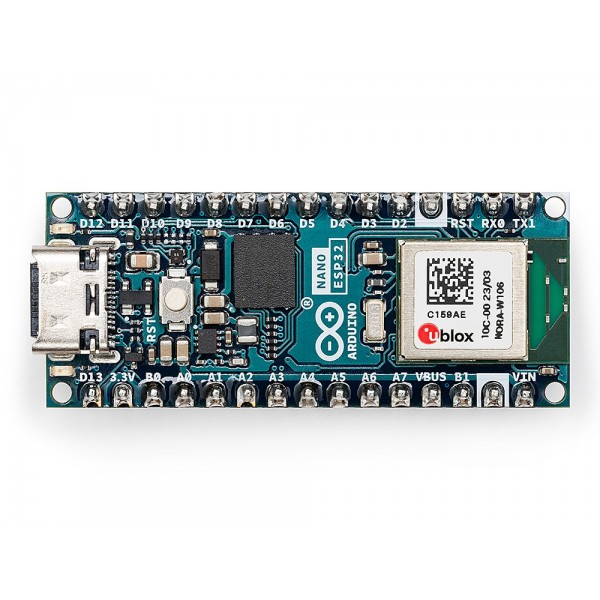

The Arduino Nano ESP32, is a microcontroller board based on the ESP32-S3 (U-blox Nora-W106) with the form factor of the original Arduino Nano.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino Nano ESP32 - ESP32-S3

This product has 0 review(s) in total.

Tags: Microcontroller Boards , With Bluetooth , Arduino Nano ESP32 - ESP32-S3 , 005183 , Arduino , ABX00083 , Microcontroller (MCU) , I2C , I2S , SPI , Native USB , UART , PWM , ADC , GPIO , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand Arduino
Manufacturer model/SKU ABX00083
Norm conformity CE
FCC
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Microcontroller (MCU)
General physical appearance
Main color Blue
Weight [g] 6
Dimension X [mm] 44
Dimension Y [mm] 18
Mounting options Pin headers
Mounting hole(s)
Form factor Module (general)
Nano layout/shield
Experiment PCB friendly Yes
General electrical properties
Minimum supply voltage [V DC] 5
(via USB)
6
(via Vin pin)
Maximum supply voltage [V DC] 21
(via Vin pin)
5
(via USB)
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 8
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Native USB
Number of IO-pins 24
Maximum available hardware PWM channels 8
Maximum available analog input pins (ADC) 16
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Connectors
Power supply connector(s) USB-C female
Pin header male (2.54mm)
IO-connector(s) USB-C female
Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x Arduino Nano ESP32
