Arduino Nano

Arduino Nano
Arduino Nano
Arduino Nano
Arduino Nano
Arduino Nano
Arduino Nano
Arduino Nano
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002533
Based on 0 review(s) - Write a review
€23.00
Ex Tax: €19.01
Add to Cart
Add to wishlist

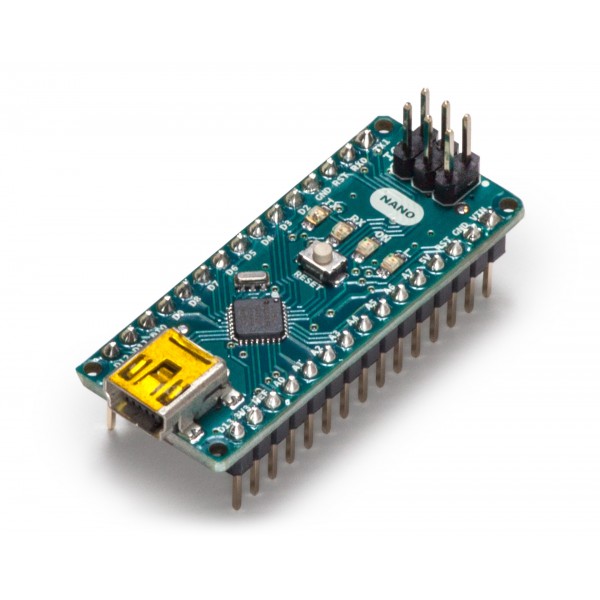

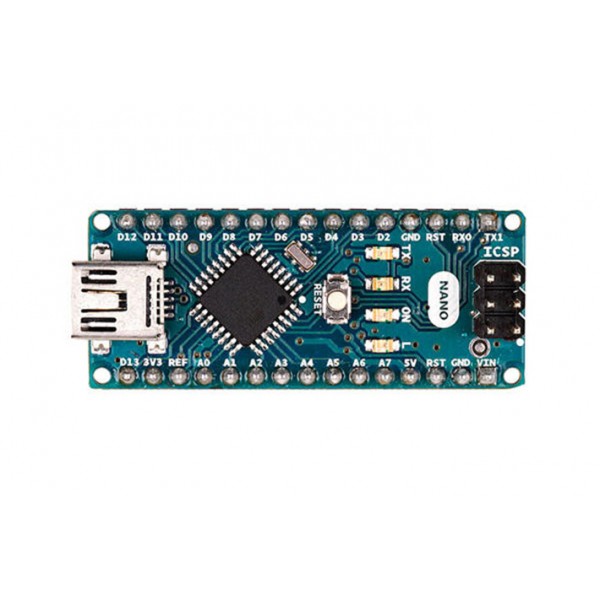

The Arduino Nano is a compact microcontroller board with an ATmega328 processor.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino Nano

This product has 0 review(s) in total.

Tags: Microcontroller Boards , Arduino Compatible , Arduino Nano , 002533 , Arduino , A000005 , Microcontroller (MCU) , Comparator , USB CDC , UART , GPIO , SPI , PWM , I2C , ADC

Specifications

General
Brand Arduino
Manufacturer model/SKU A000005
Norm conformity CE
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Microcontroller (MCU)
General physical appearance
Main color Green
Weight [g] 7
Dimension X [mm] 45
Dimension Y [mm] 18
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.5
Form factor Module (general)
Nano layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
(via USB)
7
(via VIN)
Maximum supply voltage [V DC] 12
(via VIN)
5
(via USB)
Minimum IO-pin input voltage [V] 5
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] 5
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 20
MCU
Manufacturer Microchip/Atmel
Chip series ATmega328P
Maximum clock frequency [MHz] 16
Number of cores 1
Internal memory
SRAM [KB] 2
PSRAM [MB] 0
Flash memory [MB] 0.031
EEPROM [B] 1024
EEPROM type Built-in
Communication
Hardware interface(s) ADC
I2C
PWM
SPI
GPIO
UART
USB CDC
Comparator
Available GPIO pins 0, A6, A7, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
Number of IO-pins 22
Maximum available hardware PWM channels 6
Maximum available analog input pins (ADC) 8
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 1
USB to serial converter FT232RL
Connectors
Power supply connector(s) Mini USB female
Pin header male (2.54mm)
IO-connector(s) Mini USB female
Pin header male (2.54mm)

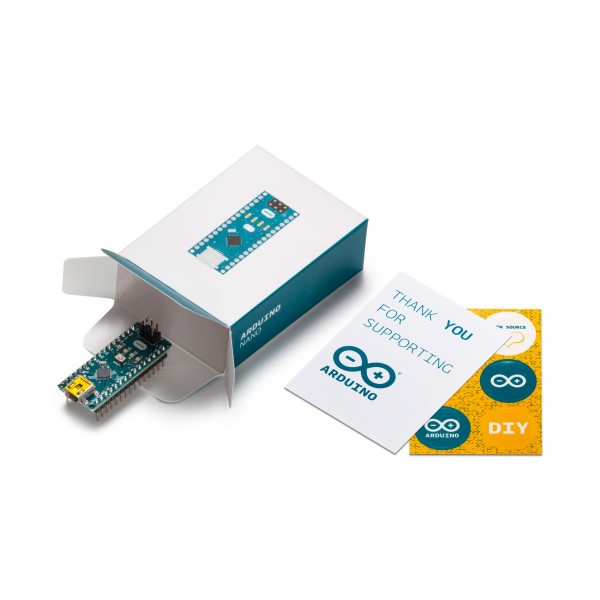

Package contents
Package contents 1x Arduino Nano
1x Sticker sheet
1x User manual
