Arduino GIGA R1 Wi-Fi

Availability: Directly available from warehouse in Eindhoven
SKU: 004957

Based on 0 review(s) - Write a review

€66.00

Ex Tax: €54.55

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

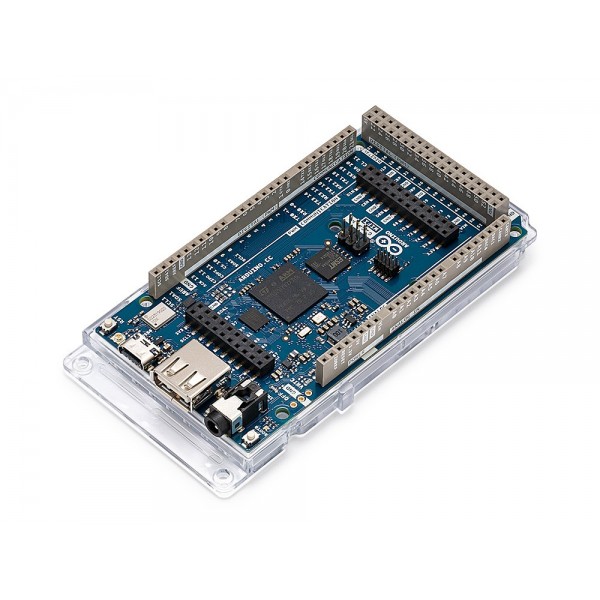

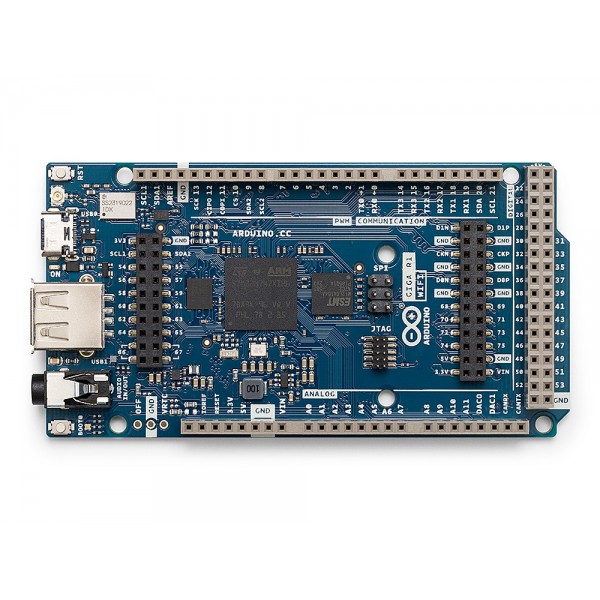

The Arduino GIGA R1 Wi-Fi is a much faster and more powerful microcontroller from Arduino, with the same form factor as the MEGA and DUE. In addition, the GIGA has a whopping 76 GPIO pins and has Wi-Fi and Bluetooth 5.1 support.

Note: The GIGA R1 runs on 3.3V, and is therefore not compatible with all MEGA and DUE shields.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino GIGA R1 Wi-Fi

Average Rating:

This product has 0 review(s) in total.

Tags: Arduino GIGA R1 Wi-Fi , ABX00063 , With Bluetooth

Specifications

General
Brand	Arduino
Manufacturer model/SKU	ABX00063
Norm conformity	CE FCC RoHS
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Microcontroller (MCU)
General physical appearance
Main color	Blue
Weight [g]	37
Dimension X [mm]	102
Dimension Y [mm]	53
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) Mega layout/shield
Experiment PCB friendly	No
General electrical properties
Minimum supply voltage [V DC]	5 (via USB-C or 5V pin) 6 (via VIN pin)
Maximum supply voltage [V DC]	24 (via VIN pin) 5 (via USB-C or 5V pin)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	8
Maximum IO-pin sink current [mA]	8
MCU
Manufacturer	STMicroelectronics
Chip series	STM32H7
Maximum clock frequency [MHz]	480 (32-bit Arm® Cortex®-M7 core) 240 (32-bit Arm® Cortex®-M4 core)
Number of cores	2
Internal memory
SRAM [KB]	1024
SDRAM [MB]	8
PSRAM [MB]	0
Flash memory [MB]	18 (2 + 16)
EEPROM type	Emulated
Communication
Hardware interface(s)	ADC DAC I2C I2S PWM SPI GPIO UART USB CDC Native USB
Number of IO-pins	76
Maximum available hardware PWM channels	12
Maximum available analog input pins (ADC)	12
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	4
Maximum available hardware I2C interfaces	3
Maximum available hardware SPI interfaces	2
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	LBEE5KL1DX-883
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	LBEE5KL1DX-883
Bluetooth version	5.1
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	USB-C female Pin header female (2.54mm)
IO-connector(s)	USB-A female USB-C female Audio jack 3.5mm female Pin header male (1.27mm) Pin header male (2.54mm) Pin header female (2.54mm)
Wi-Fi/Bluetooth antenna connector	IPEX MHF 1/uFL male
Package contents

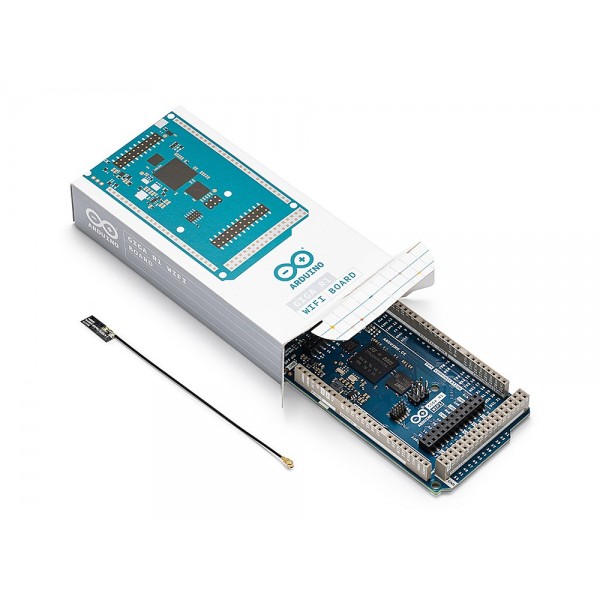

Package contents	1x Arduino GIGA R1 WIFI 1x Antenna for Wi-Fi and Bluetooth (MOLEX 206994) 1x Mounting plate
