Arduino GIGA Display Bundle
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007008
€135.00
Ex Tax: €111.57

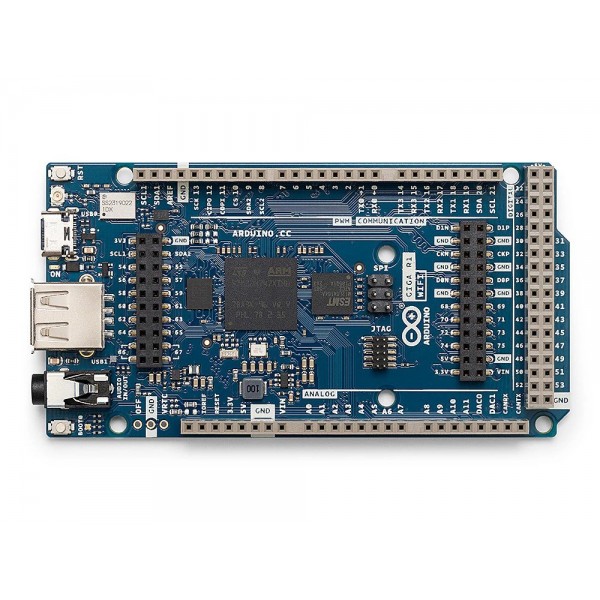

This bundle from Arduino consists of an Arduino GIGA R1 WiFi and a GIGA Display Shield.
Report this review.
Specifications
| General | |
| Brand | Arduino |
| Manufacturer model/SKU | AKX00075 |
| Norm conformity | RoHS CE FCC |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 65 |
| Features | Display Microcontroller Touchscreen Microphone Acceleration sensor Gyroscope Digital LED(s) |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 119 |
| Dimension X [mm] | 106 (GIGA Display Shield) 102 (Arduino GIGA) |
| Dimension Y [mm] | 80 (GIGA Display Shield) 53 (Arduino GIGA) |
| Mounting options | Pin headers Mounting hole(s) |
| Form factor | Module (general) Mega layout/shield Set/kit |
| Experiment PCB friendly | No |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (via USB-C or 5V pin) 6 (via VIN pin) |
| Maximum supply voltage [V DC] | 24 (via VIN pin) 5 (via USB-C or 5V pin) |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 8 |
| Maximum IO-pin sink current [mA] | 8 |
| MCU/SoC | |
| Manufacturer | STMicroelectronics |
| Chip series | STM32H7 |
| Maximum clock frequency [MHz] | 480 (32-bit Arm® Cortex®-M7 core) 240 (32-bit Arm® Cortex®-M4 core) |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 1024 |
| SDRAM [MB] | 8 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 18 (2 + 16) |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI Native USB UART PWM ADC DAC GPIO USB CDC |
| Number of IO-pins | 52 |
| Maximum available hardware PWM channels | 12 |
| Maximum available analog input pins (ADC) | 12 |
| Maximum available analog output pins (DAC) | 2 |
| Maximum available hardware UART interfaces | 4 |
| Maximum available hardware I2C interfaces | 3 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | LBEE5KL1DX-883 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | LBEE5KL1DX-883 |
| Bluetooth version | 5.1 |
| Supported Bluetooth standard(s) | LE Classic |
| Display | |
| Type | TFT |
| Screen diagonal [inch] | 3.97 |
| Number of pixels long side | 800 |
| Number of pixels short side | 480 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | GT911 |
| Touch type | Capacitive |
| Multi-touch support | Yes (5 points) |
| LED | |
| LED (driver) chip | IS31FL3197-QFLS2-TR |
| LED color | RGB |
| Acceleration sensor | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| Sound sensor | |
| Sensor (chip(s)) | MP34DT06JTR |
| Type | Microphone |
| Sensor technology | MEMS |
| SNR [dB] | 64 |
| Connectors | |
| Power supply connector(s) | Pin header female (2.54mm) USB-C female |
| IO-connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) USB-A female USB-C female Audio jack 3.5mm female Pin header male (1.27mm) |
| Wi-Fi/Bluetooth antenna connector | IPEX MHF 1/uFL male |
| Package contents | |

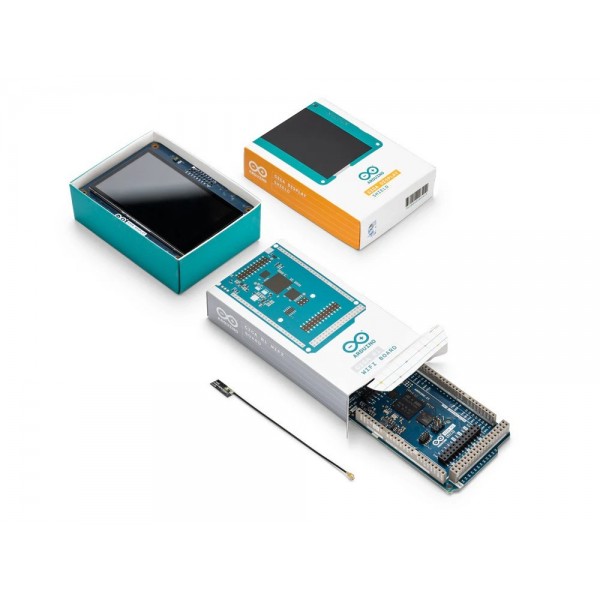

| Package contents | 1x Arduino GIGA R1 WIFI 1x Antenna for Wi-Fi and Bluetooth (MOLEX 206994) 1x GIGA Display Shield |
