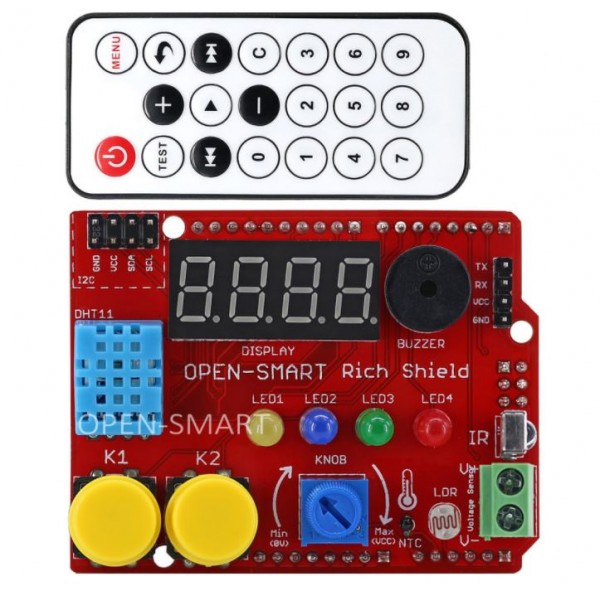

Open-Smart Rich Shield with Remote Control

This Rich Shield has various sensors, buttons, LEDs, a potentiometer, segment display and buzzer.

Specifications:

• Suitable for Uno, Mega, Leonardo and other 5V Arduino's that use the Uno R3 pin layout
• Works on 5V
• Has various parts to learn the basics with Arduino
• IR Remote Control is included
• Handy I2C and UART (RX/TX) pins available

The following parts with indicated pins are available on this shield:

• LED1 (yellow): D7
• LED2 (blue): D6
• LED3 (green): D5
• LED4 (red): D4
• Buzzer: D3
• LDR (light sensor): A2
• TM1637 Segment display with 4 characters and decimal points: D10 (CLK from TM1637), D11 (DIN  from TM1637)
• Two push buttons: K1 on D9, K2 on D8
• NTC (temperature sensor): A1
• Potentiometer: A0
• Voltage sensor (voltage divider): A3
• DHT11 Sensor: D12
• IR receiver: D2

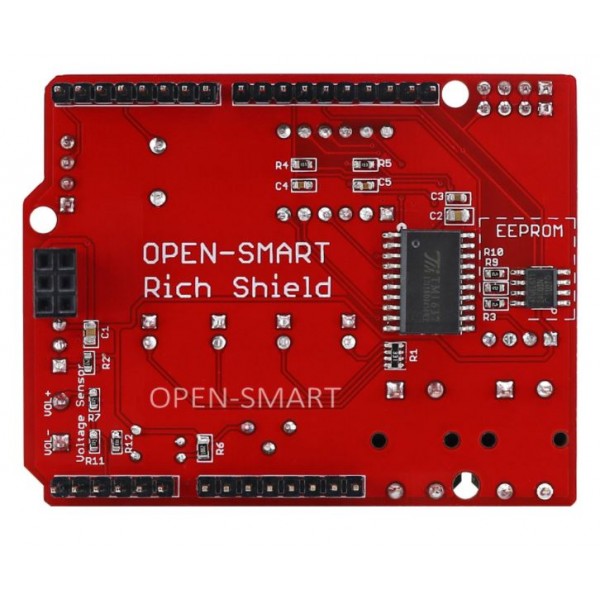

• 24C02 EEPROM: I2C pins (standard SCK and SDA pins)
