SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5

SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006005
€10.00
Ex Tax: €8.26

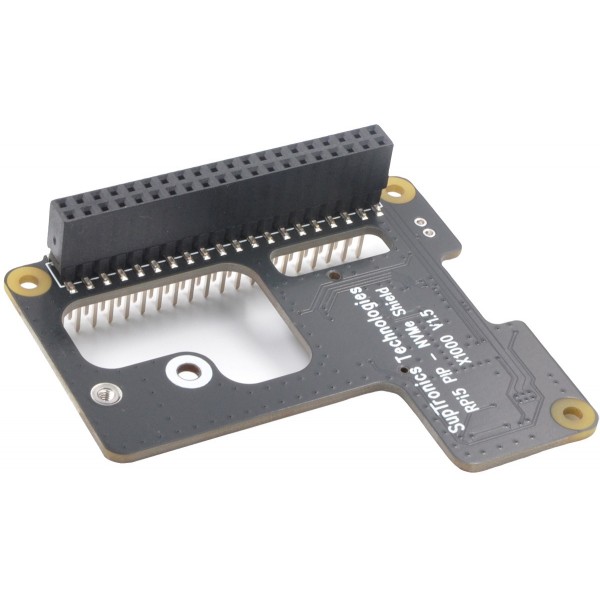

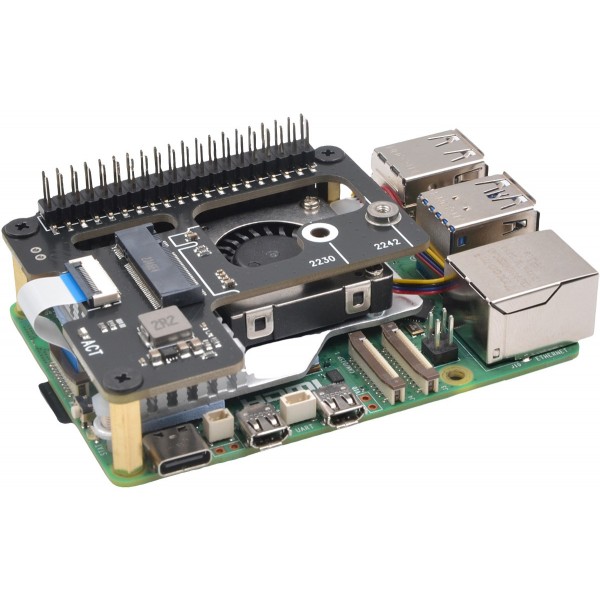

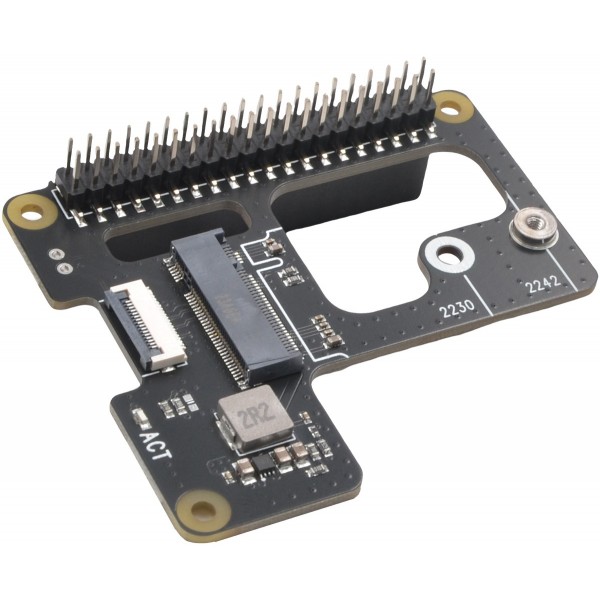

This PCIe to M.2 adapter board from SupTronics can be used to connect an NVMe M.2 SSD to the Raspberry Pi 5. The board has built-in vents for possible cooling fans.

See the following page for more information: Manufacturer page

See the following page for a tutorial: Tutorial

Note: No Raspberry Pi is included.

Please login or register to review

Reviews Over SupTronics X1000 PCIe to M.2 HAT - for NVMe SSD - for Raspberry Pi 5

This product has 0 review(s) in total.

Specifications

General
Brand SupTronics
Manufacturer model/SKU X1000
Model revision V1.5
General physical appearance
Main color Black
Weight [g] 17

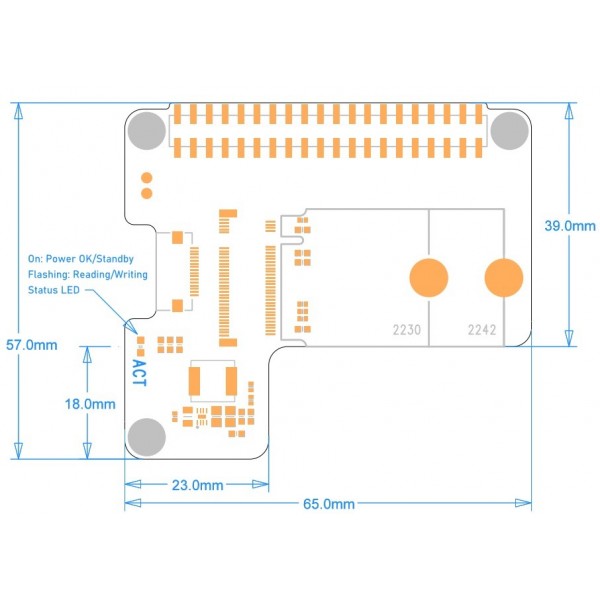

Dimension X [mm] 65
Dimension Y [mm] 57
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.6
Form factor Module (general)
Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) PCIe
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
IO-connector(s) M.2 M-key female
FFC female 16p 0.50mm
Compatible M.2 dimenions 2230
2242
Package contents
Package contents 1x X1000 Module
1x Flex cable
3x Spacer
6x Mounting bolt
1x SSD mounting bolt
