Seeed Studio Grove Base HAT for Raspberry Pi

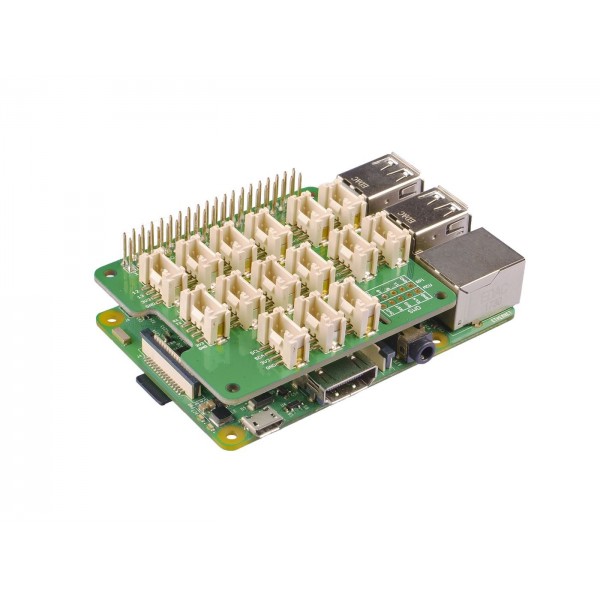

A Grove HAT for the Raspberry Pi 4. With this extension of your Raspberry Pi you have access to 15 different Grove connectors. With the help of a built-in MCU (STM32) you also provide the Raspberry Pi with an 8-channel ADC.

Specifications:

• Supply voltage: 3.3V DC (via Raspberry Pi)
• Signal voltage: 3.3V
• ADC:
  • Chip: STM32F030F4P6TR or MM32F031F6P6
  • Measuring range: 0 - 3.3V
  • Number of channels: 8
  • Resolution: 12 bit
  • Communication: I2C
  • I2C address: 0x04 or 0x08 (0x04 for STM32, 0x08 for MM32)

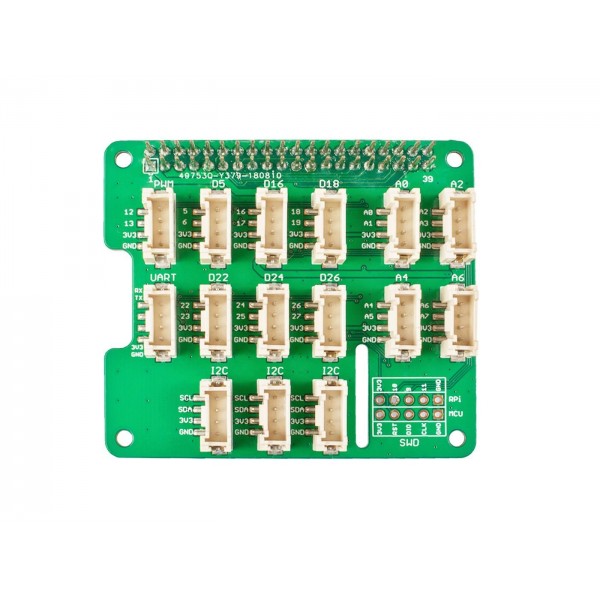

• 15 Grove interfaces:
  • 6x Digital
  • 4x Analog
  • 1x PWM
  • 3x I2C
  • 1x UART

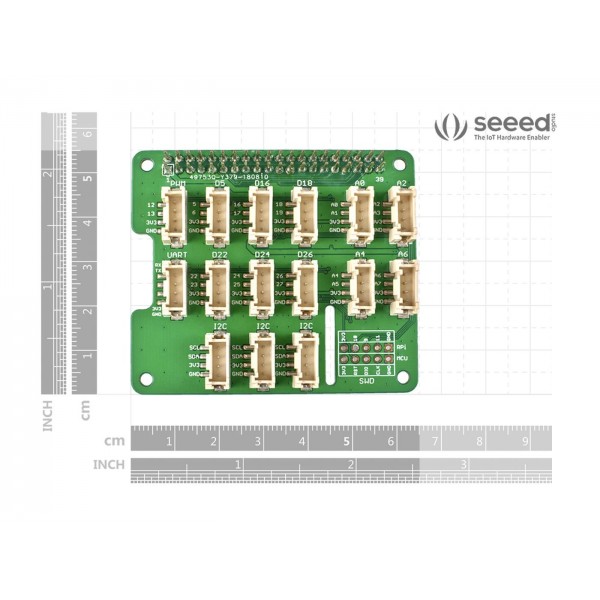

• Dimensions PCB: 66 x 55mm

Package contents:

• 1x Seeed Studio Grove Base HAT for Raspberry Pi
• 1x Mounting material

See the following page for more information: Seeed Studio Grove Base HAT for Raspberry Pi
