RP2040 SuperMini Expansion Board
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007213
€4.50
Ex Tax: €3.72
Your shopping cart is empty!

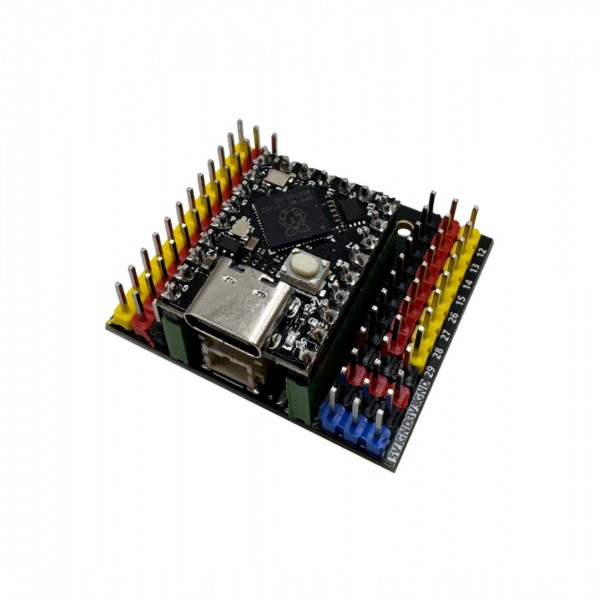

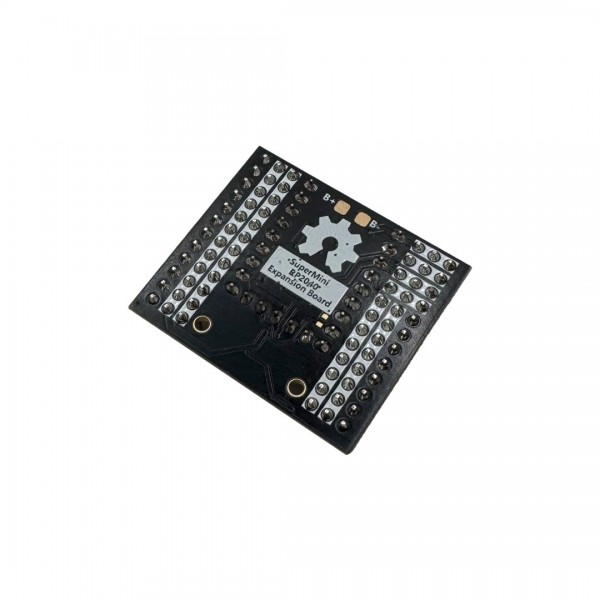

RP2040 SuperMini Expansion Board is an expansion board specially designed for RP2040 SuperMini Development Board. In addition to the convenient pins, the module also has a battery charger.
Note: No RP2040 SuperMini is included.
| General | |
| Brand | Nologo |
| Features | Battery charger |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 11 |
| Dimension X [mm] | 38 |
| Dimension Y [mm] | 33 |
| Mounting options | Pin headers Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 2.1 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 6 |
| Battery circuit | |
| Battery charger chip/SoC | LTH7R |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 100 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) |
| Battery connector(s) | JST-PH (compatible) male Wire solder pin(s)/pad(s) |
| Package contents | |
| Package contents | 1x Expansion Board |
