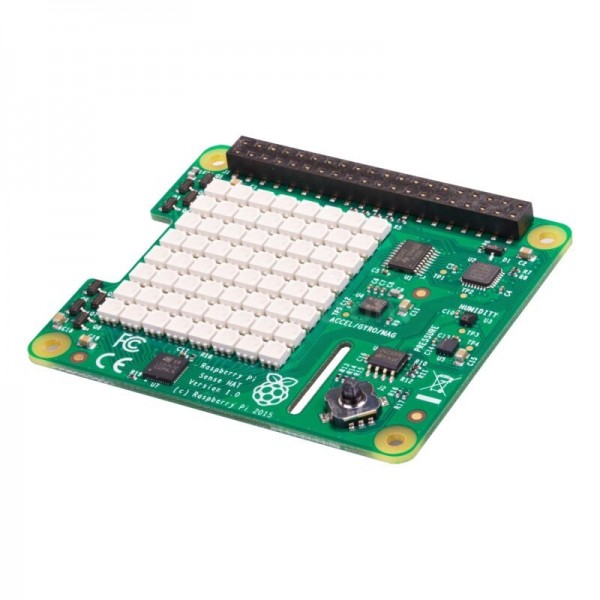

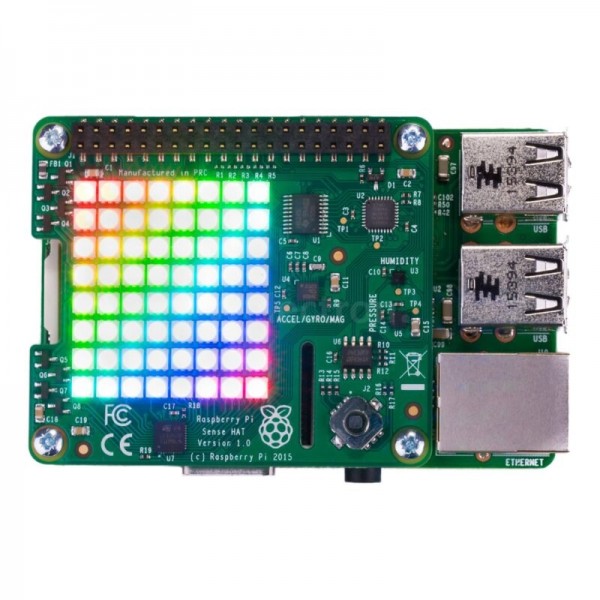

The Sense HAT is an extensive module with numerous sensors made for a Raspberry Pi single board computer (SBC). This V2 version has an additional light (color) sensor.

Note: Because the PCB becomes warm, the temperature sensors will not accurately measure the ambient temperature.

Note: No Raspberry Pi is included.

See the following page for more information: Wiki

See the following page for a tutorial: Tutorial

Please login or register to review

Reviews Over Raspberry Pi Sense HAT V2

Average Rating:

This product has 0 review(s) in total.

Tags: Raspberry Pi Sense HAT V2 , RPISENSEHATV2 , Adapter Boards

Specifications

General
Brand	Raspberry Pi
Model revision	V2
Norm conformity	RoHS CE FCC
Features	Temperature sensor Humidity sensor Light sensor Pressure sensor (gas/liquid) Acceleration sensor Magnetometer Gyroscope Joystick
General physical appearance
Main color	Green
Weight [g]	19
Dimension X [mm]	65
Dimension Y [mm]	56
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C SPI Digital
Temperature sensor
Sensor (chip)	HTS221
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	120
Smallest resolution [°C]	0.016
Accuracy [±°C]	0.5 (15 - 40°C) 1 (0 - 60°C)
Humidity sensor
Sensor (chip)	HTS221
Minimum measuring range [% R.H.]	0
Maximum measuring range [% R.H.]	100
Smallest resolution [%R.H.]	0.004
Accuracy [±%]	3.5 (20 - 80% R.H.) 5.0 (0 - 100% R.H.)
Pressure sensor
Sensor (chip)	LPS25HB
Suitable medium	Air
Minimum measuring range [hPa]	260
Maximum measuring range [hPa]	1260
Smallest resolution [hPa]	0.01
Accuracy [±hPa]	0.2 (with T = 20 - 60°C)
Light sensor
Sensor (chip)	TCS34725
Measurable light	Visible IR
Light sensor type	Color Light intensity
Acceleration sensor
Sensor chip/SoC	LSM9DS1
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	16
Gyroscope
Sensor chip/SoC	LSM9DS1
Degrees of freedom (DOF)	3
Maximum measuring range [±°/s]	2000
Maximum resolution [bit]	16
Magnetometer
Sensor (chip)	LSM9DS1
Type	Field strength sensor (numerical)
Degrees of freedom (DOF)	3
Maximum measuring range [mT]	1.6
Maximum resolution [bit]	16
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Package contents
Package contents	1x Raspberry Pi Sense HAT 8x Mounting bolt 4x Spacer 1x Female pin header 2x20p
